Single Table PCB Separator 1 station X:600mm Y:600mm Z:60mm Top side:15mm, Bottom side:45mm 0.5 ~ 2mm (It’s necessary to contac t Aurotek in advance for over 2mm ) Ø1 ~ Ø2 mm (Option: over Ø 2mm ) ±0.1mm ±0.02mm ±0.02mm …

100%1 / 20
TYPE
S330M / S168SW
S168SA
Weight
4 kg 7 kg
Accessory
Support wall 2 pcs
Support pin 30 pcs
Size
346(W) x 365mm(D) 465(W)x 540mm(D)
LCF; Down Cut; Carbide end mills
Overall Length (A): 38.2 ±0.30 mm
Shank Diameter (B): 3.175 mm
Cutting Length (C): 6 ±0.50 mm
Cutting Diameter (D): 1.00 1.20 1.50 1.60 2.00 mm
Fit majority PCB sizes and shapes which reducing the
species of specific jig to save the expense of tooling.
The customized jig could meet kinds of requirement
from customer to provide precision and efficiency
routing.
萬用治具可以調整搭配大部分PC板使用，如此可以減少治具的開發
費用及時間。
可依照客戶要求，製作客製化專用治具，並能提高
切割精度及效率。
多様な基板サイズ、形状に対応可能。専用治具の数を減らし、経費
削減になります。
お客様の要望に応じて、カスタマイズ治具を製
作可能。
AV AILABLE SIZE:
Ø 1.0 Ø1.2 Ø1.6 Ø2.0
支柱
Support Pin
SIZE:
Ø 1 ~ Ø2 mm
銑刀
Router Bit
Router Bit
活動支撐座
Pin Supporter
Universal Fixture
Customized Jig (Option)
14
Single Table PCB Separator
1 station
X:600mm Y:600mm Z:60mm
Top side:15mm, Bottom side:45mm
0.5 ~ 2mm (It’s necessary to contac
t
Aurotek in advance for over 2mm )
Ø1 ~ Ø2 mm (Option: over Ø 2mm )
±0.1mm
±0.02mm
±0.02mm
3(X,Y,Z)
X, Y: 750mm/sec Z: 325mm/sec
X, Y, Z: 100mm/sec
(it’s according to the specifi cation
o
Bit for the best speed setting)
High speed variable frequency mot
o
150W(Max. 58,000rpm)
Linear, Arc, Circular, U-curve, L-curv
e
3 axes (AC Servo motor)
Max.2 sections
Direct coordinate input or manual g
with 10X CCD camera
Standard
Standard
Windows XP
HDD
USB
TFT monitor + keyboard + mouse
Manual
3-Phase AC220V±5℅ 50/60Hz
[3HP Vacuum included]3kw,11A
Dry air 0.5 Mpa
1124x1939x1343+587mm (Signal To
w
794kg
90cm±5cm

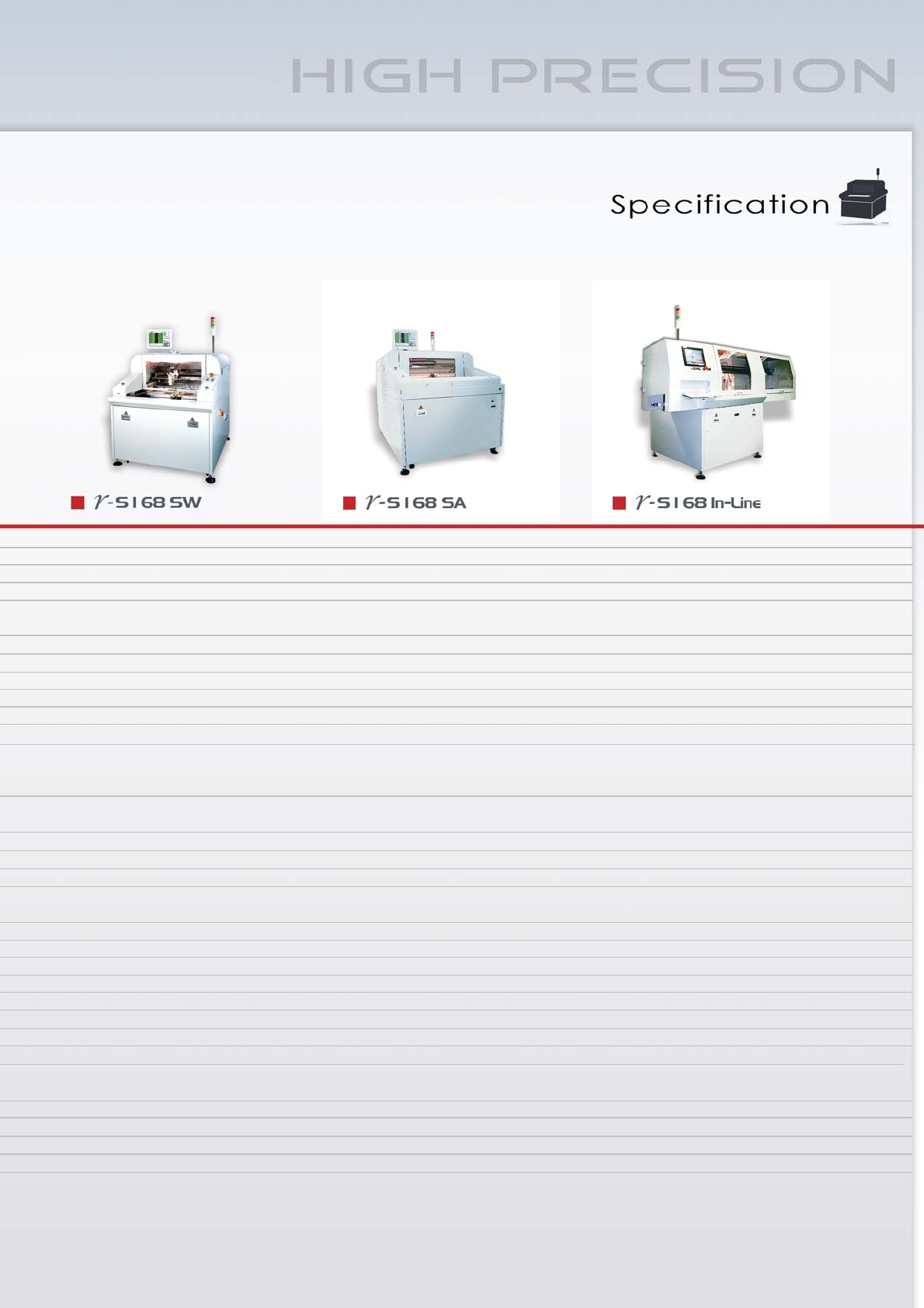

Twin Table PCB Separator
2 stations
X:330mm Y:330mm Z:15mm
Top side:15mm, Bottom side:45mm
0.5 ~ 2mm (It’s necessary to contact
Aurotek in advance for over 2mm )
Ø1 ~ Ø2 mm (Option: over Ø 2mm )
±0.1mm
±0.01mm
±0.02mm
4 (X,Y1,Y2,Z)
X, Y1,Y2: 1,000mm/sec Z: 750mm/sec
X, Y, Z: 100mm/sec
(it’s according to the specifi cation of
Bit for the best speed setting)
High speed variable frequency motor,
150W(Max. 58,000rpm)
Linear, Arc, Circular, U-curve, L-curve
4 axes (AC Servo motor)
Max.2 sections
Direct coordinate input or manual guiding
with 10X CCD camera
Standard
Standard
Windows XP
HDD
USB
TFT monitor + keyboard + mouse
Manual
3 Phase AC220V±5℅ 50/60Hz
[3HP Vacuum included]3kw,11A
Dry air 0.5 Mpa
1190x1039x1401+535 mm (Signal Tower)
390kg
90cm±5cm
Desktop PCB Separator
1 station
X:330mm Y:330mm Z:70mm
Top side:15mm, Bottom side:45mm
0.5 ~ 2mm (It’s necessary to contact
Aurotek in advance for over 2mm )
Ø1 ~ Ø2 mm(Option: over Ø 2mm )
±0.1mm
±0.02mm
±0.02mm
3 (X,Y,Z)
X, Y:500mm/sec Z: 100mm/sec
X, Y, Z: 100mm/sec
(it’s according to the specifi cation of
Bit for the best speed setting)
High speed variable frequency motor,
150W(Max. 58,000rpm)
Linear, Arc, Circular, U-curve, L-curve
3 axes (AC Servo motor)
Max.2 sections
Dedicated Board Computer
EEPROM
USB
TP-104E
Manual
Single phase AC220V±5% 50/60Hz
(vacuum excluded) 1.5kw, 6A
Dry air 0.5 Mpa
670x840x840mm
118kg
120cm±5cm
Setting Fixture
Working Area
Component Height
PCB Thickness
Routing Bit Diameter
Precision of Cutting
Positioning Accuracy
Positioning Repeatability
Number of Axes in use
Driving Speed (Max.)
Cutting Speed (Max.)
Spindle
Cutting possibilities
Motor of Axes
Routing Bit Sectioning
Route Planning
Safety Area Sensor
Tool Break Detection
Operating System
Program Storage
Program Backup
Man-Machine Interface
Conveyor Adjustment
PCB Loading/Unloading
Power Supply
Air
Dimensions (W x D x H)
Weight (approx.)
Working Hight
15
t
o
f
o
r,
e
uiding
w
er)
Twin Table PCB Separator
2 stations
X: 330mm Y: 330mm Z:60mm
Top side:15mm, Bottom side:45mm
0.5 ~ 2mm (It’s necessary to contact
Aurotek in advance for over 2mm )
Ø1 ~ Ø2 mm (Option: over Ø 2mm )
±0.1mm
±0.02mm
±0.02mm
3(X,Y,Z)
X, Y: 750mm/sec Z: 325mm/sec
X, Y, Z: 100mm/sec
(it’s according to the specifi cation of Bit for
the best speed setting)
High speed variable frequency motor,
150W(Max. 58,000rpm)
Linear, Arc, Circular, U-curve, L-curve
3 axes (AC Servo motor)
Max.2 sections
Direct coordinate input or manual guiding
with 10X CCD camera
Option
Option
Windows XP
HDD
USB
TFT monitor + keyboard + mouse
Manual
3-Phase AC220V±5℅ 50/60Hz
[3HP Vacuum included]3kw,11A
Dry air 0.5 Mpa
1124x1332x1343+587mm (Signal Tower)
525kg
90cm±5cm
Twin Table PCB Separator
2 stations
X:430mm Y:510mm Z:60mm
Top side:15mm, Bottom side:45mm
0.5 ~ 2mm (It’s necessary to contact
Aurotek in advance for over 2mm )
Ø1 ~ Ø2 mm (Option: over Ø 2mm )
±0.1mm
±0.02mm
±0.02mm
3 (X,Y,Z)
X, Y: 750mm/sec Z: 325mm/sec
X, Y, Z: 100mm/sec
(it’s according to the specifi cation of Bit
for the best speed setting)
High speed variable frequency motor,
150W(Max. 58,000rpm)
Linear, Arc, Circular, U-curve, L-curve
3 axes (AC Servo motor)
Max.2 sections
Direct coordinate input or manual guiding
with 10X CCD camera
Option
Option
Windows XP
HDD
USB
TFT monitor + keyboard + mouse
Manual
3-Phase AC220V±5℅ 50/60Hz
[5HP Vacuum included]4kw,15A
Dry air 0.5 Mpa
1341x1682x1343 +587mm (Signal Tower)
670kg
90cm±5cm
In-Line PCB Separator
2 stations
X:330mm Y:250mm Z:60mm
Top side:15mm, Bottom side:45mm
0.5 ~ 2mm (It’s necessary to contact Aurotek in
advance for over 2mm )
Ø1 ~ Ø2 mm (Option: over Ø 2mm )
±0.1mm
±0.02mm
±0.02mm
8 axes
X, Y: 750mm/sec Z: 325mm/sec
X, Y, Z: 100mm/sec
(it’s according to the specifi cation of Bit for
the best speed setting)
High speed variable frequency motor,
150W(Max. 58,000rpm)
Linear, Arc, Circular, U-curve, L-curve
8 axes (AC Servo motor)
Max.2 sections
Direct coordinate input or manual guiding with
10X CCD camera
Standard
Windows XP
HDD
USB
Touch Panel + keyboard + mouse
Automatic / Manual
Bridge Convey/ Robot
3-Phase AC220V±5℅ 50/60Hz
[3HP Vacuum included]3kw,11A
Dry air 0.5 Mpa
2337x1325x1659 +591mm (Signal Tower)
760kg
90cm±5cm
