Setting Fixture 2 stations Working Area X:330mm Y:250mm Z:60mm Component Height Top side:15mm, Bottom side:45mm PCB Thickness 0.5 ~ 2mm (It’s necessary to contact Aurotek in advance for over 2mm ) Routing Bit Diameter Ø1…
Full Auto In-Line Production
R
outing
D
evic
e
T
ouch
P
anel
The routing device equipped high
speed precision spindle motor to reduce
the reaction pressure from work piece.
Aurotek own designed PC-Based motion
control board provides linear, circular
motions to meet different kind of shape
of PCB.
Touch Panel (GUI)
Graphical User Interface
plus touch panel make the
operation easier.
使用高轉速精密主軸馬達，對於PC板的切割壓
力小，搭配自行開發之PC-Based控制器，具備
直線、弧、圓弧、U 型切割功能，可適合各種
形狀PC板。
視覺化的圖形介面，配合觸控螢幕使
操作更為簡便。
高速スピンドルモータを使用している為、基盤切断時による切断応力が減少
(約プレスの1/10)。また自社開発のコントローラにより、直線や曲線などの自
在な切断が可能。多種類の基盤形状に対応。
タッチパネル操作により視覚的に見ら
れ、なおかつ簡単に操作できます。
11
Setting Fixture
2 stations
Working Area
X:330mm Y:250mm Z:60mm
Component Height
Top side:15mm, Bottom side:45mm
PCB Thickness
0.5 ~ 2mm (It’s necessary to contact Aurotek
in advance for over 2mm )
Routing Bit Diameter
Ø1 ~ Ø2 mm (Option: over Ø 2mm )
Precision of Cutting
±0.1mm
Positioning Accuracy
±0.02mm
Positioning
Repeatability
±0.02mm
Number of Axes in use
8 axes
Driving Speed (Max.)
X, Y: 750mm/sec Z: 325mm/sec
Cutting Speed (Max.)
X, Y, Z: 100mm/sec
(it’s according to the specification of Bit for
the best speed setting)
Spindle
High speed variable frequency motor,
150W(Max. 58,000rpm)
Cutting Possibilities
Linear, Arc, Circular, U-curve, L-curve
Motor of Axes
8 axes (AC Servo motor)
Routing Bit Sectioning
Max.2 sections
Route Planning
Direct coordinate input or manual guiding
with 10X CCD camera
Safety Area Sensor
Tool Break Detection
Standard
Operating System
Windows XP
Program Storage
HDD
Program Backup
USB
Man-Machine Interface
Touch Panel + keyboard + mouse
Conveyor Adjustment
Automatic / Manual
PCB Loading/Unloading
Bridge convey/Robot arm
Power Supply
3 Phase AC220V±5℅ 50/60Hz
[3HP Vacuum included]3kw,11A
Air
Dry air 0.5Mpa
Dimensions(W x D x H)
2337x1325x1659 +591mm (signal tower)
Weight(approx.)
760kg
Working Height
90cm±5cm
T
win table to reduce the
t
ta
c
ct
t
t
t
i
m
m
e
L
oading
/
Unloading Syst
e
em
Two sliding tables provide
simultaneously in-and-out
movement to reduce the tack
time for better productivity.
Automatically adjust the width
of conveyer plus robot system
make the loading / unloading
system easier.
利用兩組滑台更換加工物件，減少
等待時間，增加產能。
使用電動調整/記憶寬度之輸送帶，
搭配自動取置機械手臂，使上下料
件更為方便迅速。
2個の治具が交互に連動することによ
り、基板交換時の待機時間が短縮さ
れ、生産効率が上がります。
対象加工基板毎のコンベア幅は、自
動調節機能により、ローダ、アンロ
ーダが速やかで便利です。
12

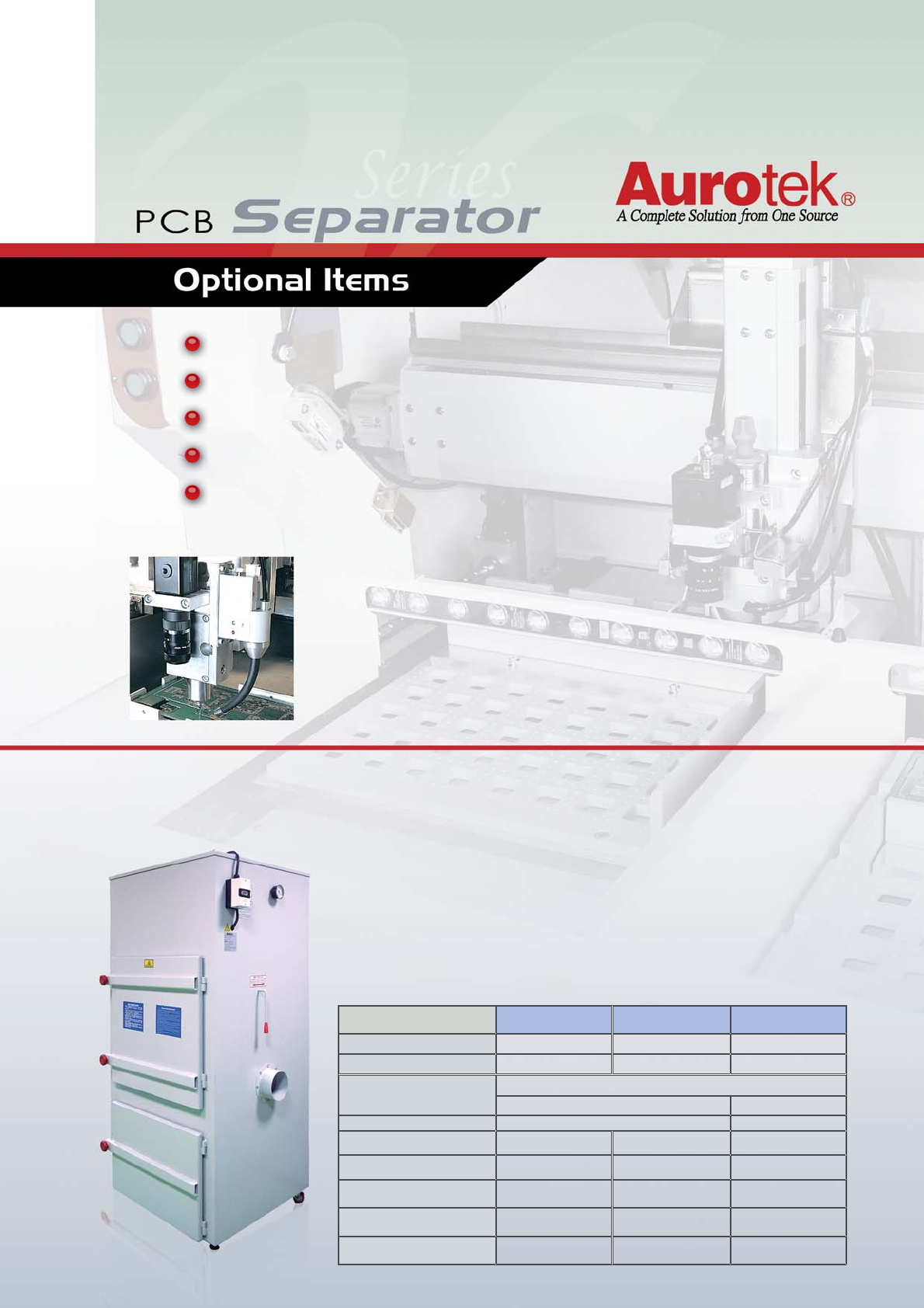

Type
YSF-V553 YSF-V553 ZETA YSF-V605
Dimensions (WxDxH)
665x635x1610mm 930x855x1000mm 780x665x1900mm
Weight
180 kg 174 kg 242 kg
Power supply
3 phase 50Hz / 60Hz 220V
2.2 kw 3.7 kw
Motor power
3 HP 5HP
Inlet wind speed
26 m/sec 32 m/sec 28 m/sec
Inlet wind capacity
28 m³/min 28m³/min 35 m³/min
Inlet wind pressure
300 mm-Ag 1800 mm-Ag 380 mm-Ag
Inlet Diameter
150mm 127mm 150mm
Outlet Diameter
203mm 150mm 203mm
Cutting the static electricity of the dust generated by PCB
during routing to reduce the dust to attach to PCB and increase
the efficiency of Vacuum Cleaner.
YSF vacuum cleaner is designed for γ-S168 & γ-S330M to collect the dust &
scrap generated by router. High horse power motor & high efficiency fan
to ensure the suction with excellent efficiency.
YSF系列集塵器是專門用來收集
γ
-S168/
γ
-S330M 切割過程中的粉塵、碎片。內部使用
高馬力馬達及高效率風扇，集塵效率高，並可使切割中之粉塵附著產品情況減少到最低。
可消除粉塵所帶之靜電，有效減少附著及增加集塵效果。
YSFシリーズ集塵機は、γ-S168及びγ-S330M機種の切断粉塵や破片を集塵する清掃機。
ハイパワモータと高性能ファンを使用しており、より確実な吸引清掃が可能。
粉塵の静電気を除去し、PCBへの付着を減少させ、集塵
効率を向上させます。
Pin-Point Ionizer
YSF Series Vacuum Cleaner
Easy operation & programming.
Twin table to reduce the tact time.
Available in linear and circular cutting to diminish restrictions of PCB design.
Auto on/off function to save the power of vacuum cleaner.
(except for r-S168 DT)
Low cutting stress to avoid the PCB from cracking.
