- 21 - 圖 2 - 35 PPS – Panelize Products l Select Products => QB 的 Program 給打? => View => MDF Modify => Move 這個 Board 到 X=84 ， Y=74 Modify => Rotate=180 Add (Bad Mark) => Board Reject => Board Reject …
- 20 -
l QT- Bottom side 裡的零件給刪除和QB -Top side 裡的零件給刪除 => Save
l Select Products => QT的 Program給打勾 => View 給打開 => Add (Bad Mark)
=> Board Reject => Board Reject => OK => 輸入Board的名字 => 輸入 Bad
Mark的座標位置 => Save
&
解說
:
J 如果聯板和Bad
Mark要共同使用時必
須先做 Bad Mark然後
在去做聯板
圖 2-34 PPS – Panelize Products

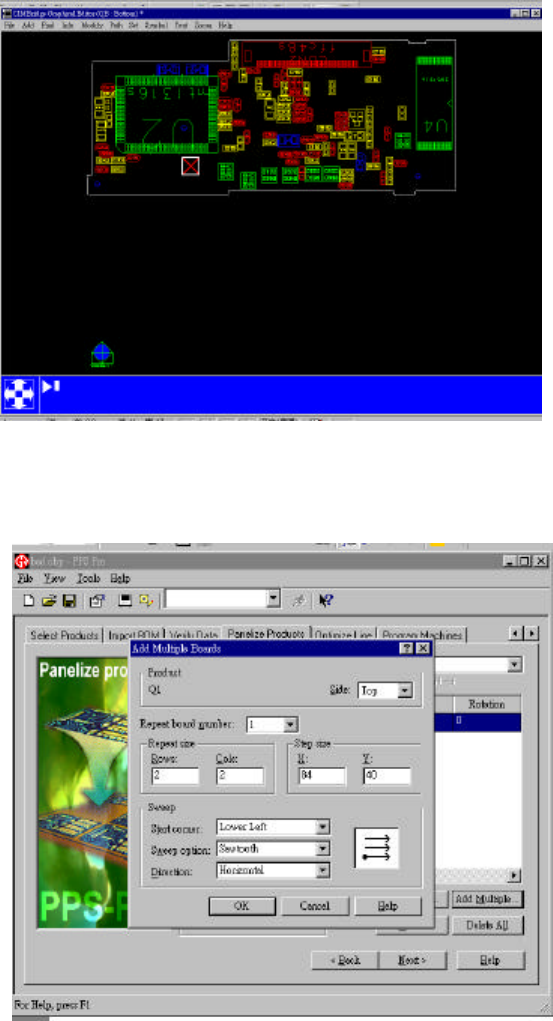

l Panelize Products => Add Multiple => Side => Repeat board number 是 1 =>
Repeat size (Rows = 2，Cols = 4) => Step size (X=84，Y=74) => Sweep => OK
- 21 -
圖 2-35 PPS – Panelize Products
l Select Products => QB的 Program給打? => View => MDF
Modify => Move 這個 Board到 X=84，Y=74
Modify => Rotate=180
Add (Bad Mark) => Board Reject => Board Reject => OK => 輸入 Board的名
字 => 輸入 Bad Mark的座標位置 => Save
圖 2-36 PPS – Panelize Products
l Add Multiple => Side => Repeat board number 是 1 => Repeat size (Rows = 2，
Cols = 4) => Step size (X=84，Y=74) => Sweep => OK
- 22 -
圖 2-37 PPS – Panelize Products
l Select Products => QB的 View 給打開 => 選擇全部 (從左上拉到右下) => Set
=> Board ID => 輸入 Board ID => OK => Save
圖 2-38 PPS – Panelize Products

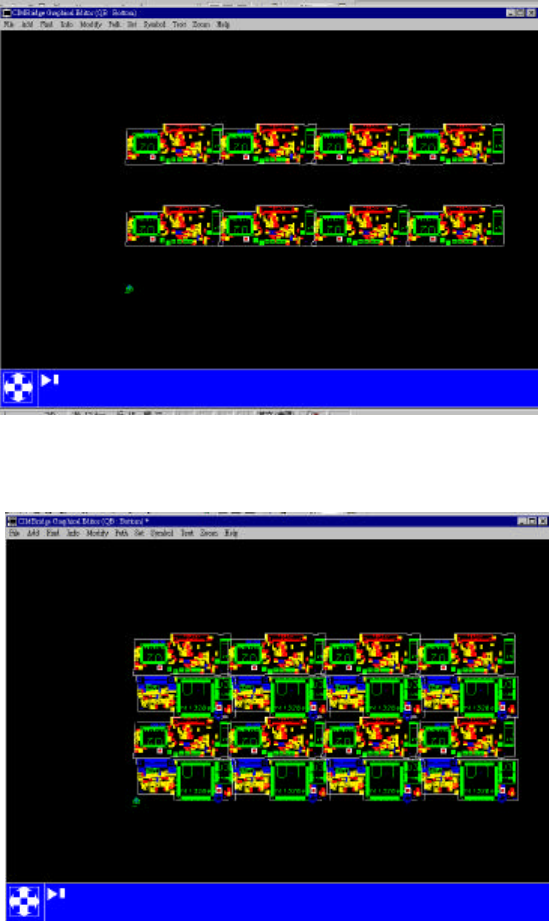

l Select Products => QB的 View 給打開 => Merge => 選擇QT.mdf => Would
you like a double side merge => No
& 解說:
J 當你結束了聯板,
記得要加上 Panel
outline, fiducial
mark 和 tooling
holes (
請參考
2.7.1)
J Top 和 Bottom
要結合在一起時,
Board ID 不可以一
樣
圖 2-39 PPS – Panelize Products
