INFINITY EX PRINT CARRIAGE MODULE MECHANICAL DETAIL Chapter Issu e 2 Aug 02 Technical Reference Manual 9.7 Guide Rails The print carriage assembly is tra v ersed across the screen via tw o linear guide rails. Both guide …
INFINITY
EX
PRINT CARRIAGE MODULE
MECHANICAL DETAIL
9.6 Technical Reference Manual Chapter Issue 2 Aug 02
Paste Dispenser
Mechanism Option
The paste dispenser option is only utilized when the machine is fitted with
squeegees, and provides an automated paste dispensing facility during print
operations. Further information is detailed in the Paste Dispenser System
chapter of this manual.
Breakout Board E The PCB breakout board E is the signal interface between the machine controller
and assemblies fitted to the print carriage. Socket descriptions are detailed in
the table below. Further information on each assembly can be found in the
relevant module chapter of this manual.
Figure 9-4 Breakout Board E
Socket/Plug
No.
Pin
No.
Description +12V
Pins
0V
Pins
EPL1 Input Signals from Machine Controller 1 ; 2 3 ; 12
ESK2 5 ProFlow Cassette Low 1 3
2 ProFlow Fitted 4 6
ESK3 5 Cartridge Horizontal 4 6
2 Cartridge Vertical 1 3
ESK4 2 Front Squeegee Home 1 3
5 Rear Squeegee Home / ProFlow Home 4 6
ESK5 2 Paste Carriage Home 1 3
ESK6 2 Cartridge Empty 1 3
Socket 4
(Squeegee/ProFlow
Home Sensors)
Socket 2
(ProFlow Fitted/
Paste Low Sensor)
Plug 1 (Machine Controller Input Signals)Socket 3 (Paste Cartridge Sensor)
Socket 5
(Paste Carriage
Home)
Socket 6
(Paste Cartridge
Empty)
INFINITY
EX
PRINT CARRIAGE MODULE
MECHANICAL DETAIL
Chapter Issue 2 Aug 02 Technical Reference Manual 9.7
Guide Rails The print carriage assembly is traversed across the screen via two linear guide
rails. Both guide rails are fixed in position to the machine printhead casting.
Carriage Rails The print carriage rails are a linear bearing type rail onto which the print carriage
is secured.
Print Carriage
Motor
The print carriage motor is a dc servo type motor with integral gearbox and
encoder. This motor is fitted at the rear right hand corner of the print carriage
rail system. The print carriage is driven through a pulley and timing belt system
located on the right hand side of the machine, (Drives and Sensors figure of this
chapter refers).
NOTE
Technical information on servo motors is detailed in the Sensors and Motors
chapter of this manual.
INFINITY
EX
PRINT CARRIAGE MODULE
DRIVES AND SENSORS
9.8 Technical Reference Manual Chapter Issue 2 Aug 02
DRIVES AND SENSORS
Motors
Sensors

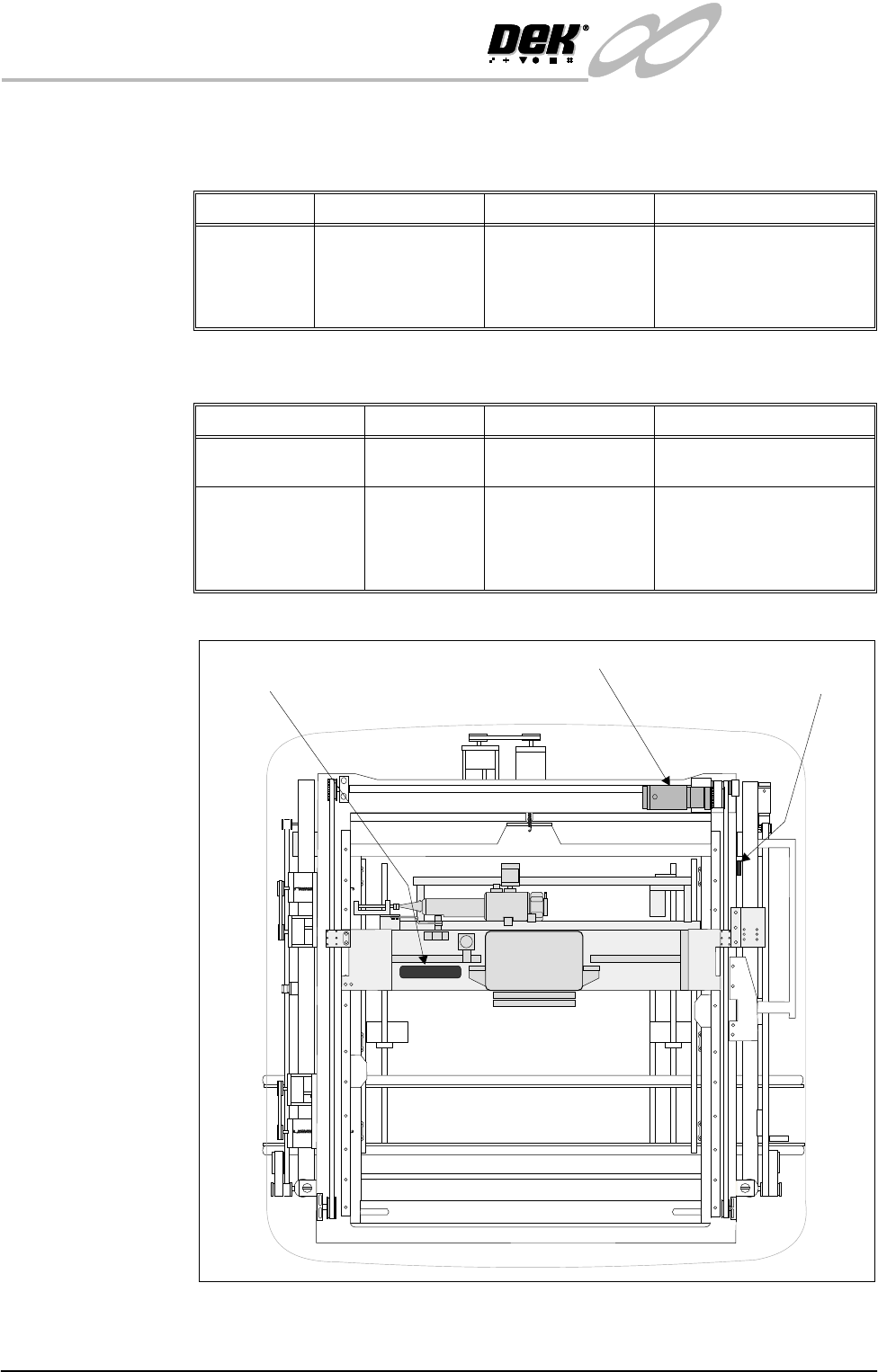

Figure 9-5 Drives and Sensors
Name Type Control Card Functional Description
Print Carriage
Motor
Servo Motor with
Gearbox (50:1) and
Encoder
Machine Controller
Servo Drive Card
Drives the print carriage
along the Y axis.
Provides feedback of the
print carriage position via an
integral encoder
Name Type Control Card Functional Description
Print Carriage Home Hall Effect NextMove DIG IN 6 Determines the home posi-
tion of the print carriage
Temperature &
Humidity (Optional)
Temp - NTC
resistive
Hum - Capac-
tive
NextMove
Temp - ADC2
0V - Analog gnd
Hum - ADC4
+12V - USR
Produces temperature and
Humidity information from
the printhead area of the
machine
Temperature and
Humidity Sensor
Print Carriage Motor Print Carriage
Home Sensor
