SmoothFlow Tapered Tips
31.8 mm
(1.25")
gauge color tapered tip rigid tip ID size qty/box
•
14 olive 7018052 7018049 1.60 mm (0.063") 50
•
16 grey 7018100 7018097 1.19 mm (0.047") 50
•
18 green 7018158 7018147 0.84 mm (0.033") 50
•
20 pink 7005009 7005006 0.58 mm (0.023") 50
•
22 blue 7018298 7005007 0.41 mm (0.016") 50
•
25 red 7018391 7018370 0.25 mm (0.010") 50
•
27 clear 7018417 − 0.20 mm (0.008") 50
www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide. www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.
16
General Purpose Precision Tips
EFD’s unique disposable stainless steel blunt end dispensing tips are used
for all kinds of applications, with all types of assembly fluids.
• Unique 360° SafetyLok thread ensures safe, positive attachment to barrel.
• Close tolerance overall length and internal diameters.
• Precision, polished burr-free passivated stainless steel tubing for consistent
fluid deposits.
• Color-coded hubs simplify size identification.
• Engineered hub flats for easy twist on, twist off.
• Packaged 50 pieces in see-through box for easy inventory control and
convenience.
EFD manufactures dispensing tips to meet special application requirements.
(See pages 26-27.)

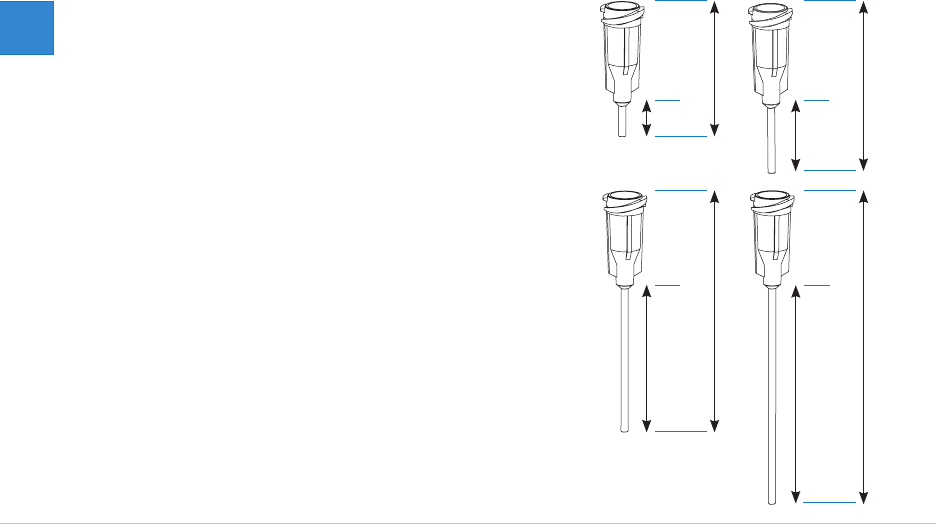

24.7 mm
(0.94")
6.3 mm
(0.25")
30.0 mm
(1.18")
12.7 mm
(0.50")
42.7 mm
(1.68")
25.4 mm
(1.00")
55.4 mm
(2.18")
38.1 mm
(1.50")
www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.
17
General Purpose Tips
gauge
color
6.44 mm
(0.25") tip
12.7 mm
(0.5") tip
25.4 mm
(1.0") tip
38.1 mm
(1.5") tip
ID size
qty/box
•
14 olive 7018029 7018043 7018032 7018035 1.54 mm (0.060") 50
•
15 amber − 7018068 7018059 7018062 1.36 mm (0.053") 50
•
18 green 7018107 7018122 7018110 7018113 0.84 mm (0.033") 50
•
20 pink 7018163 7018178 7018166 7018169 0.61 mm (0.024") 50
•
21 purple 7005005 7018233 7018222 7018225 0.51 mm (0.020") 50
•
22 blue 7018260 7018272 7018263 7018266 0.41 mm (0.016") 50
• 23 orange 7018302 7018314 7018305 7018308 0.33 mm (0.013") 50
•
25 red 7018333 7018345 7018336 7018339 0.25 mm (0.010") 50
•
27 clear 7018395 7005008 − − 0.20 mm (0.008") 50
•
30 lavender 7018424 7018433 − − 0.15 mm (0.006") 50
•
32 yellow 7018462 − − − 0.10 mm (0.004") 50
Note: Dispensing tip lengths are measured from the bottom of the hub to the end of the stainless steel tubing.
