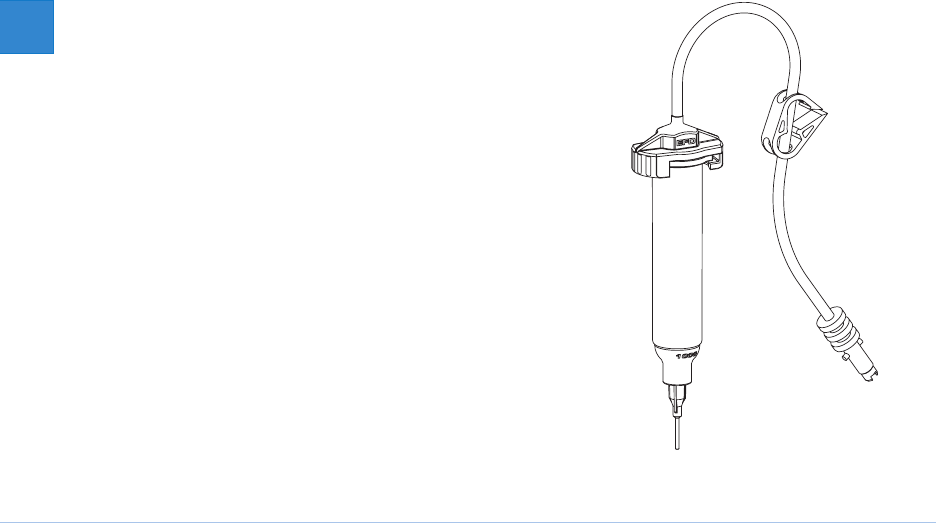

Optimum Dispensing System
EFD Optimum dispensing system components are uniquely designed for safe
industrial use, and are produced by EFD to the highest quality standards.
Using the advanced Optimum component system ensures precise fluid
deposit control.
• SnapLok
™
barrel adapter design securely engages all EFD syringe
barrels. The lightweight, flexible tubing allows for easy mobility.
• Industrial grade, ZeroDraft
™
barrels and SmoothFlow
™
pistons are molded
by EFD for close tolerance fit, providing the most advanced technology
for controlled fluid application.
• Unique 360° SafetyLok
™
thread ensures safe, positive tip attachment to
the syringe barrel. Hub flats are engineered for easy twist on, twist off.
Note: All EFD components are manufactured silicone-free to prevent
fluid contamination.
www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.
5
No drip or ooze.
For Thin Fluids
Air Pressure OFFAir Pressure ON
For Thick Fluids
For Watery-thin Fluids
Fumes cannot
escape.
SmoothFlow
piston prevents
fluid back-flow.
Blue LV
Barrier
™
piston for
improved control of very low
viscosity fluids.
Exact, consistent
deposits. No drips.
Optimum Dispensing System
www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide. www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.
6

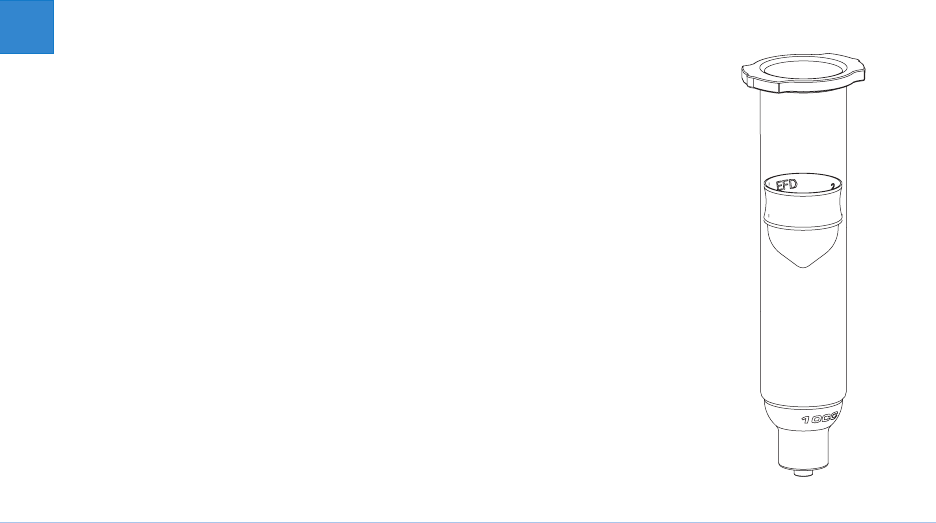

Syringe
Barrel & Piston Sets
Make dispensing easy, safe, and more controlled by using industrial ZeroDraft straight-wall
syringe barrels with the unique double-wiper SmoothFlow pistons.
• Ensures controlled, consistent fluid application.
• Prevents dripping and oozing of thick, non-leveling fluids.
• Prevents dripping of watery liquids and accidental back-flow into the dispenser.
• Makes syringe barrel loading easier.
• Prevents harmful fumes from being sucked back into the dispenser and entering the
workplace environment.
Whether you are using thick, medium, or low viscosity fluids, the unique double-wiper
pistons make your barrel loading and dispensing easy, clean, and accurate.
For convenience in ordering and inventory control, we package equal numbers of syringe
barrels and pistons in easy access boxes. Within each box, syringe barrels and pistons
are stored in antistatic bags to protect against contamination.
