PTFE-lined Crimped Tips
EFD’s unique TLC tips provide non-clogging features with restricted flow to simplify
micro-deposits of very low viscosity fluids.
• Inert PTFE lining resists clogging when using cyanoacrylates.
• Will not scratch or puncture fragile surfaces because the PTFE lining protrudes
beyond the end of the stainless steel tube.
• Provides better dispensing control when making microdots of watery fluids.
• 360° SafetyLok thread ensures safe, positive attachment to barrel.
• Color-coded hubs simplify size identification.
• Engineered hub flats for easy twist on, twist off.
• Packaged 50 per see-through box for easy inventory control and convenience.
PTFE-coated Tips
Controls wicking to stop drips for optical media applications.
www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.
21
PTFE Tips
PTFE-lined Tips
PTFE-coated Tips

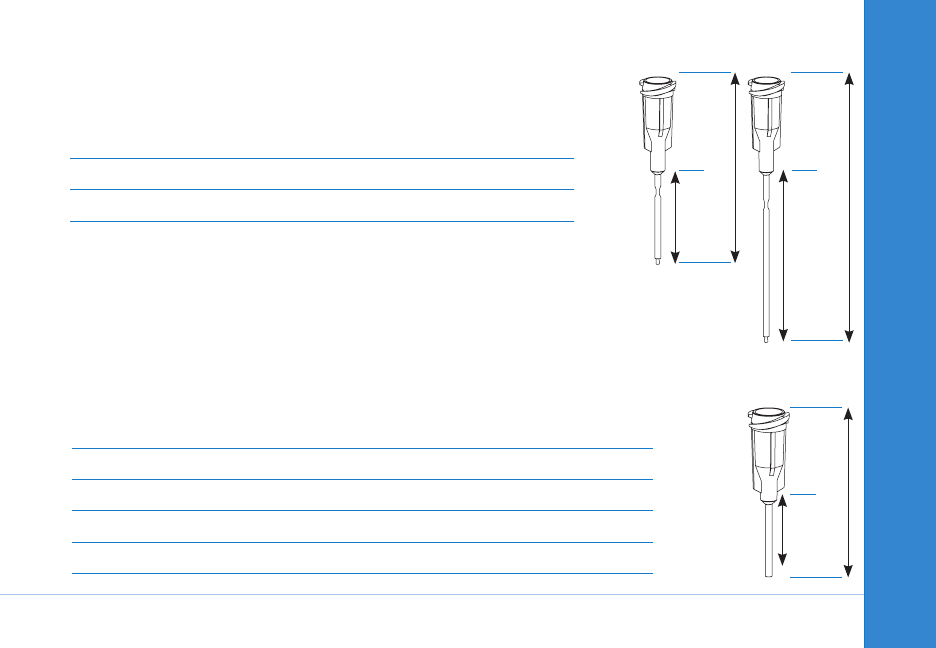

30.0 mm
(1.18")
12.7 mm
(0.50")
33.2 mm
(1.308")
15.8 mm
(.621")
47.0 mm
(1.85")
29.5 mm
(1.16")
color
12.7 mm (0.5")
lined tip
25.4 mm (1.0")
lined tip
crimp ID
qty/box
•
grey 7018256 7005003 0.51 mm (0.020") 50
•
pink 7018388 7005004 0.30 mm (0.012") 50
gauge
color
12.7 mm (0.5")
coated tip
ID
OD
qty/box
•
21 purple 7018243 0.51 mm (0.020") 0.84 mm (0.033") 20
•
22 blue 7018290 0.41 mm (0.016") 0.74 mm (0.029") 20
• 23 orange 7018326 0.33 mm (0.013") 0.66 mm (0.026") 20
•
25 red 7018359 0.25 mm (0.010") 0.53 mm (0.021") 20
www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide. www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.
MicroDot Tips
Ceramic MircoDot tips feature a 37 ga ceramic cannula that is compatible with fine particle-filled
materials and can produce precise micro-deposits as small as 100 μm.
• Tapered inner diameter reduces back pressure and ensures consistent fluid deposit and cutoff.
• Reduced back pressure to ensure full deposit is dispensed.
• Longer dispense life, even when dispensing abrasive, particle-filled materials.
Ceramic MicroDot Tips
gauge color PP hub SS hub ID qty/box
37 silver − 7364386 0.05 mm (0.002") 1
