General Purpose Tips
gauge
color
6.44 mm
(0.25") tip
12.7 mm
(0.5") tip
25.4 mm
(1.0") tip
38.1 mm
(1.5") tip
ID size
qty/box
•
14 olive 7018029 7018043 7018032 7018035 1.54 mm (0.060") 50
•
15 amber − 7018068 7018059 7018062 1.36 mm (0.053") 50
•
18 green 7018107 7018122 7018110 7018113 0.84 mm (0.033") 50
•
20 pink 7018163 7018178 7018166 7018169 0.61 mm (0.024") 50
•
21 purple 7005005 7018233 7018222 7018225 0.51 mm (0.020") 50
•
22 blue 7018260 7018272 7018263 7018266 0.41 mm (0.016") 50
• 23 orange 7018302 7018314 7018305 7018308 0.33 mm (0.013") 50
•
25 red 7018333 7018345 7018336 7018339 0.25 mm (0.010") 50
•
27 clear 7018395 7005008 − − 0.20 mm (0.008") 50
•
30 lavender 7018424 7018433 − − 0.15 mm (0.006") 50
•
32 yellow 7018462 − − − 0.10 mm (0.004") 50
Note: Dispensing tip lengths are measured from the bottom of the hub to the end of the stainless steel tubing.
www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide. www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.
18
Flexible Polypropylene Tips
EFD’s unique flexible inert tips provide several important features:
• Provide easy dispensing access into hard-to-reach spots for gluing, lubricating, and filling.
• Use to “drag” tip along edges and around corners for painting or solvent bonding.
• Ideal for wiping over a surface where you need to spread a fluid.
• Will not scratch or puncture fragile surfaces.
• Resists clogging.
• Available in two lengths.
• Unique 360° SafetyLok thread ensures safe, positive attachment to barrel.
• Color-coded hubs simplify size identification.
• Engineered hub flats for easy twist on, twist off.
• Packaged 50 pieces in see-through box for easy inventory control and convenience.
www.nordsonefd.com info@nordsonefd.com 800-556-3484 Sales and service of Nordson EFD dispensing systems are available worldwide.
19
Flexible Polypropylene Tips

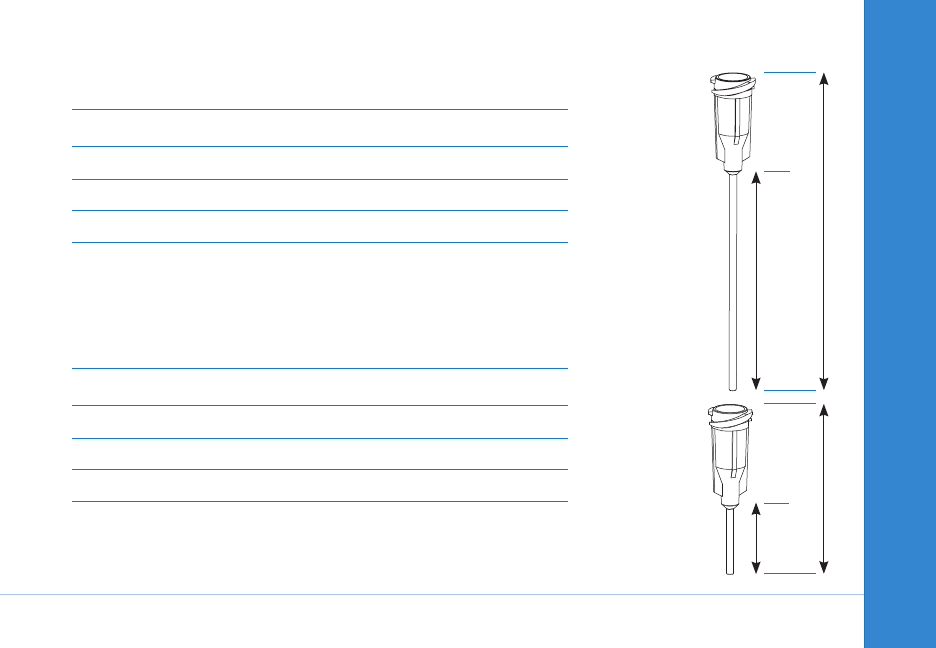

30.0 mm
(1.18")
12.7 mm
(0.50")
56.1 mm
(2.21")
38.6 mm
(1.52")
gauge color
38.1 mm (1.5")
flexible tip ID size qty/box
•
15 amber 7018080 1.25 mm (0.049") 50
•
18 green 7018138 0.84 mm (0.033") 50
•
20 pink 7018201 0.48 mm (0.019") 50
•
25 red 7018362 0.36 mm (0.014") 50
gauge color
12.7 mm (0.5")
flexible tip
ID size qty/box
•
15 amber 7018085 1.25 mm (0.049") 50
•
18 green 7018143 0.84 mm (0.033") 50
•
20 pink 7018205 0.48 mm (0.019") 50
•
25 red 7018366 0.36 mm (0.014") 50
