Installation Manual 4 Installation of SIPLACE Pro and possible Setup Types

SIPLACE Pro 12.0 Edition 12/2014

Step 4

In the "Select SQL-Server" dialog box you enter the information required to connect to the SQL

Server and database.

In case a SIPLACE Pro database already exists, the integrity of the database will be checked now.

If the check results in error messages, these messages will be displayed and the setup cannot

continue with this database. Only after selecting another database by choosing another SQL

server instance or after restoring the database in an error-free state setup can continue.

Fig. 4.3 - 5 "Select SQL-Server" dialog box - in case a database exists

 Enter the "Password for the SQL Server user "sa", i.e. the SQL server system administra-

tor.

Note

If you installed the database using Support Media and did not configure a custom password, the

password for the sa user will be the SIPLACE service default password. In this case you don't

have to enter the password for the account in this step - SIPLACE Pro Setup will try to use the

default password for connection to the database. 4

 Choose your SQL Server Instance from the drop-down menu.

 Click Next

4 Installation of SIPLACE Pro and possible Setup Types Installation Manual

Edition 12/2014 SIPLACE Pro 12.0

Step 5

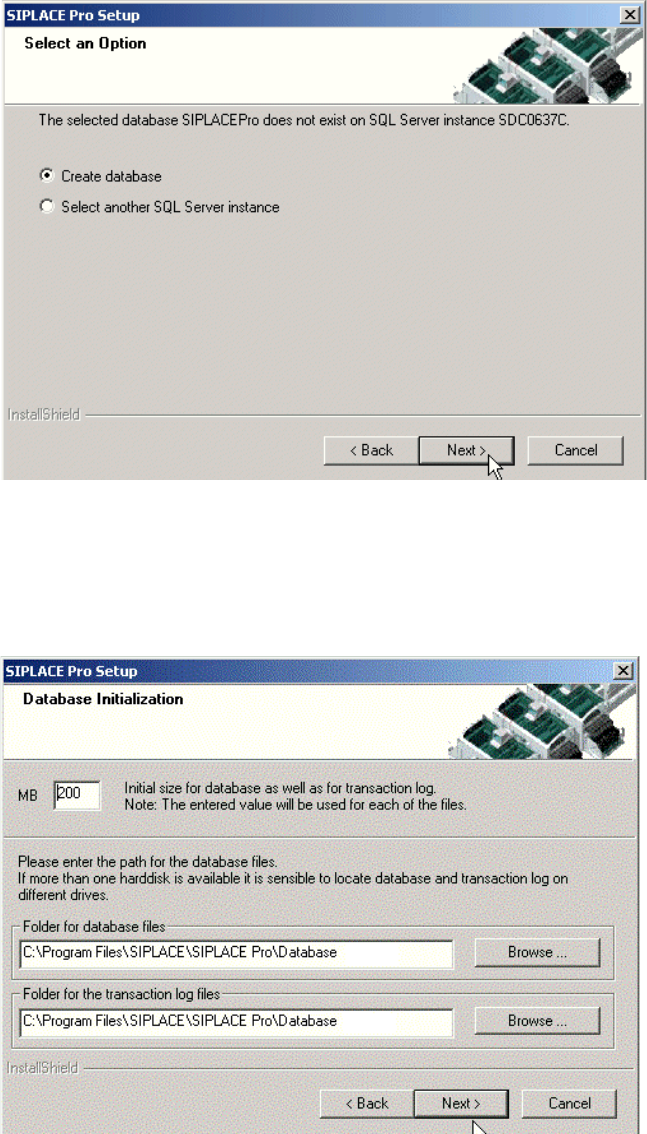

Fig. 4.3 - 6 "Create database" dialog box - in case no database exists

 If you choose Select another SQL Server instance you will be returned to the previous

dialog.

 Click Next to create a new database

Fig. 4.3 - 7 "Database initialization" dialog box

Installation Manual 4 Installation of SIPLACE Pro and possible Setup Types

SIPLACE Pro 12.0 Edition 12/2014

The figure you enter in the MB text box defines the size of the SIPLACE Pro database files (SI-

PLACE Pro Data.mdf and SIPLACE Pro Log.ldf) which are to be created during the installation.

 Confirm the default value or

 enter the size you want in the MB text box.

Note

The specified size is only an initial value. The database will grow automatically as required.

However, only intervention by the database administrator is capable of freeing up unused disk

space. 4

 In the "database files" field, enter the directory in which the SIPLACE Pro Data.mdf file is to

be created.

 In the transaction log files field, enter the name of the directory in which the

SIPLACE Pro Log.ldf database file is to be created.

 Click Next.

Note

You can specify a different folder for each of the database files. Indeed, having the files on different

hard disks can improve disk access performance. 4
