SAFETY FEA TURES MACHI NE COVERS 2.10 Instal lation M anual Chapter Issue 1 Jul 03 The foll owing p anels ar e secured to the cover frame using quart er-turn fast en- ers. • Front Panel (internal in 2 pos itions) • Rear …
SAFETY FEATURES
MACHINE COVERS
Chapter Issue 1 Jul 03 Installation Manual 2.9
MACHINE COVERS
In order to protect personnel and prevent damage to the machine, eight panels
are fitted around the base of the machine.
• Front Panel
• Rear Panel
• Corner Panels (4 positions)
• Side Panels (2 positions)
The upper part of the machine is protected by the opening printhead cover, one
rear fixed printhead cover and two upper side panels which house the control
switches.
Figure 2-3 Machine Panels
NOTE
Some of the covers can only be removed in a specific order due to the covers
interlocking with each other.
Item Description Item Description
1 Right Hand Upper Side Panel 6 Side Panel (in 2 positions)
2 Printhead Cover 7 Rear Corner Panel (in 2 positions)
3 Right Hand Front Corner Panel 8 Safety Cover (in 2 positions)
4 Front Panel 9 Rear Printhead Cover (fixed)
5 Left Hand Front Corner Panel 10 Left Hand Upper Side Panel
1
2
3
4
9
8
7
6
5
10
SAFETY FEATURES
MACHINE COVERS
2.10 Installation Manual Chapter Issue 1 Jul 03
The following panels are secured to the cover frame using quarter-turn fasten-
ers.
• Front Panel (internal in 2 positions)
• Rear Panel (external in 2 positions)
• Rear Printhead Fixed Cover (internal in 2 positions)
• Upper Side Panels (internal in 3 positions for each panel)
• Corner Panels (internal in 1 position for each panel)
The front panel and the rear printhead cover are secured by ring head quarter-
turn fasteners, figure below refers. The upper side panels and the corner panels
are secured using button head quarter-turn fasteners and require a 4mm Allen
key to release. To release the fastener, turn the fastener anticlockwise by a
quarter-turn and pull out.
Figure 2-4 Quarter-Turn Fasteners
Front Panel To remove the front panel of the machine, open the printhead cover and locate
the two quarter-turn fasteners on the inside of the panel.
After releasing the fasteners, tilt the top of the panel away from the machine and
lift clear of the guide pins that locate the panel to the machine frame.
Front Panel
Quarter-Turn
Fastener
Front Panel
Quarter-Turn
Fastener
SAFETY FEATURES
MACHINE COVERS
Chapter Issue 1 Jul 03 Installation Manual 2.11

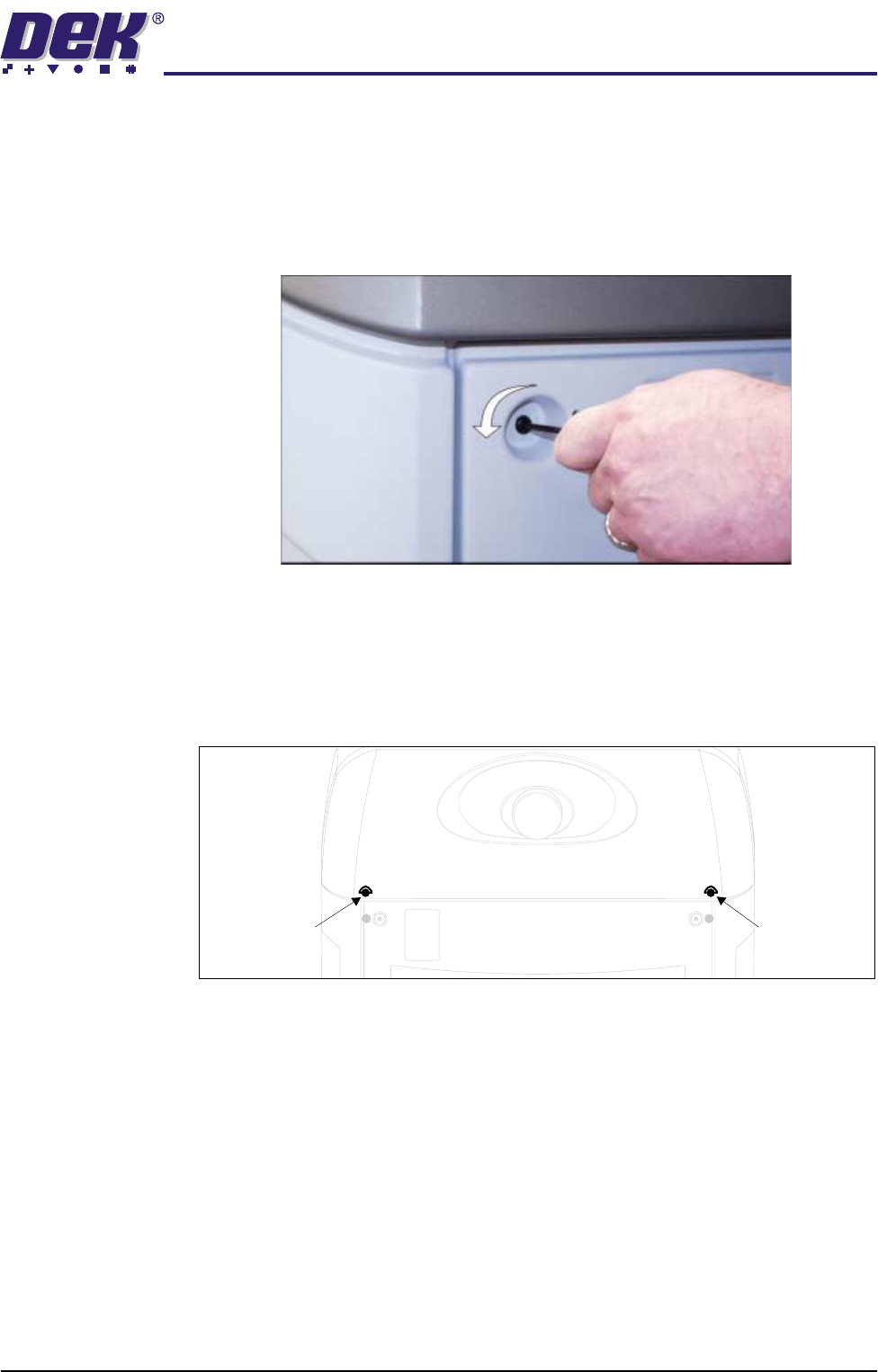

Rear Panel Removal of the rear panel requires a maintenance key to release the two
quarter-turn fasteners located externally at the top corners of the panel (Panel
Locking Mechanism figure refers). After releasing the fasteners, push down-
wards on the panel to clear the rear printhead cover, tilt the top of the panel away
from the machine and lift clear of the guide pins that locate the panel to the
machine frame.
Figure 2-5 Panel Locking Mechanism
Rear Printhead
Fixed Cover
To remove the rear printhead fixed cover, carry out the following:
1. Remove the rear panel.
2. Release the two quarter-turn fasteners that secure the rear printhead cover
to the cover frame.
Rear Printhead
Quarter-Turn
Fastener
Rear Printhead
Quarter-Turn
Fastener
