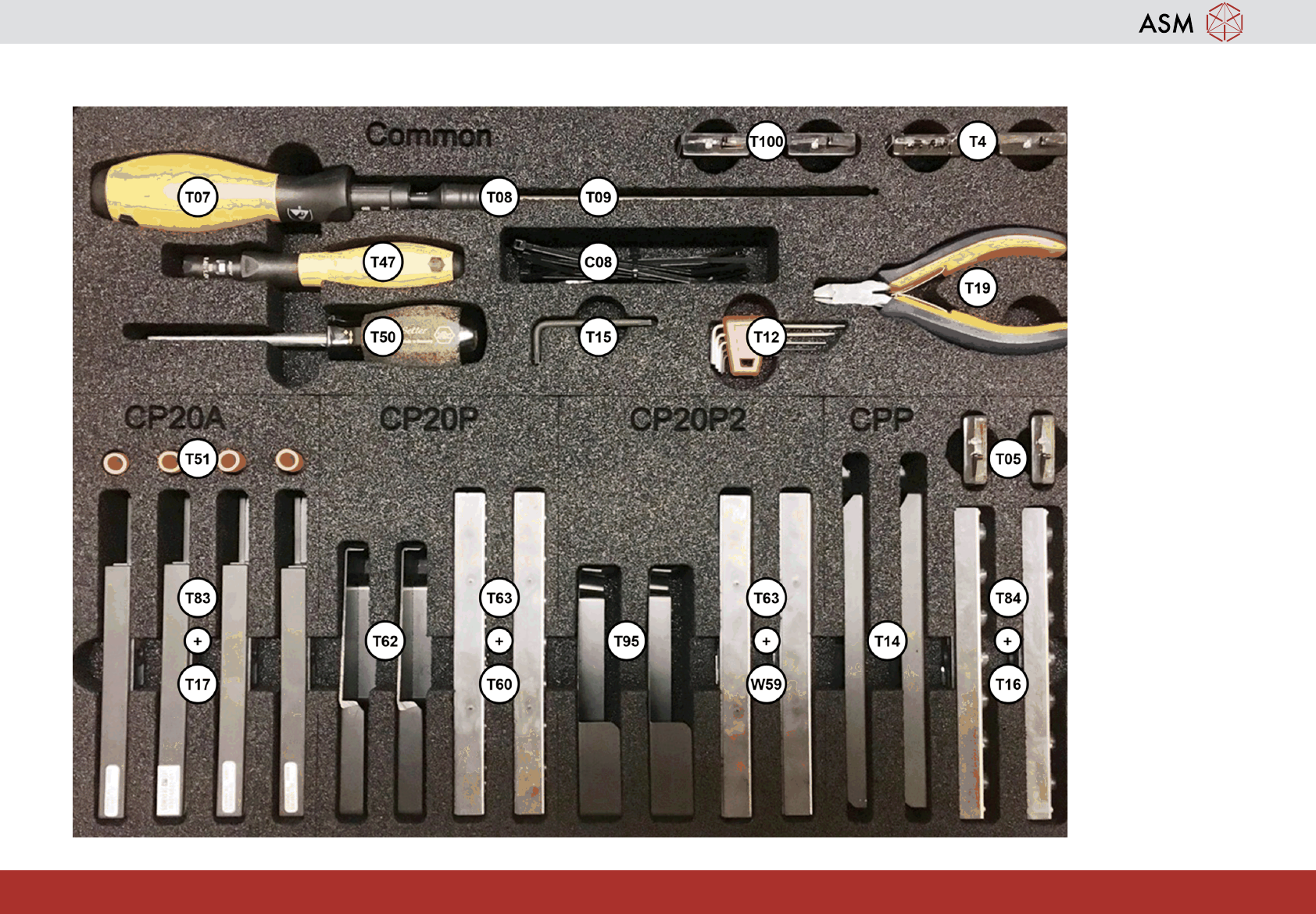

Head Exchange Kit - Overview
1 WF3 SX1/2 Test the tape cutter. 2 min 1 / 3
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Transport Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
C1
www.asm-smt.com

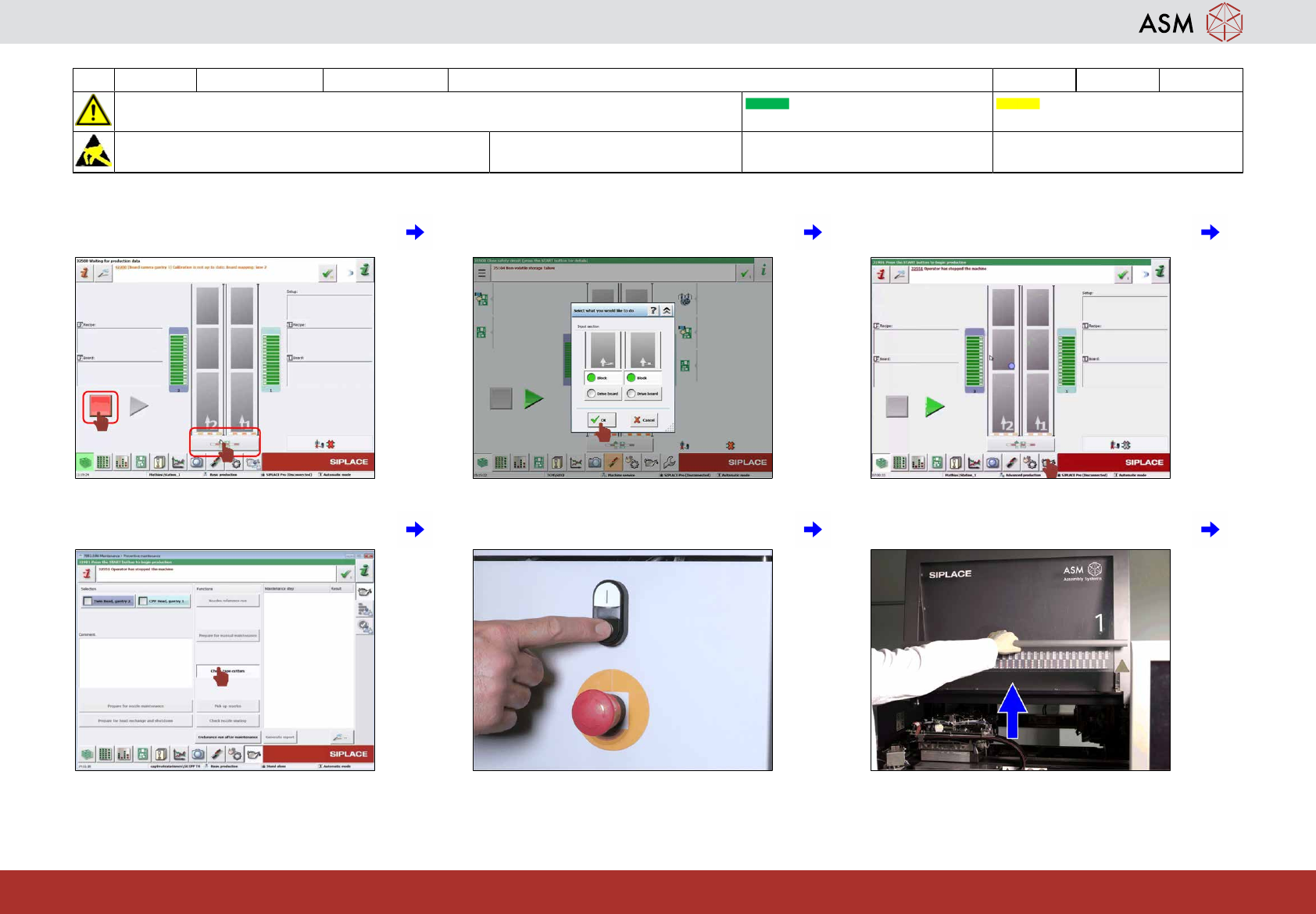

1 Stop production and click on " Block con-
veyor ".
2 Block all lanes and click "OK". 3 Click on "Maintenance".
4 Click on "Check tape cutters". 5 Press the stop button. 6 Open all covers.
1 WF3 SX1/2 Test the tape cutter. 2 min 2 / 3
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Transport Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
C1
www.asm-smt.com

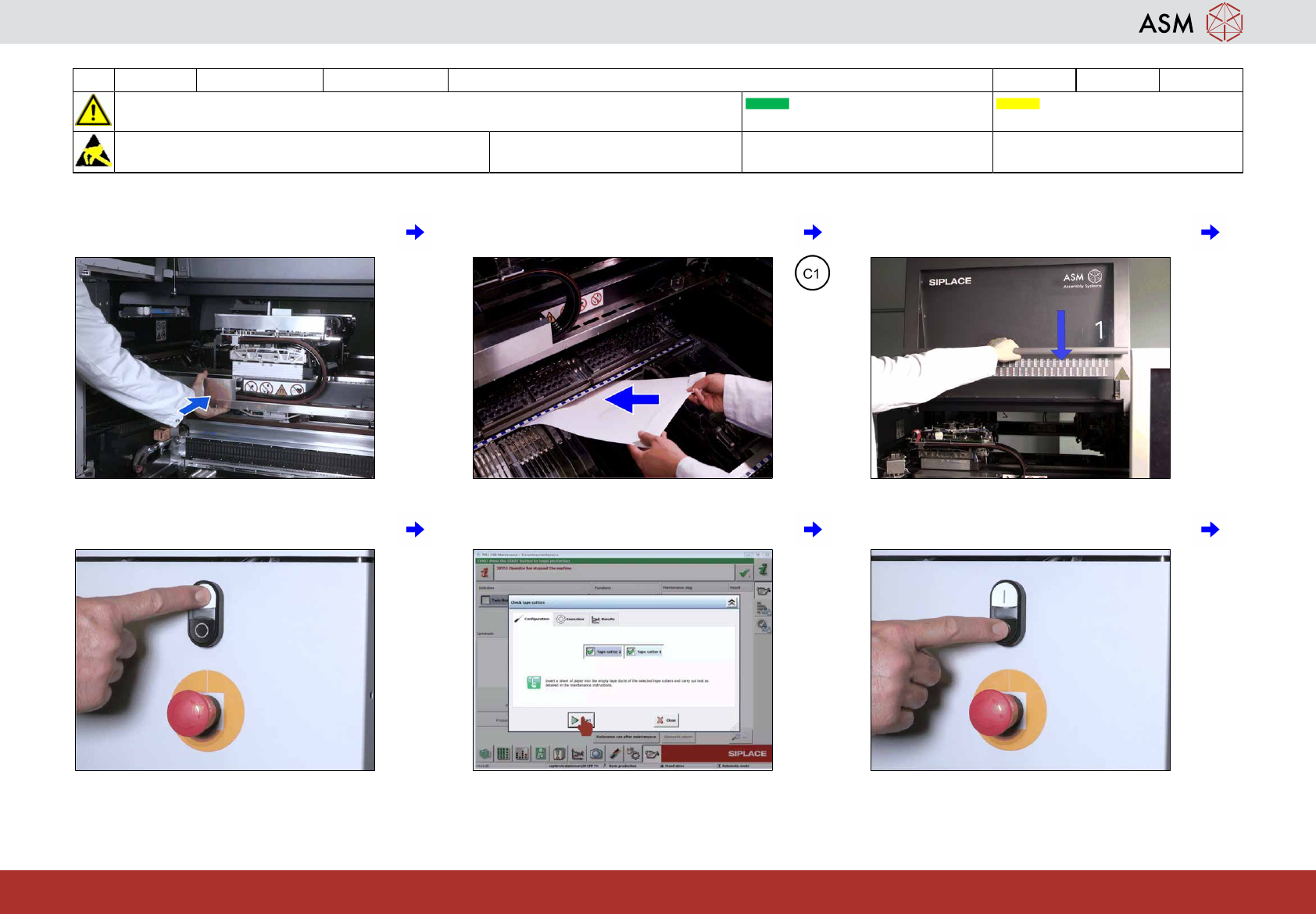

7 Move the gantries over the conveyor. 8 Place a sheet of paper in both tape cut-
ters.
9 Close all covers.
10 Press the start button. 11 Click on "Start". 12 Press the stop button.
