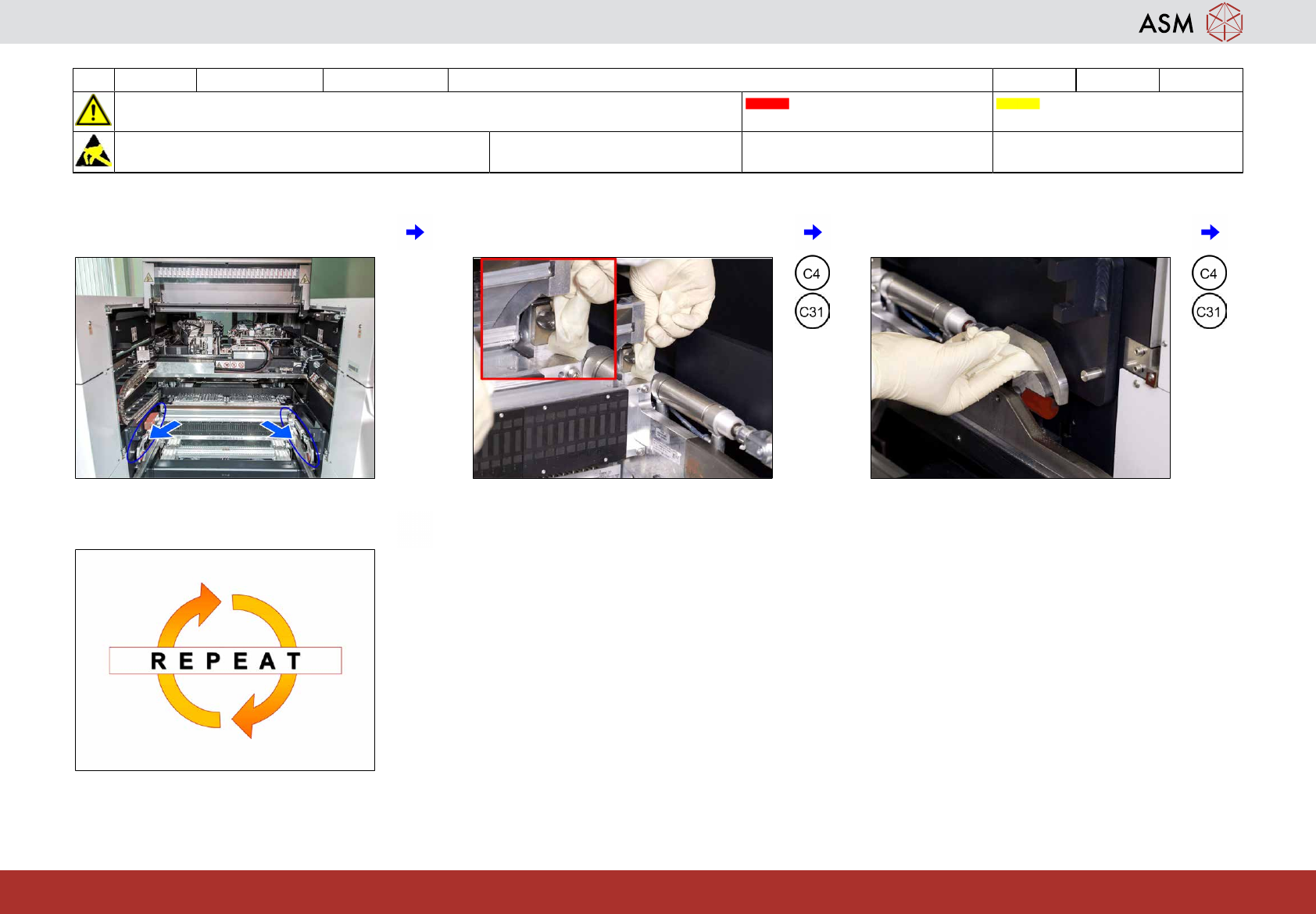

15 WF3 SX1/2 Check / grease the docking unit. 1 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
C4, C31
www.asm-smt.com
1 Location of the subassemblies to be main-
tained.
2 Lubricate the engaging pin. 3 Lubricate the hooks at both sides.
4 Repeat all steps at the other location.
www.asm-smt.com
16 WF3 SX1/2 Check the guide roller and buffer at the protection covers. 1 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Transport Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
www.asm-smt.com
1 Move the cover until the roller is in the
corner.
2 Check the guide roller for damages. 3 If O-ring missing (1) or damaged (2) in-
form service.
4 Close the cover. 5 Check if the roller touches the lower stop. 6 If YES inform service.
