1 WF3 SX1/2 Test the tape cutter. 2 min 3 / 3
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Transport Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
C1
www.asm-smt.com
13 Open all covers. 14 Move the gantries over the conveyor. 15 Remove the paper from both tape cutters.
16 Check for clean cut and if OK go to step
18.
17 If not OK inform Service. 18 Close all covers.
www.asm-smt.com
2 WF3 SX1/2 Check the head status, remove tables (COT), exchange nozzles and shut
down machine
1.5 min 1 / 2
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON Transport Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part:
W1, W2, W3, W58, W63
Consumables:
www.asm-smt.com

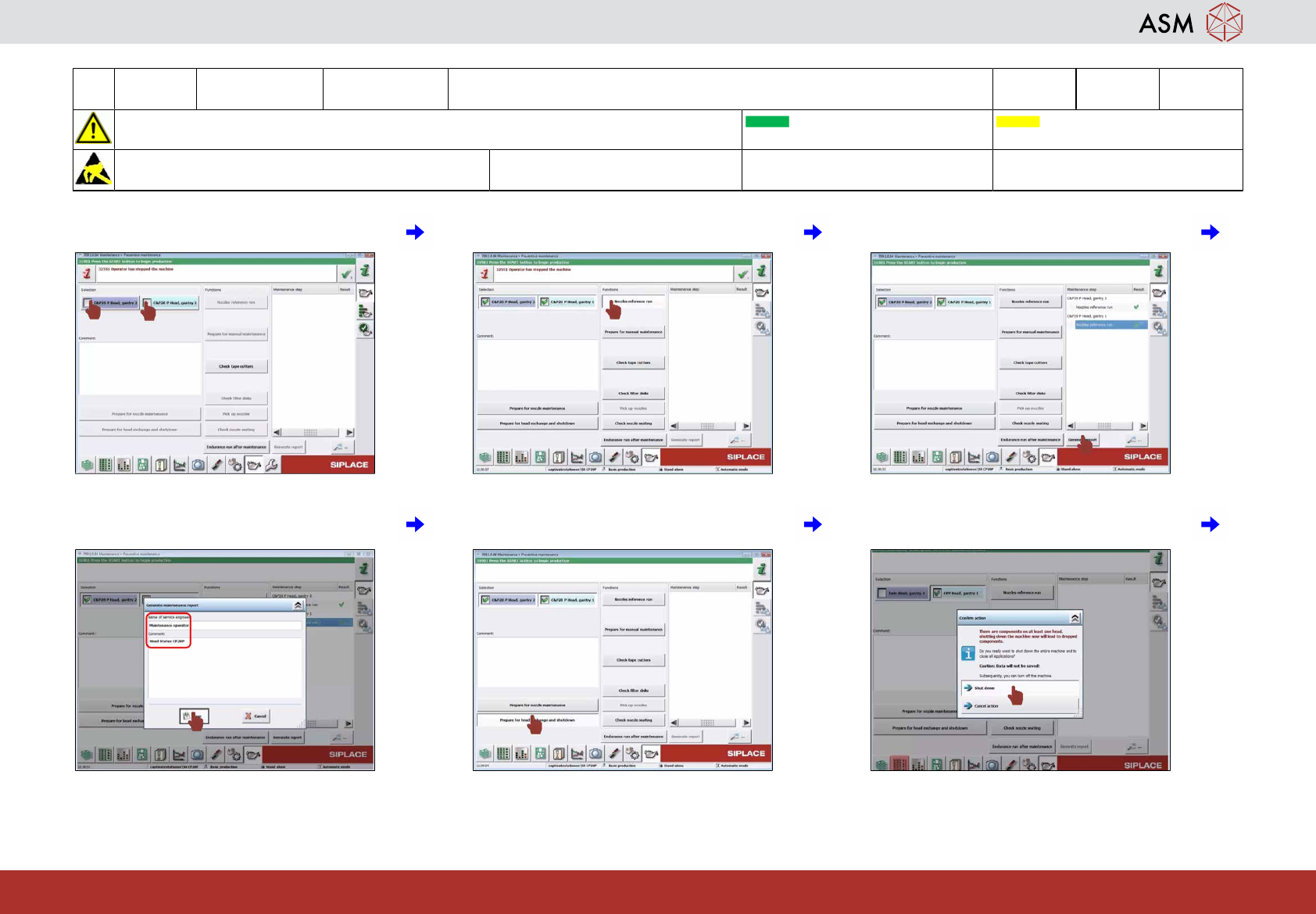

1 Select all heads. 2 Click on "Nozzle reference run". 3 Click on "Generate report".
4 Enter name and comment and click on
"Save".
5 Click on "Prepare for head exchange and
shutdown".
6 Click on "Shut down".
