SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50041
6/10

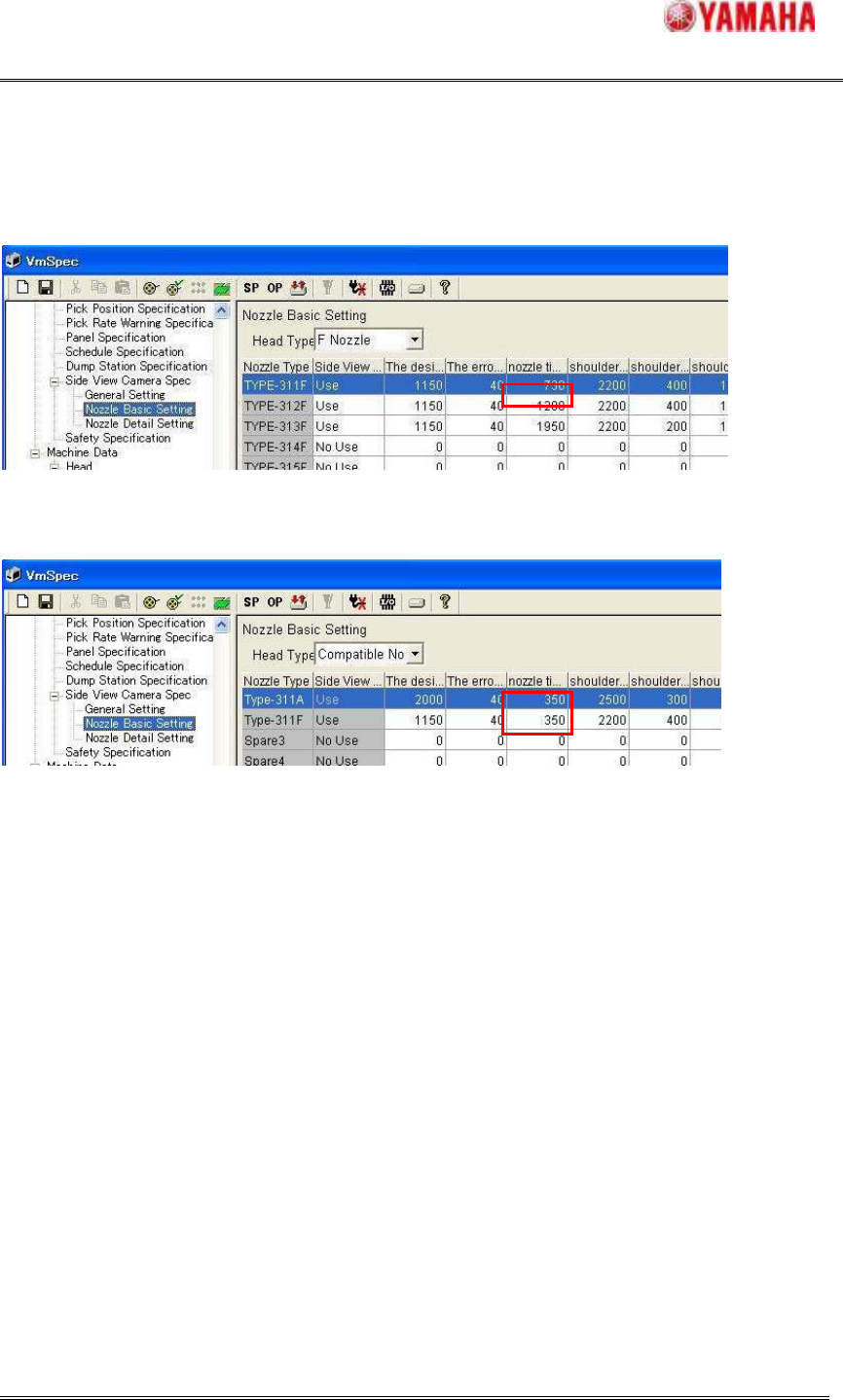

(In the case of YS100) When “F Nozzle” is selected for Head Type, please confirm the setting
of “nozzle tip width(um)” for TYPE-311 is “730” (which is the size of the new nozzle).
* In the machine except for YS100, “0” is set to all the setting values.
When “Compatible Nozzle” is selected for Head Type, please confirm the settings of “nozzle
tip width(um)” for TYPE-311A and TYPE-311F are “350” (which is the size of the old nozzle).
3.3. System Backup
After the work of 3.1 and 3.2, please get the system backup to re-register machine to Y.FacT
P-Tool.
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50041
7/10
4. Setup Steps in Y.FacT P-Tool
Setup steps in Y.FacT P-Tool to make the compatibility of 311A/311F nozzle are as following.
1. Software Version Up
(Update the information of Mount Nozzle Specification)
2. Re-Register Machine
(Update the information of Side View Camera Spec)
* When Y.FacT P-Tool is not used, the work of this chapter is unnecessary.
4.1. Software Version Up
The function to make the compatibility of 311A/311F nozzle is supported from the following
software versions, so please do software version up when the software that is older than the
following versions is installed.
when the following version has been already installed, it is unnecessary to do the work
mentioned on this document. Please do the work from "4.2 Re-Register Machine".
Table4.1 Target Model and Target Version Corresponding to the Function of Making
Compatibility of 311A/311F Nozzle
Item Object
Target Model Y.FacT P-Tool
Target Version V1.10 STD R1.000 or later
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50041
8/10
When the following screen is displayed in the version up process, please continue the work
with the check mark on “Update of Nozzle Spec”.
As a result, the necessary following informations are reflected in Y.FacT P-Tool to make the
compatibility of 311A/311F nozzle.
[Setting] – [Specification Information] – [Mount Nozzle Specification]
[Setting] – [Specification Information] – [Side View Camera Spec]
* The information set for the special nozzle is not lost, because the information of
Type-31A to Type-31Z for the special nozzle is not overwritten,
* When the information of Type-311 to Type-319 for the standard nozzle have beenn
changed
from the initial settings, it is necessary to re-resister machine as shown in 4.2 .
