7 10 18 2 3 4 26 24 8 28 9 33 29 16 21 34 6 25 26 20 7 31 27 32 1 11 35 19 23 8 2 3 14 4 22 14 13 30 15 9 17 12 5 Z-guide / ball screw Moving-axis KLS-1303 4-2 NO Parts_No. Parts_Name Q_ty Remarks Compati Revision_No._da…

100%1 / 34
15
29
24
27
30
2
2
14
7
21
9
18
13
13
2
16
8
7
20
10
26
1
23
28
22
3
19
12
4
5
6
25
17
10

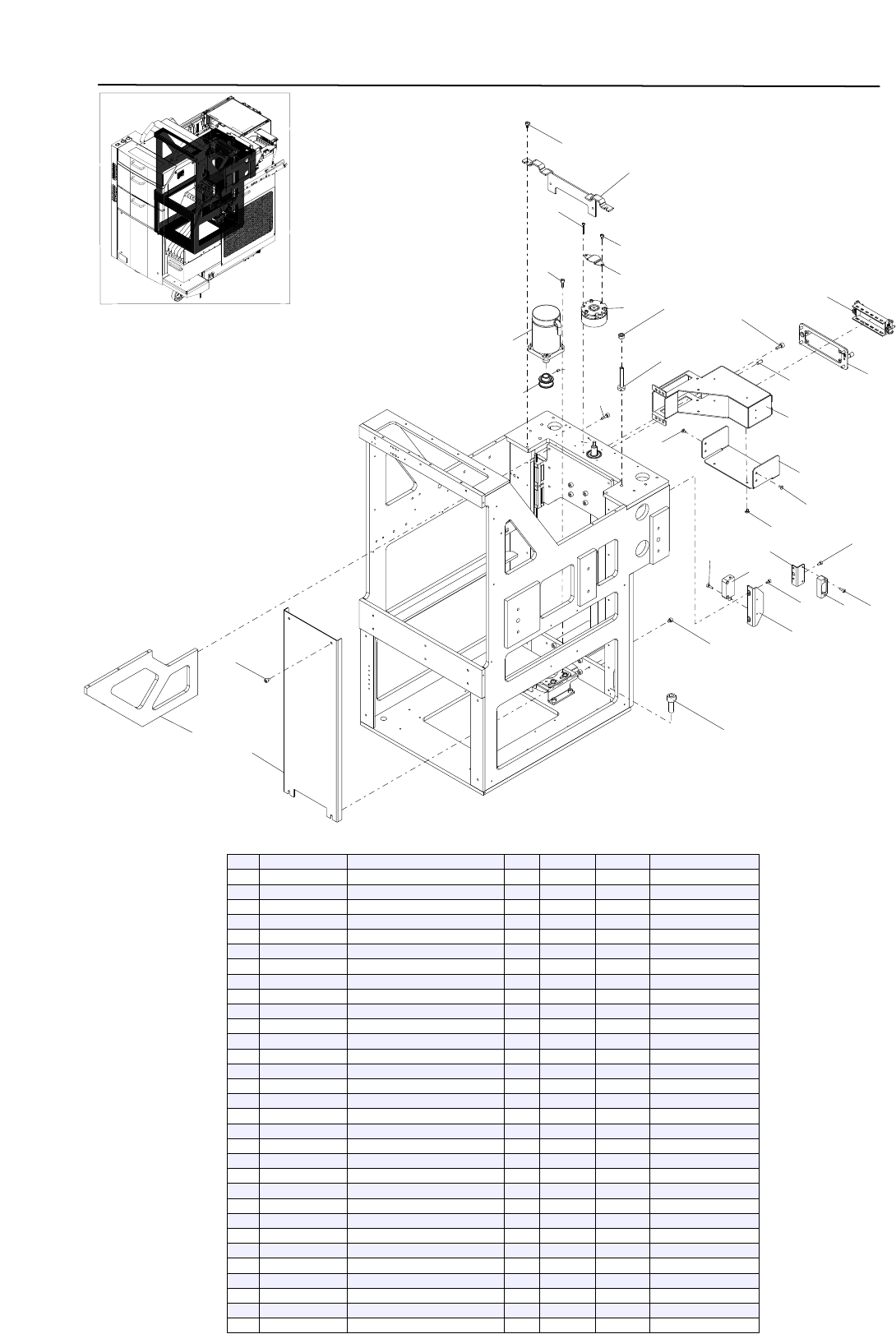

Z-motor / sensor
Moving-axis
KLS-1404
4-1
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90112-12J030
BOLT, HEX. SOCKET HEAD
4
2
90990-01J011
BOLT HEX,SOCKET HEAD
6
3
90990-33J012
BOLT, STOPPER
2
4
90KC2-012B10
AC SERVO MOTOR AZ
1
5
91312-03025
BOLT HEX,SOCKET HEAD
3
6
91312-04006
BOLT HEX,SOCKET HEAD
2
7
91312-04008
BOLT HEX,SOCKET HEAD
4
8
91312-04010
BOLT HEX,SOCKET HEAD
2
9
91312-04012
BOLT HEX,SOCKET HEAD
2
10
91312-05006
BOLT HEX,SOCKET HEAD
4
11
91312-05008
BOLT HEX,SOCKET HEAD
2
12
KH2-M1726-01
COVER,BRAKE
1
13
KLS-M653C-10
SAFETY SW
1
14
KLF-M3TJ1-00
FRAME,DOCKING
1
15
KLF-M3TJ3-10
FRAME,PIN
1
16
KLS-M1708-00
BRKT.,SENSOR ORG.
1
17
KLS-M1709-00
ARM 1
2
18
KLS-M1714-00
BRACKET,SW.
1
19
KLS-M1716-00
PULLEY 1
1
20
KLS-M1721-00
BRACKET,CONNECTOR
1
20-1
KLS-M1721-01
BRACKET,CONNECTOR
1
OK
MK10140-2013/2/14
21
KLS-M1722-00
CONNECTOR COVER
1
22
KLS-M1725-A0
BREAKE ASSY.
1
23
KLS-M1726-00
COVER1,GREASE
1
24
KLS-M1727-00
COVER2,GREASE
1
25
91312-05014
BOLT HEX,SOCKET HEAD
4
26
91312-05016
BOLT HEX,SOCKET HEAD
6
27
91312-06014
BOLT HEX,SOCKET HEAD
4
28
92A08-04006
SCREW,SET
1
29
95302-08600
NUT HEXAGON
2
30
99480-06014
PIN,PARALLEL
2
7
10
18
2
3
4
26
24
8
28
9
33
29
16
21
34
6
25
26
20
7
31
27
32
1
35
19
23
8
2
3
14
4
22
14
13
30
15
9
17
12
5

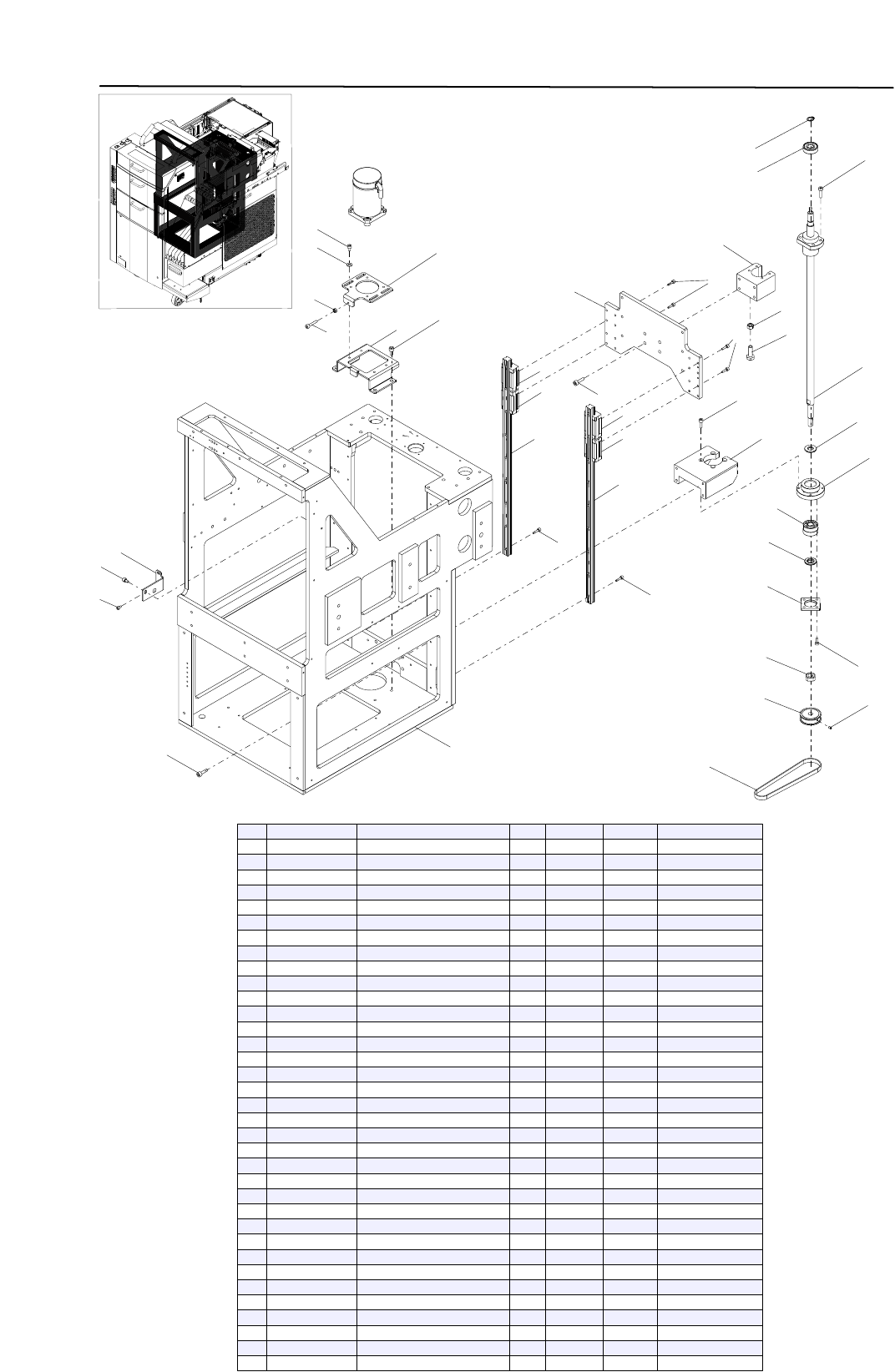

Z-guide / ball screw
Moving-axis
KLS-1303
4-2
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90990-33J001
BOLT, STOPPER
1
2
90K71-3L0510
LM RAIL(15)
2
3
90K80-S15LW0
LM BLOCK
2
4
90K80-S15RW0
LM BLOCK
2
5
91312-04006
BOLT HEX,SOCKET HEAD
2
6
91312-04012
BOLT HEX,SOCKET HEAD
4
7
91312-04014
BOLT HEX,SOCKET HEAD
16
8
91312-04016
BOLT HEX,SOCKET HEAD
18
9
91312-05008
BOLT HEX,SOCKET HEAD
5
10
91312-05016
BOLT HEX,SOCKET HEAD
4
11
91312-05020
BOLT HEX,SOCKET HEAD
4
12
91312-05025
BOLT HEX,SOCKET HEAD
1
13
91312-06012
BOLT HEX,SOCKET HEAD
4
14
91312-06020
BOLT HEX,SOCKET HEAD
8
15
92902-05200
WASHER,PLAIN
4
16
92A08-04006
SCREW,SET
2
17
95302-05600
NUT HEXAGON
1
18
95302-08600
NUT HEXAGON
1
19
99009-12400
CIRCLIP
1
20
K41-90M14-00
BEARING : 7201CDF
1
21
KGS-M2628-00
LOCK NUT
1
22
KLS-M1701-00
BASE
1
23
KLS-M1702-00
SLIDER
1
24
KLS-M1703-00
HOLDER,NUT
1
25
KLS-M1704-00
CAP
1
26
KLS-M1705-00
WASHER
2
27
KLS-M1706-00
BALL SCREW,Z AXIS
1
28
KLS-M1707-00
BASE,MOTOR
1
29
KLS-M1710-00
BELT
1
30
KLS-M1711-00
TENSIONER,BELT
1
31
KLS-M1712-00
HOLDER,BRG.1
1
32
KLS-M1713-00
HOLDER,BRG.2
1
33
KLS-M1715-00
PULLEY
1
34
KLS-M1728-00
PLATE FIX1
1
35
93306-20113
BEARING
1
9
16
10
17
6
18
13
4
3
1
8
14
15
12
2
16
7
19
5
1
5
8
19
7
5
11
5

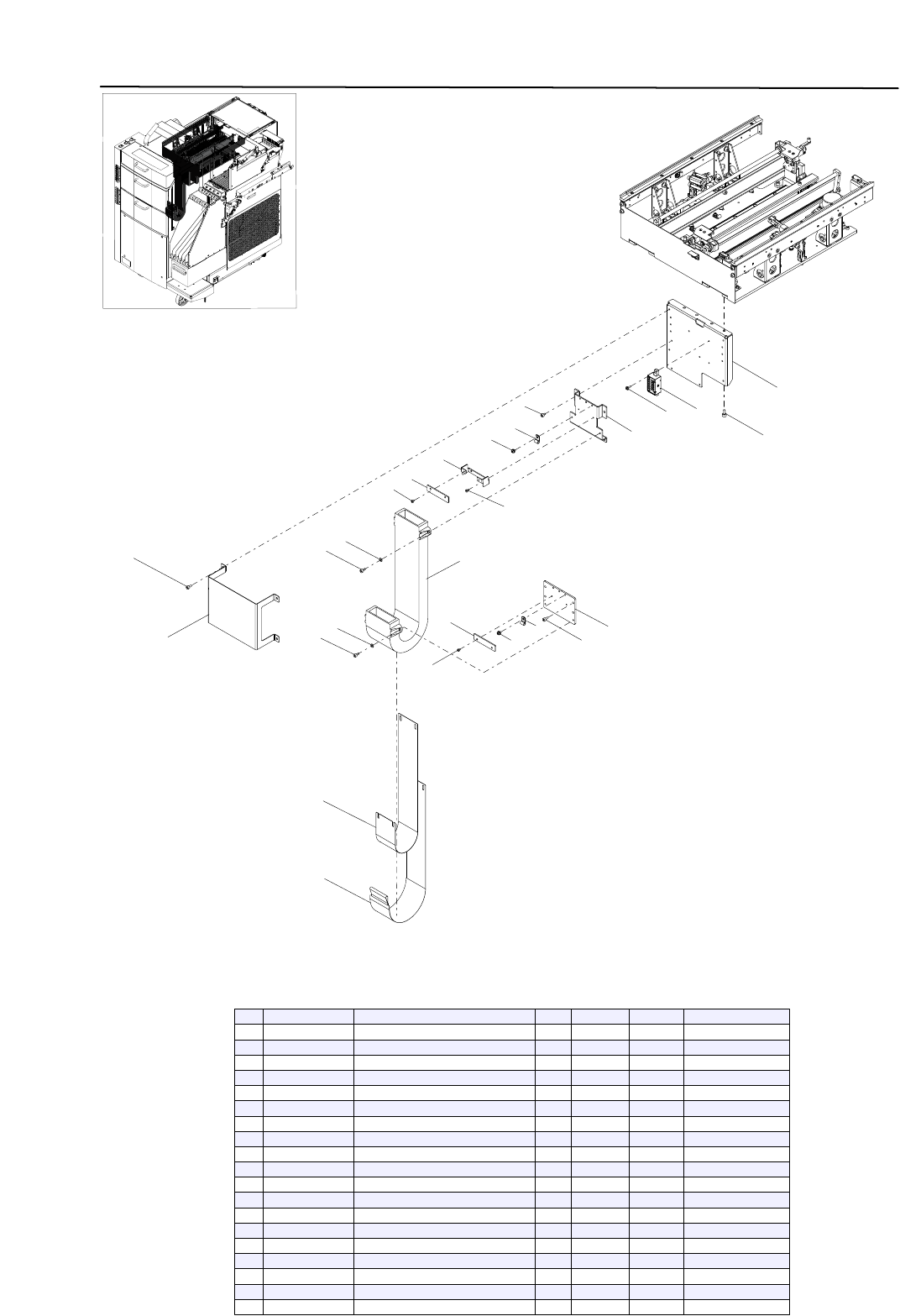

Hook-Duct
Moving-axis
KLS-1303
4-3
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$NK-3N
NYLON CLIP
12
2
90990-01J044
BOLT HEX,SOCKET HEAD
2
3
90990-11J007
SCREW, PAN HEAD W/W
2
4
91312-04006
BOLT HEX,SOCKET HEAD
4
5
91312-04008
BOLT HEX,SOCKET HEAD
12
6
91312-05010
BOLT HEX,SOCKET HEAD
4
7
92902-04600
WASHER,PLAIN
4
8
97602-04306
SCREW PAN HEAD W/WASHER
12
9
KKX-M6555-00
JUNCTION BOX V
1
10
KLS-M1818-00
BRACKET,Z DUCT
1
11
KLS-M1820-01
COVER
1
12
KLS-M18E1-00
CABLE DUCT
1
13
KLS-M18E2-00
BASE,Z DUCT 1
1
14
KLS-M18E3-00
BRACKET,Z DUCT
1
15
KLS-M18E4-00
BASE,Z DUCT 2
1
16
KLS-M18E5-00
PLATE
2
17
KLS-M18E6-00
TAPE,Z DUCT 1
1
18
KLS-M18E7-00
TAPE,Z DUCT 2
1
19
98502-03004
SCREW PAN HEAD
4
