C-ATS_pl.pdf - 第19页
40 14 6 12 36 25 7 28 27 5 34 18 10 13 21 2 19 22 35 35 4 24 11 35 24 4 36 9 26 26 15 39 20 37 3 16 3 38 6 29 33 1 34 17 35 30 31 8 9 23 32 6 28 Hook-drive Moving-axis KLS-1303 4-6 NO Parts_No. Parts_Name Q_ty Remarks Co…
18
13
23
31
40
11
9
19
11
1
14
12
13
34,22
38
20
37
27
23
6
31
14
28
37
4
30
12
16
20
36
3
6
21
29
39
6
4
28
30
15
8
10
10
3
35,22
17
19
9
21
6
39
18
8
26
40
16
25
24
2
33
5
32
7
18
13
23
31
40
11
9
19
11
1
14
12
13
34,22
38
20
37
27
23
6
31
14
28
37
4
30
12
16
20
36
3
6
21
29
39
6
4
28
30
15
8
10
10
3
35,22
17
19
9
21
6
39
18
8
26
40
16
25
24
2
33
5
32
7

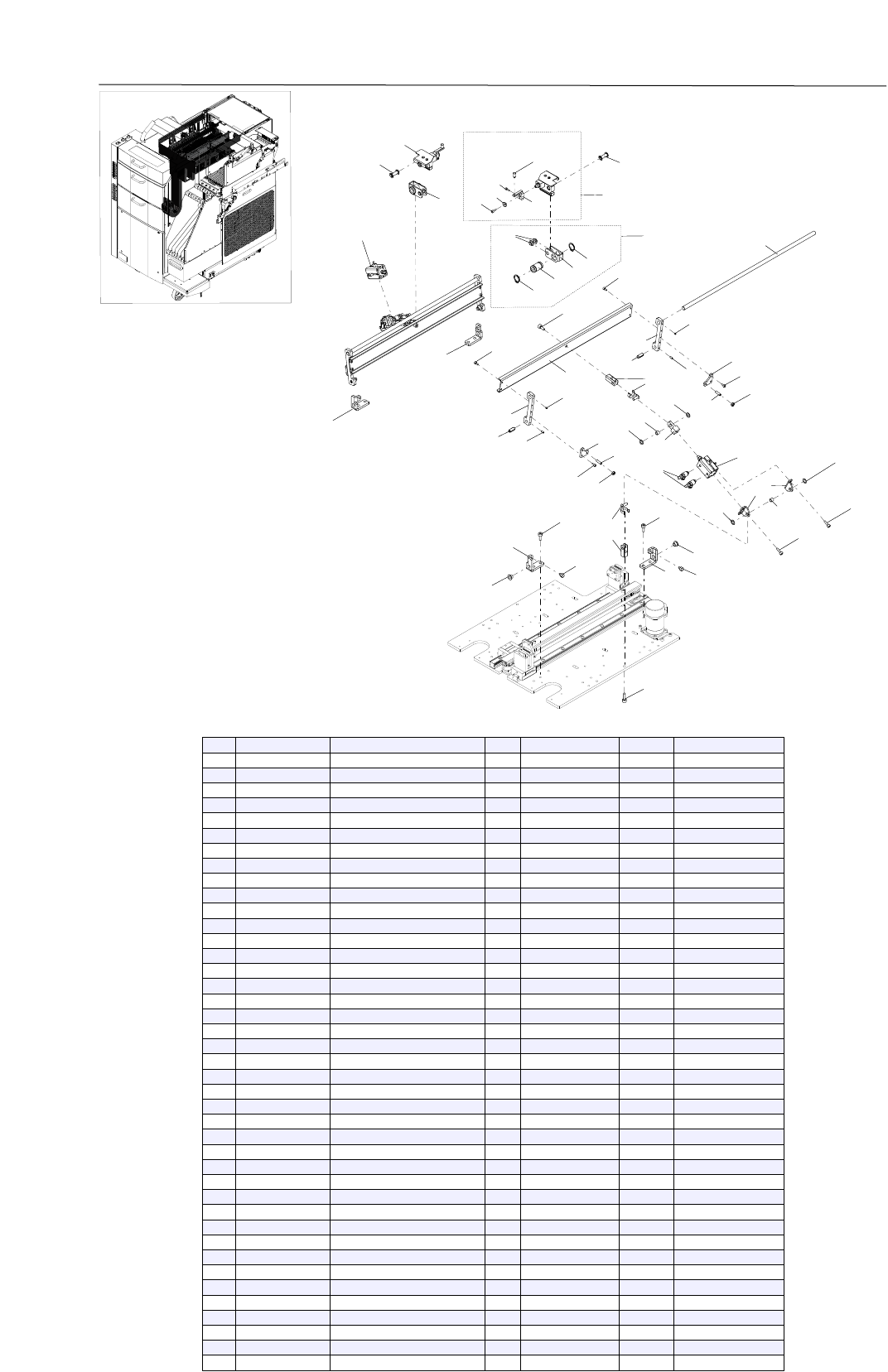

Hook-link
Moving-axis
KLS-1404
4-5
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$SCC4-M5-A
SPEED CONTROLLER
4
2
90112-2AJ008
BOLT, HEX.SOCKET HEAD
2
3
90152-03J03
SCREW SET
4
4
90152-03J06
SCREW SET
4
5
90990-28J031
WASHER,PLAIN
2
6
91312-03006
BOLT HEX,SOCKET HEAD
16
7
91312-03008
BOLT HEX,SOCKET HEAD
2
8
91312-04012
BOLT HEX,SOCKET HEAD
8
9
KLH-M91B6-10
WASHER 10
4
10
KLH-M91BM-00
OIL FREE BUSH 1
4
11
KLS-M1408-00
KNUCKLE
4
12
KLS-M1823-00
BEARING(OILLESS)
4
13
KLS-M1824-01
BASE,HINGE
2
14
KLS-M1825-01
BASE,HINGE
2
15
KLS-M1826-01
JOINT
2
16
KLS-M1827-00
PIN,HINGE
2
17
KLS-M1834-01
BRKT.,CYL.
4
18
KLS-M1841-00
WASHER 08
4
19
KLS-M1855-00
STOP PLATE
4
20
KLS-M1856-00
STOP PIN
4
21
KLS-M1857-00
ADJUSTING SCREW
4
22
KLS-M1859-00
CYLINDER
2
Cylinder Only
23
KLS-M18A0-00
LINK,HOOK ASSY
2
24
KLS-M18A1-00
BUSH
2
25
KLS-M18A2-00
HOLDER,BUSH
2
26
KLS-M18A3-00
OIL FREE BUSH
4
27
KLS-M18B1-00
SHAFT
2
28
KLS-M18B2-00
LINK
4
29
KLS-M18B3-00
JOINT
2
29-1
KLS-M18B3-01
JOINT
2
OK
MK30144-2013/3/29
30
KLS-M18B4-00
PIN,PARALLEL
4
31
KLS-M18D0-01
HOOK SUB ,HOOK ASSY.
2
32
KLS-M18D5-00
SHAFT
2
33
KLS-M18D7-01
CLAMP
2
34
KLS-M653M-00
CYLINDER HOOK1 ASSY
1
Cylinder & Sensor
35
KLS-M653M-10
CYLINDER HOOK2 ASSY
1
Cylinder & Sensor
36
91312-05010
BOLT HEX,SOCKET HEAD
2
37
91312-05012
BOLT HEX,SOCKET HEAD
8
38
91312-05016
BOLT HEX,SOCKET HEAD
2
39
95302-04600
NUT HEXAGON
4
40
99009-15400
CIRCLIP
4
40
14
6
12
36
25
7
28
27
5
34
18
10
13
21
2
19
22
35
35
4
24
11
35
24
4
36
9
26
26
15
39
20
37
3
16
3
38
6
29
33
1
34
17
35
30
31
8
9
23
32
6
28

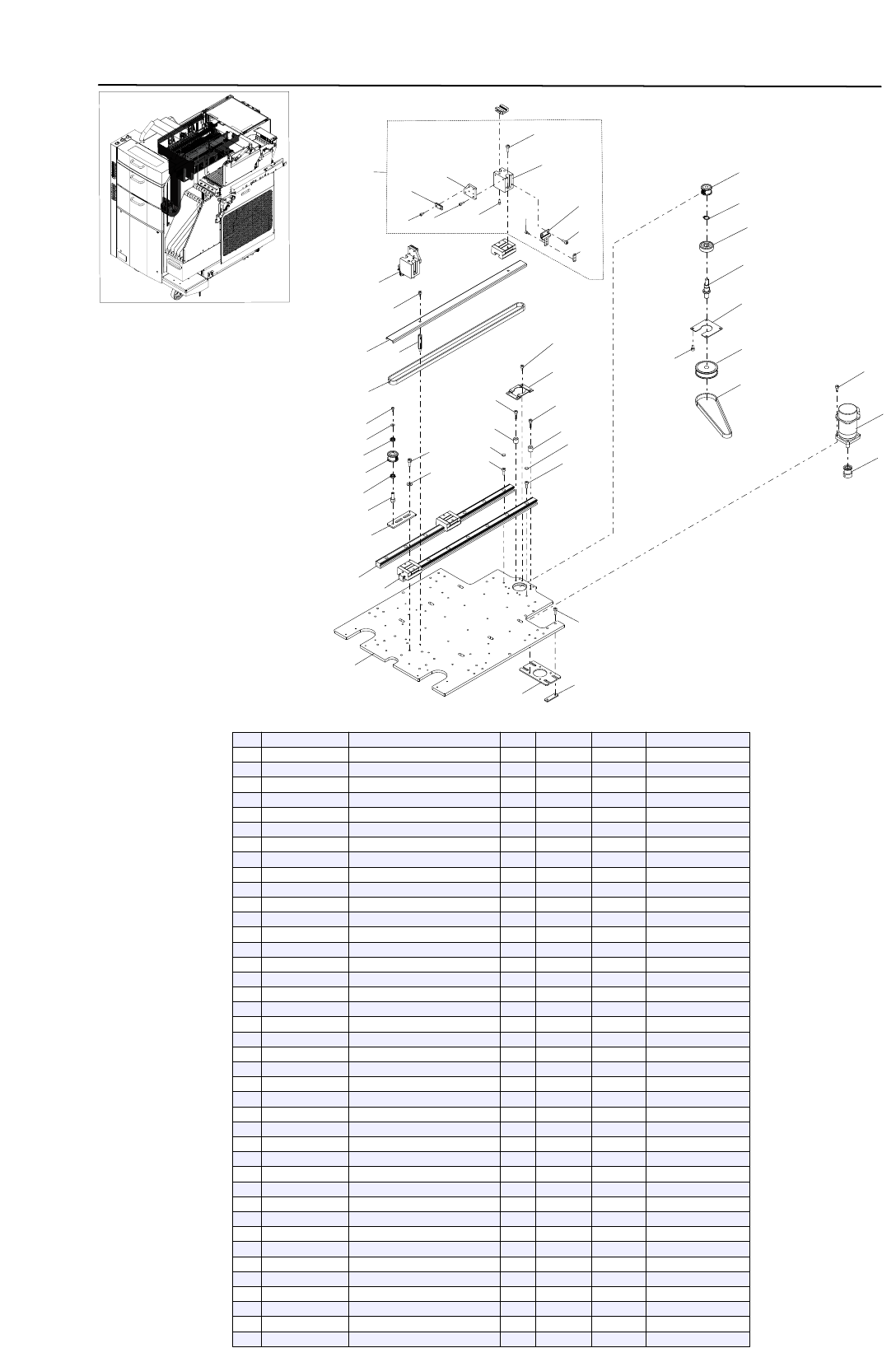

Hook-drive
Moving-axis
KLS-1303
4-6
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90563-04J350
SPACER
2
2
90933-01J200
BEARING
1
3
90933-03J106
BEARING
2
4
90K81-200004
CAP C4
14
5
90KC0-012B08
AC SERVO MOTOR
1
6
91312-03006
BOLT HEX,SOCKET HEAD
11
7
91312-03008
BOLT HEX,SOCKET HEAD
4
8
91312-03010
BOLT HEX,SOCKET HEAD
4
9
91312-04006
BOLT HEX,SOCKET HEAD
6
10
91312-04008
BOLT HEX,SOCKET HEAD
4
11
KLS-M1801-01
BASE,HOOK AXIS
1
12
KLS-M1805-00
PLATE,BRG.
1
13
KLS-M1807-00
SHAFT
1
14
KLS-M1808-00
PULLEY
1
15
KLS-M1812-00
HOLDER,PULLEY
1
16
KLS-M1813-00
PULLEY
1
17
KLS-M1814-00
BELT,HOOK AXIS
1
18
KLS-M1815-00
BELT ,MOTOR
1
19
KLS-M1816-00
BRKT.,MOTOR
1
20
KLS-M1819-00
SHAFT,PULLEY 1
1
21
KLS-M1821-00
NUT
2
22
KLS-M1822-00
PULLEY
1
23
KLS-M1829-00
COVER,BELT
1
24
KLS-M1830-00
COLLAR
2
25
KLS-M1838-00
HOLDER,BEARING
1
26
KLS-M1842-00
LM RAIL&BLOCK 15,410
2
27
KLS-M1852-00
DRIVEN PULLEY2
1
28
KLS-M18C0-00
SLIDER,HOOK ASSY.
2
29
KLS-M18C1-00
BLOCK,BASE
2
30
KLS-M18C2-00
BRACKET,GEAR
2
31
KLS-M18C3-00
HOLDER,BELT 2
2
32
KLS-M18C4-00
RACK
2
33
KLS-M18C5-00
BRACKET
2
34
91312-04010
BOLT HEX,SOCKET HEAD
8
35
91312-04012
BOLT HEX,SOCKET HEAD
22
36
91312-04016
BOLT HEX,SOCKET HEAD
2
37
91312-05012
BOLT HEX,SOCKET HEAD
2
38
92902-03200
WASHER,PLAIN
1
39
92902-05200
WASHER,PLAIN
2
40
99009-10400
CIRCLIP
1
8
2
31
9
29
6
32
33
19
10
30
3
20
13
32
19
33
20
24
14
32
17
1
14
25
4
15
7
33
27
23
28
12
26
5
21
13
11
21
7
6
14
17
14
23
16
5
33
4
31
4
8
22
18
3
25
4
24

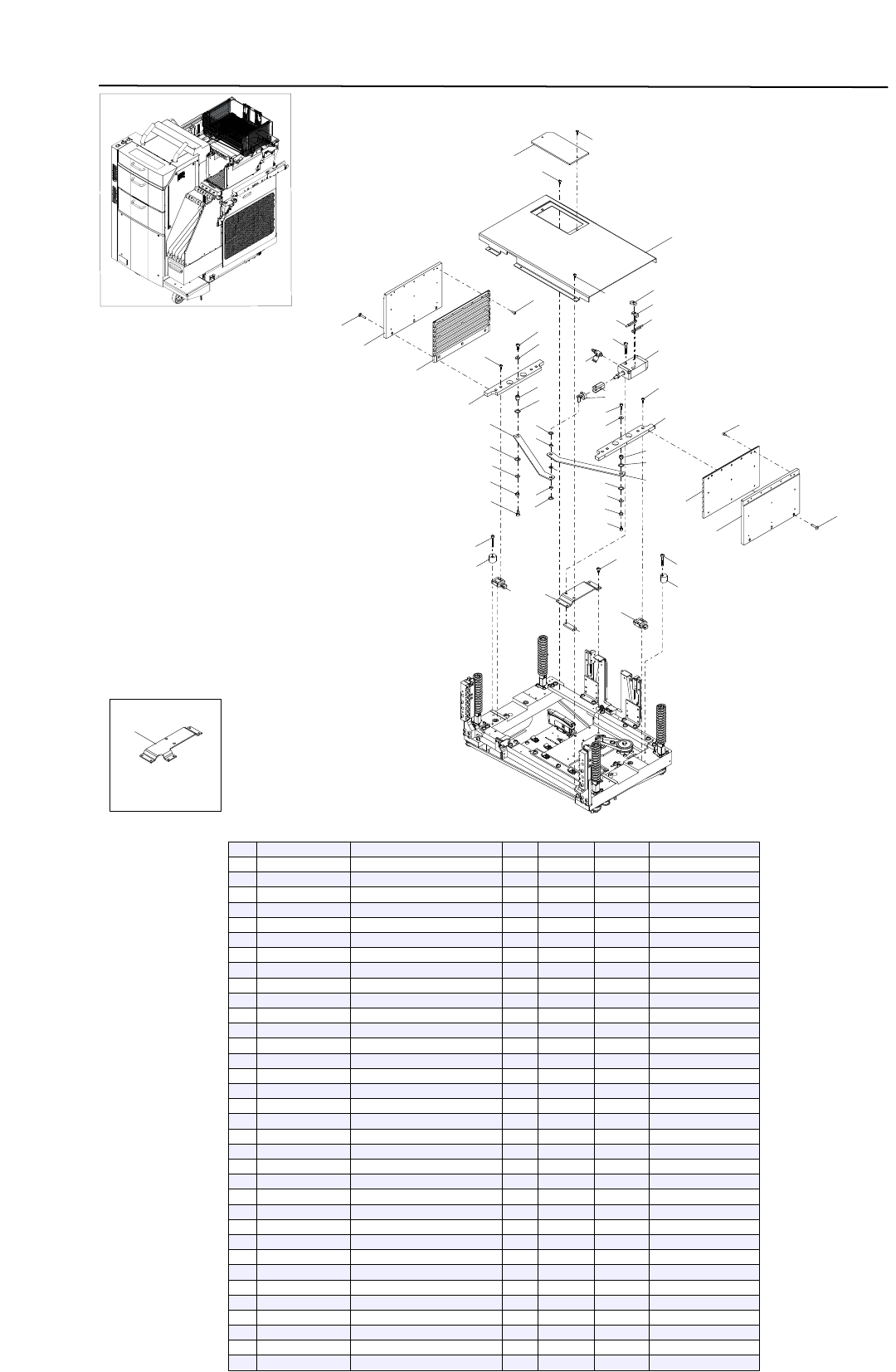

Guide & Cover
Stocker
KLS-1404
5-1
OLD
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$SC4-M5A
SPEED CONTROLLER
2
2
90990-01J043
BOLT HEX,SOCKET HEAD
2
3
90990-01J052
BOLT HEX,SOCKET HEAD
6
4
91312-03006
BOLT HEX,SOCKET HEAD
23
5
91312-03008
BOLT HEX,SOCKET HEAD
8
6
KLH-M91B6-00
WASHER 05
2
7
KLH-M91BN-00
OIL FREE BUSH 2
2
8
KLS-M1404-00
BRACKET
1
8-1
KLS-M1404-01
BRACKET
1
NG
MK30022-2013/4/24
9
KLS-M1405-00
CYLINDER
1
10
KLS-M1407-00
PLATE
1
11
KLS-M1408-00
PIN,NUCLE
1
12
KLS-M1410-00
WASHER 05
1
13
KLS-M1411-00
OIL FREE BUSH 2
2
14
KLS-M1412-00
WASHER 05
4
15
KLS-M1413-00
PIN 12
1
16
KLS-M1414-00
PIN 9
1
17
KLS-M1415-00
LINK 1
2
18
KLS-M1425-01
COVER
1
19
KLS-M1429-00
LM GUIDE
4
20
KLS-M1430-00
COLLAR
4
21
KLS-M1455-00
BRACKET,SENS.
2
22
KLS-M1468-00
COVER
1
23
KLS-M14A1-00
BRACKET,GUIDE
2
24
KLS-M14A2-00
PLATE,GUIDE
2
25
KLS-M14A3-01
GUIDE,PALLET
2
26
KLS-M653K-00
SEN.P.CLAMP OP ASSY
1
27
KLS-M653K-10
SEN.P.CLAMP CL ASSY
1
28
91312-04005
BOLT HEX,SOCKET HEAD
1
29
91312-04006
BOLT HEX,SOCKET HEAD
6
30
91312-04008
BOLT HEX,SOCKET HEAD
1
31
91312-04010
BOLT HEX,SOCKET HEAD
2
32
91312-04025
BOLT HEX,SOCKET HEAD
6
33
92990-04200
WASHER,PLAIN
4
