18 13 23 31 40 11 9 19 11 1 14 12 13 34,22 38 20 37 27 23 6 31 14 28 37 4 30 12 16 20 36 3 6 21 29 39 6 4 28 30 15 8 10 10 3 35,22 17 19 9 21 6 39 18 8 26 40 16 25 24 2 33 5 32 7 18 13 23 31 40 11 9 19 11 1 14 12 13 34,2…
30
7
26
27
29
14
3
1
2
11
31
12
9
15
16
30
30
26
25
16
25
16
30
30
26
25
8
30
13
25
16
29
10
6
26
17
28
28
8
21
20
28
18
4
8
23
5
22
4
7
28
19
24
5
14
8
15

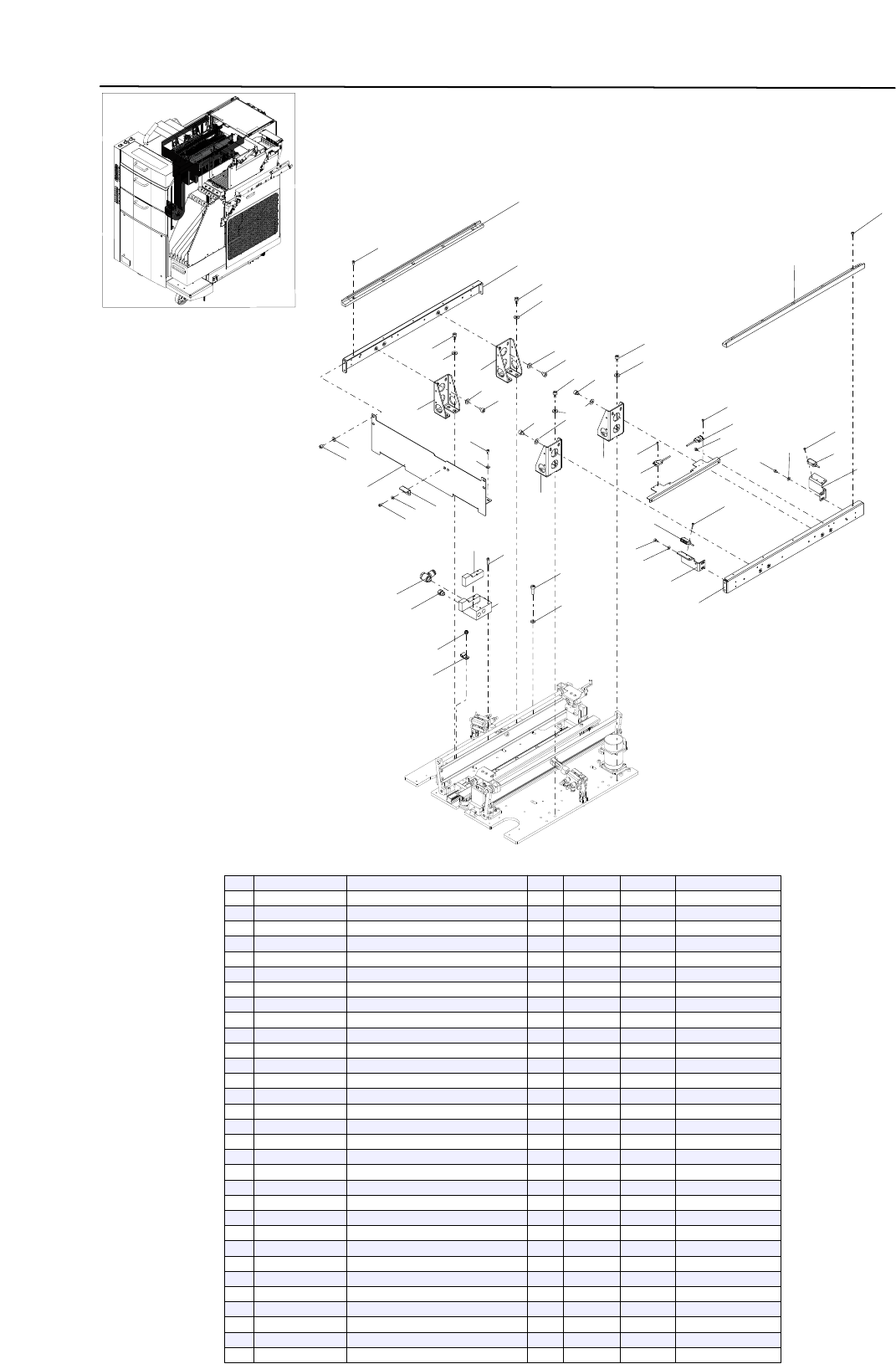

Hook-guide
Moving-axis
KLS-1303
4-4
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$KM-10
MUFFLER
1
2
$NK-3N
NYLON CLIP
13
3
$SL6-01
JOINT
1
4
90112-02J004
BOLT HEX,SOCKET HEAD
4
5
90115-02J010
BOLT, HEX. SOCKET HEAD
4
6
91312-03004
BOLT HEX,SOCKET HEAD
2
7
91312-03005
BOLT HEX,SOCKET HEAD
4
8
91312-03006
BOLT HEX,SOCKET HEAD
16
9
91312-03030
BOLT HEX,SOCKET HEAD
4
10
91312-04005
BOLT HEX,SOCKET HEAD
4
11
KH2-M7101-00
VALVE 1
1
12
KHW-M8582-40
VALVE
1
13
KLS-M1802-02
COVER,HOOK 2
1
14
KLS-M1803-00
GUIDE,FRAME 1
2
15
KLS-M1804-00
GUIDE,HOOK 2
2
16
KLS-M1806-00
BRACKET
4
17
KLS-M1809-01
BRACKET,SENS.
1
18
KLS-M1810-00
BRACKET,SENSOR 2
1
19
KLS-M1811-00
BRACKET,SENSOR 2
1
20
KLS-M1858-00
COVER,HOOK 3
1
21
KLS-M653F-00
SEN.PALLET CHK1 ASSY
1
22
KLS-M653F-10
SEN.PALLET CHK2 ASSY
1
23
KLS-M653G-00
SEN.PICK PALLET ASSY
1
24
KLS-M653G-10
SEN.MGZ PALLET ASSY
1
25
91312-05006
BOLT HEX,SOCKET HEAD
8
26
91312-05008
BOLT HEX,SOCKET HEAD
16
27
91312-05016
BOLT HEX,SOCKET HEAD
6
28
92902-03200
WASHER,PLAIN
10
29
92902-04200
WASHER,PLAIN
10
30
92902-05200
WASHER,PLAIN
24
31
97602-04306
SCREW PAN HEAD W/WASHER
13
18
13
23
31
40
11
9
19
11
1
14
12
13
34,22
38
20
37
27
23
6
31
14
28
37
4
30
12
16
20
36
3
6
21
29
39
6
4
28
30
15
8
10
10
3
35,22
17
19
9
21
6
39
18
8
26
40
16
25
24
2
33
5
32
7
18
13
23
31
40
11
9
19
11
1
14
12
13
34,22
38
20
37
27
23
6
31
14
28
37
4
30
12
16
20
36
3
6
21
29
39
6
4
28
30
15
8
10
10
3
35,22
17
19
9
21
6
39
18
8
26
40
16
25
24
2
33
5
32
7
Hook-link
Moving-axis
KLS-1404
4-5
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
$SCC4-M5-A
SPEED CONTROLLER
4
2
90112-2AJ008
BOLT, HEX.SOCKET HEAD
2
3
90152-03J03
SCREW SET
4
4
90152-03J06
SCREW SET
4
5
90990-28J031
WASHER,PLAIN
2
6
91312-03006
BOLT HEX,SOCKET HEAD
16
7
91312-03008
BOLT HEX,SOCKET HEAD
2
8
91312-04012
BOLT HEX,SOCKET HEAD
8
9
KLH-M91B6-10
WASHER 10
4
10
KLH-M91BM-00
OIL FREE BUSH 1
4
11
KLS-M1408-00
KNUCKLE
4
12
KLS-M1823-00
BEARING(OILLESS)
4
13
KLS-M1824-01
BASE,HINGE
2
14
KLS-M1825-01
BASE,HINGE
2
15
KLS-M1826-01
JOINT
2
16
KLS-M1827-00
PIN,HINGE
2
17
KLS-M1834-01
BRKT.,CYL.
4
18
KLS-M1841-00
WASHER 08
4
19
KLS-M1855-00
STOP PLATE
4
20
KLS-M1856-00
STOP PIN
4
21
KLS-M1857-00
ADJUSTING SCREW
4
22
KLS-M1859-00
CYLINDER
2
Cylinder Only
23
KLS-M18A0-00
LINK,HOOK ASSY
2
24
KLS-M18A1-00
BUSH
2
25
KLS-M18A2-00
HOLDER,BUSH
2
26
KLS-M18A3-00
OIL FREE BUSH
4
27
KLS-M18B1-00
SHAFT
2
28
KLS-M18B2-00
LINK
4
29
KLS-M18B3-00
JOINT
2
29-1
KLS-M18B3-01
JOINT
2
OK
MK30144-2013/3/29
30
KLS-M18B4-00
PIN,PARALLEL
4
31
KLS-M18D0-01
HOOK SUB ,HOOK ASSY.
2
32
KLS-M18D5-00
SHAFT
2
33
KLS-M18D7-01
CLAMP
2
34
KLS-M653M-00
CYLINDER HOOK1 ASSY
1
Cylinder & Sensor
35
KLS-M653M-10
CYLINDER HOOK2 ASSY
1
Cylinder & Sensor
36
91312-05010
BOLT HEX,SOCKET HEAD
2
37
91312-05012
BOLT HEX,SOCKET HEAD
8
38
91312-05016
BOLT HEX,SOCKET HEAD
2
39
95302-04600
NUT HEXAGON
4
40
99009-15400
CIRCLIP
4
40
14
6
12
36
25
7
28
27
5
34
18
10
13
21
2
19
22
35
35
4
24
11
35
24
4
36
9
26
26
15
39
20
37
3
16
3
38
6
29
33
1
34
17
35
30
31
8
9
23
32
6
28
Hook-drive
Moving-axis
KLS-1303
4-6
NO
Parts_No.
Parts_Name
Q_ty
Remarks
Compati
Revision_No._date
1
90563-04J350
SPACER
2
2
90933-01J200
BEARING
1
3
90933-03J106
BEARING
2
4
90K81-200004
CAP C4
14
5
90KC0-012B08
AC SERVO MOTOR
1
6
91312-03006
BOLT HEX,SOCKET HEAD
11
7
91312-03008
BOLT HEX,SOCKET HEAD
4
8
91312-03010
BOLT HEX,SOCKET HEAD
4
9
91312-04006
BOLT HEX,SOCKET HEAD
6
10
91312-04008
BOLT HEX,SOCKET HEAD
4
11
KLS-M1801-01
BASE,HOOK AXIS
1
12
KLS-M1805-00
PLATE,BRG.
1
13
KLS-M1807-00
SHAFT
1
14
KLS-M1808-00
PULLEY
1
15
KLS-M1812-00
HOLDER,PULLEY
1
16
KLS-M1813-00
PULLEY
1
17
KLS-M1814-00
BELT,HOOK AXIS
1
18
KLS-M1815-00
BELT ,MOTOR
1
19
KLS-M1816-00
BRKT.,MOTOR
1
20
KLS-M1819-00
SHAFT,PULLEY 1
1
21
KLS-M1821-00
NUT
2
22
KLS-M1822-00
PULLEY
1
23
KLS-M1829-00
COVER,BELT
1
24
KLS-M1830-00
COLLAR
2
25
KLS-M1838-00
HOLDER,BEARING
1
26
KLS-M1842-00
LM RAIL&BLOCK 15,410
2
27
KLS-M1852-00
DRIVEN PULLEY2
1
28
KLS-M18C0-00
SLIDER,HOOK ASSY.
2
29
KLS-M18C1-00
BLOCK,BASE
2
30
KLS-M18C2-00
BRACKET,GEAR
2
31
KLS-M18C3-00
HOLDER,BELT 2
2
32
KLS-M18C4-00
RACK
2
33
KLS-M18C5-00
BRACKET
2
34
91312-04010
BOLT HEX,SOCKET HEAD
8
35
91312-04012
BOLT HEX,SOCKET HEAD
22
36
91312-04016
BOLT HEX,SOCKET HEAD
2
37
91312-05012
BOLT HEX,SOCKET HEAD
2
38
92902-03200
WASHER,PLAIN
1
39
92902-05200
WASHER,PLAIN
2
40
99009-10400
CIRCLIP
1
