Installation
Hardware Installation 4.2.3 Datalogic Scanner’s Cradle BC-8030-BT (Bluetooth)
24 Installation Manual SIPLACE Setup Center 6.0
4.2.3.2
4.2.3.2 Connect cradle via USB
Connect cradle via USB
Installation of the USB-COM driver
Step 1
The installation packages for 32 bit and 64 bit operating systems are located in the “\3rdparty install-
er\Datalogic\USB-COM Driver” directory of the Setup Center installation CD.
► Choose the appropriate installation package for your operating system.

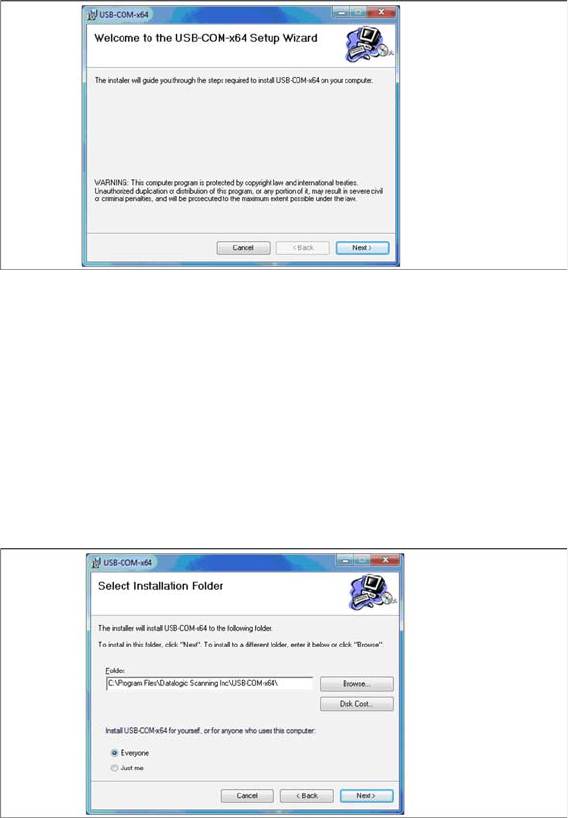

Step 2
► Click Next.
Step 3
► The Select Installation Folder dialog box prompts you to enter the name of the folder in which the
software should be installed. The system suggests a default destination folder for you.
► However, you can click the Browse button to open a dialog box in which you can enter or select the
path you want to use. If the folder you specify does not exist, it is created after having accepted a
confirmation dialog.
► Select the option Everyone.
► Click Next.
Installation
4.2.3 Datalogic Scanner’s Cradle BC-8030-BT (Bluetooth) Hardware Installation
Installation Manual SIPLACE Setup Center 6.0 25

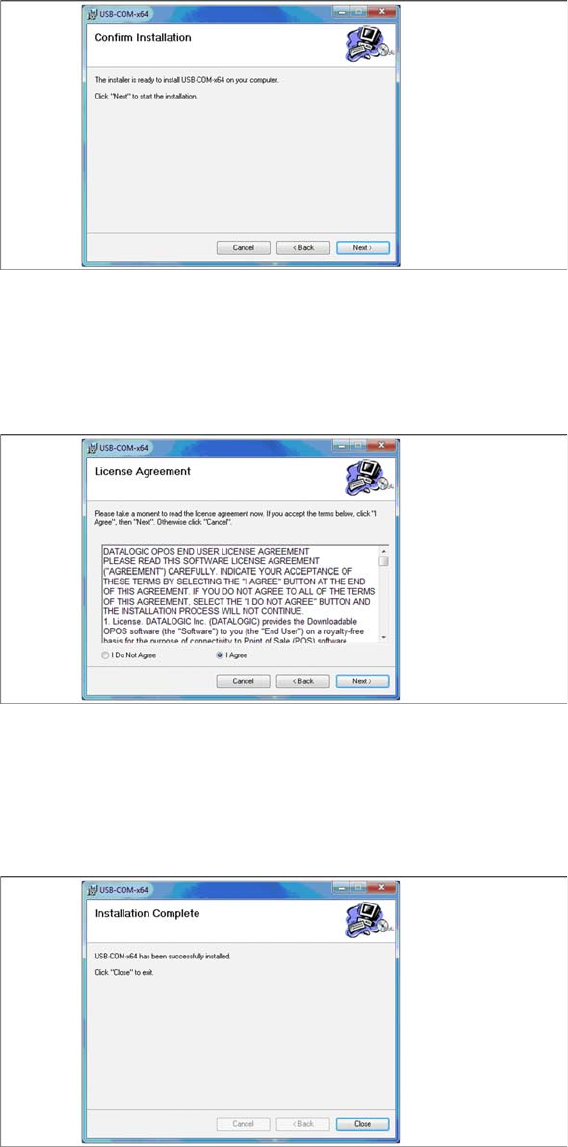

Step 4
► Click Next.
Step 5
► Read the license agreement relating to use of this software and select I Agree to accept the license
agreement.
► Click Next.
Step 6
► The installation of the driver software starts.
► The "Installation Complete" window appears if the installation has been completed successfully.
► Click Close.
Installation
Hardware Installation 4.2.4 Motorola MC70/MC75 1D/2D barcode scanner
26 Installation Manual SIPLACE Setup Center 6.0
Steps to configure the cradle to the USB-COM interface
The device may be configured to a different interface ex factory, the following steps switch to USB-COM
port.
► Please scan the following barcodes in the order they are printed:
► Scan the “Link by Contact” – Barcode from the cradle and put the scanner into the cradle.
⇨ The scanner is now registered on the cradle.
► Scan the barcode "USB-COM" to set the interface to USB.
The cradle is now ready for use with Setup Center.
4.2.4
4.2.4 Motorola MC70/MC75 1D/2D barcode scanner
Motorola MC70/MC75 1D/2D barcode scanner
4.2.4.1
4.2.4.1 System Requirements
System Requirements
The following components are required for the operation of the scanner:
▪ WLAN-infrastructure (not included)
▪ MC70 / MC75 scanner integrated in WLAN-infrastructure and accessible with "ping" windows-com-
mand.
▪ Required scanner firmware versions
– MC70: 05.43 or higher
– MC75: 01.23 or higher
4.2.4.2
4.2.4.2 Configurate WLAN on Scanner
Configurate WLAN on Scanner
Please configure the barcode scanner for the operation within WLAN network - as described in docu-
ment Installation Manual WLAN Infrastructure for SIPLACE (item no. 00195606-xx).
NOTICE
The scanner might be delivered with a different firmware version. Please install the firmware
version listed above. It is located on the software DVD "SIPLACE Support Media DVD1” in the
section “SIPLACE Products” (See "4.2.4.3 MC70/MC75 Prerequisites installation" [ ➙ 27]).
Please observe by all means the enclosed documentation.
