4.4.5 Motorola / Symbol MC70/MC75 Scanner Configuration
Motorola / Symbol MC70/MC75 Scanner Configuration
4.4.5.1
4.4.5.1 Configurate Setup Center
Configurate Setup Center
The communication between Setup Center and scanner is achieved by network connection (socket).
Setup Center takes the role of the server and the scanner that one of the client.

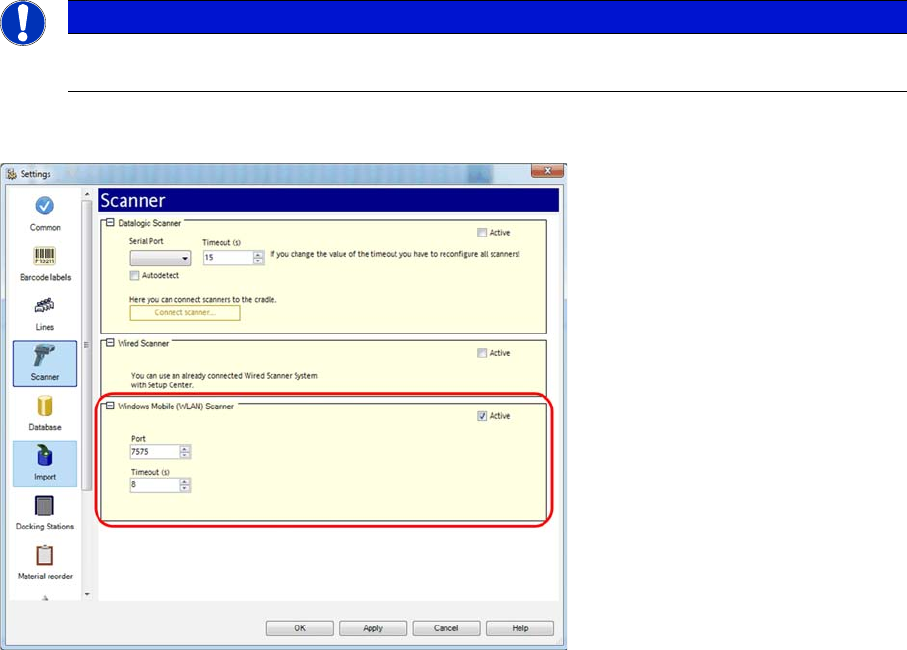

Start Setup Center and open the setting via Tools -> Settings. Within the group Scanner the following
entry is now visible:
Activate the interface by selecting "Active". Check the fire wall settings whether the port chosen by Setup
Center is enabled and correct it if necessary. To accept the settings close the configuration dialog with
"OK".
NOTICE
Please configurate the barcode scanner for the operation within WLAN network - as described
in document Installation Manual WLAN Infrastructure for SIPLACE (item no. 00197199-xx).
Installation
4.4.5 Motorola / Symbol MC70/MC75 Scanner Configuration Steps to Perform After Installation
Installation Manual SIPLACE Setup Center 6.0 89
4.4.5.2
4.4.5.2 Configure Setup Center Client
Configure Setup Center Client
After the installation routine has restarted the scanner the Setup Center Client is started automatically.

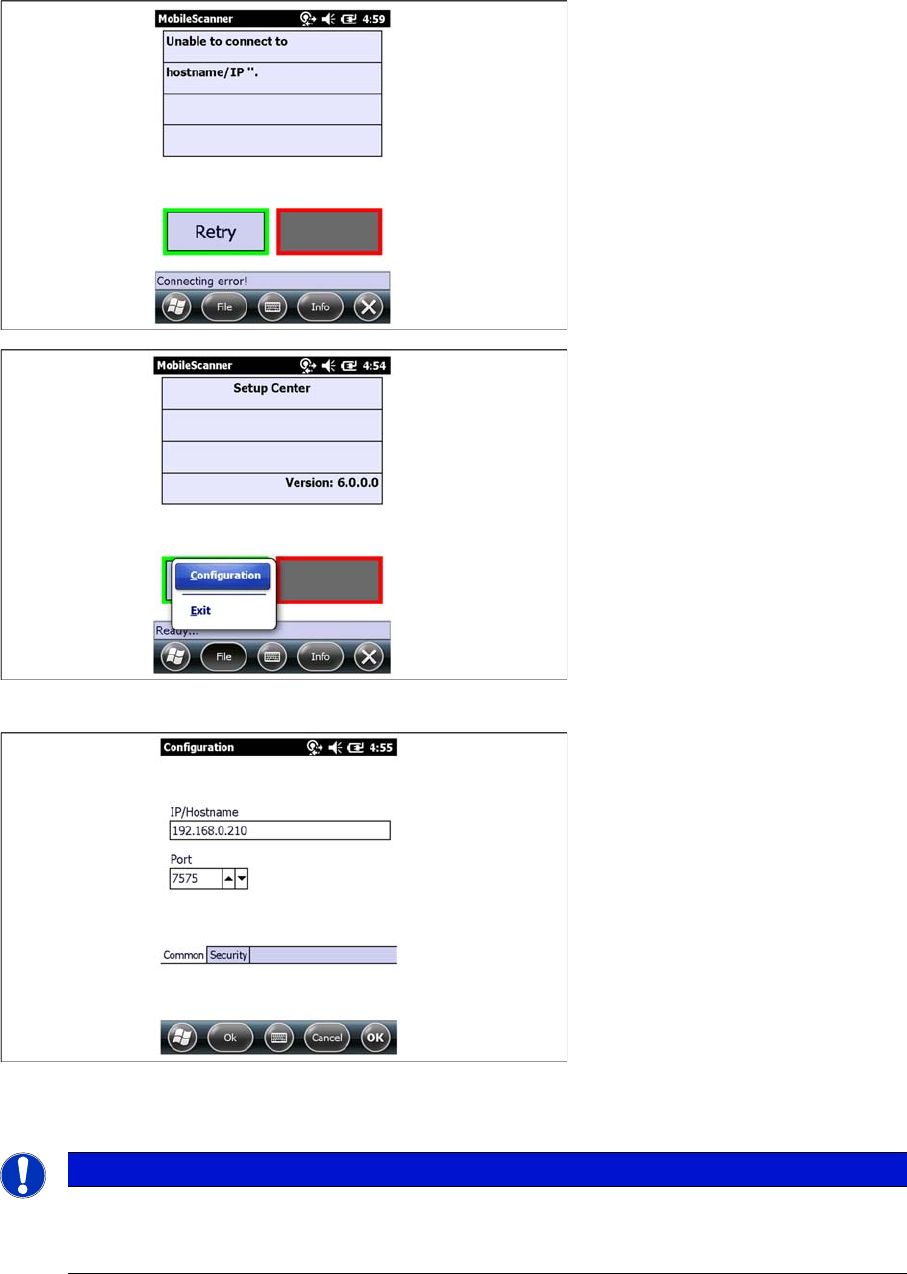

► Open the configuration dialog via File->Configuration
► Type the IP-address/name of the PC where Setup Center is installed.
► Enter the port for which the scanner interface is configurated (default:7575).
NOTICE
Volume of the buzzer
The volume of the buzzer is adjusted via the side (left) located controls on the device. The buzz-
er gives accustical feedback in operation mode of Setup Center.
Installation
Steps to Perform After Installation 4.4.5 Motorola / Symbol MC70/MC75 Scanner Configuration
90 Installation Manual SIPLACE Setup Center 6.0

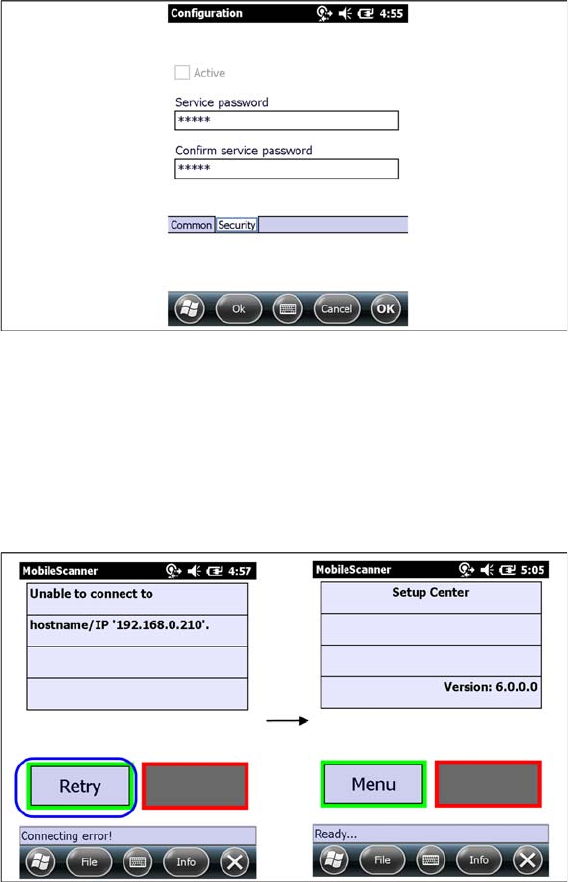

► Here you can set a password to prevent modification on the scanner configuration.
For the first editing of the configuration the password is empty. In this case safety is deactivated. You
can set a password now. By confirmation with "OK" all settings were saved.
4.4.5.3
4.4.5.3 Establishing Connection
Establishing Connection
► Start Setup Center.
► Click on "Connect" to establish a connection to Setup Center.
In case the connection fails check the network settings again.
The software is now successfully configured.
