Installation

4.2.4 Motorola MC70/MC75 1D/2D barcode scanner Hardware Installation

Installation Manual SIPLACE Setup Center 6.0 27

4.2.4.3

4.2.4.3 MC70/MC75 Prerequisites installation

MC70/MC75 Prerequisites installation

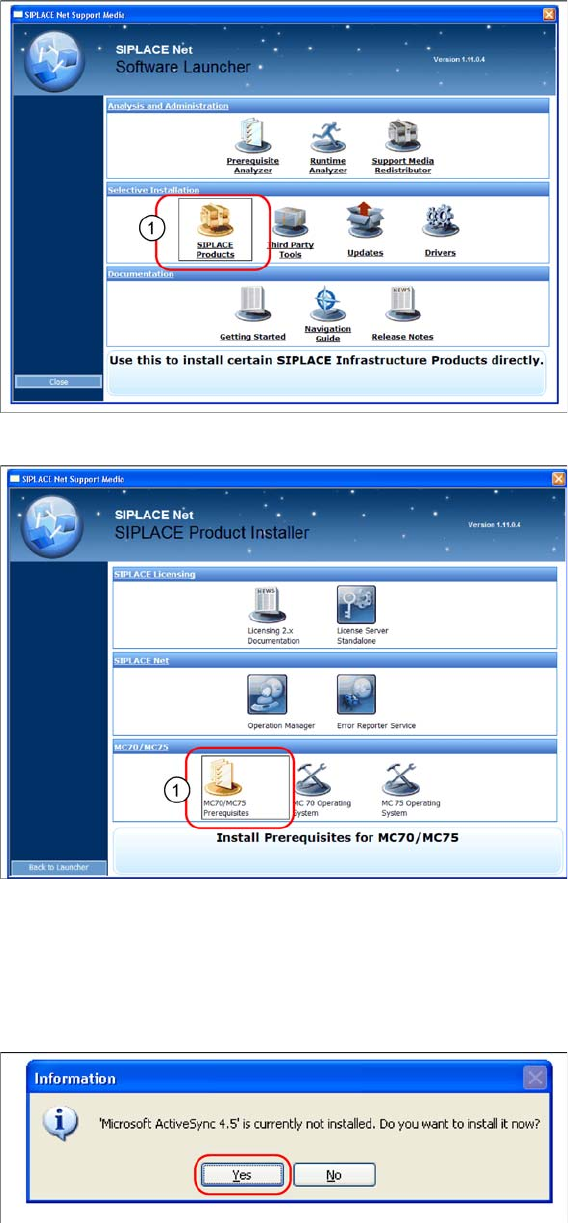

The installation for MC70 Prerequisites is located on the DVD "SIPLACE Support Media DVD1" in the

section SIPLACE Products (1).

► Execute the MC70 / MC75 Prerequisites (1).

Step 1: ActiveSync / Mobile Device Center

The “MC70 / MC75 Prerequisites” setup tool checks if the necessary communication program (Ac-

tiveSync or Mobile Device Center) is present. If this is not the case, the program can be installed.

Windows XP: ActiveSync

If ActiveSync is not installed on the system, the following message box appears.

► Select Yes to start the installation of Microsoft ActiveSync. Make sure that the scanner is not yet con-

nected to the basic station.

Installation

Hardware Installation 4.2.4 Motorola MC70/MC75 1D/2D barcode scanner

28 Installation Manual SIPLACE Setup Center 6.0

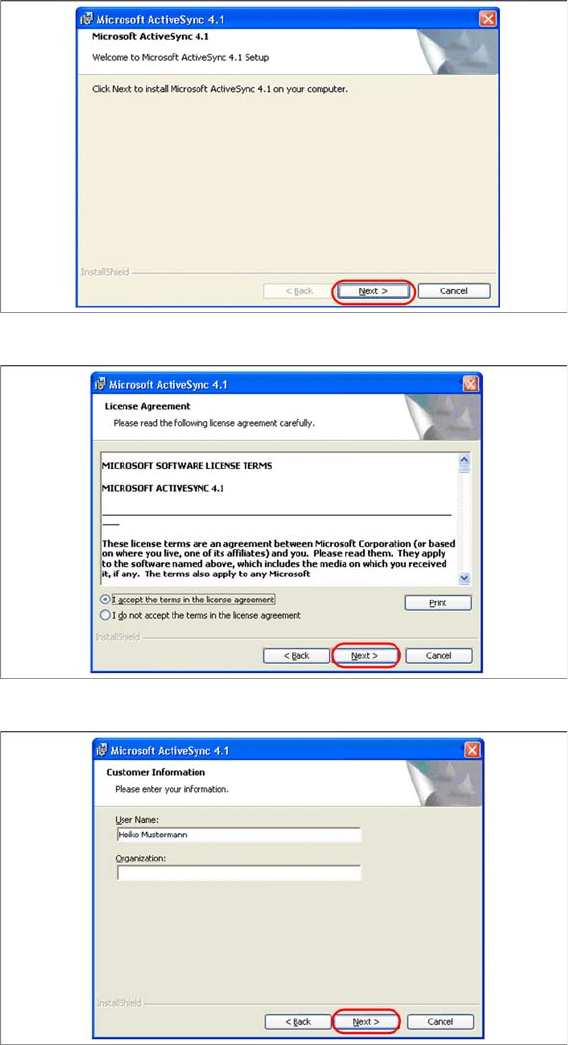

Install ActiveSync

► Click on "Next" to proceed.

► Accept the licensing agreements and select "Next".

► Enter your user information and select "Next".

Installation

4.2.4 Motorola MC70/MC75 1D/2D barcode scanner Hardware Installation

Installation Manual SIPLACE Setup Center 6.0 29

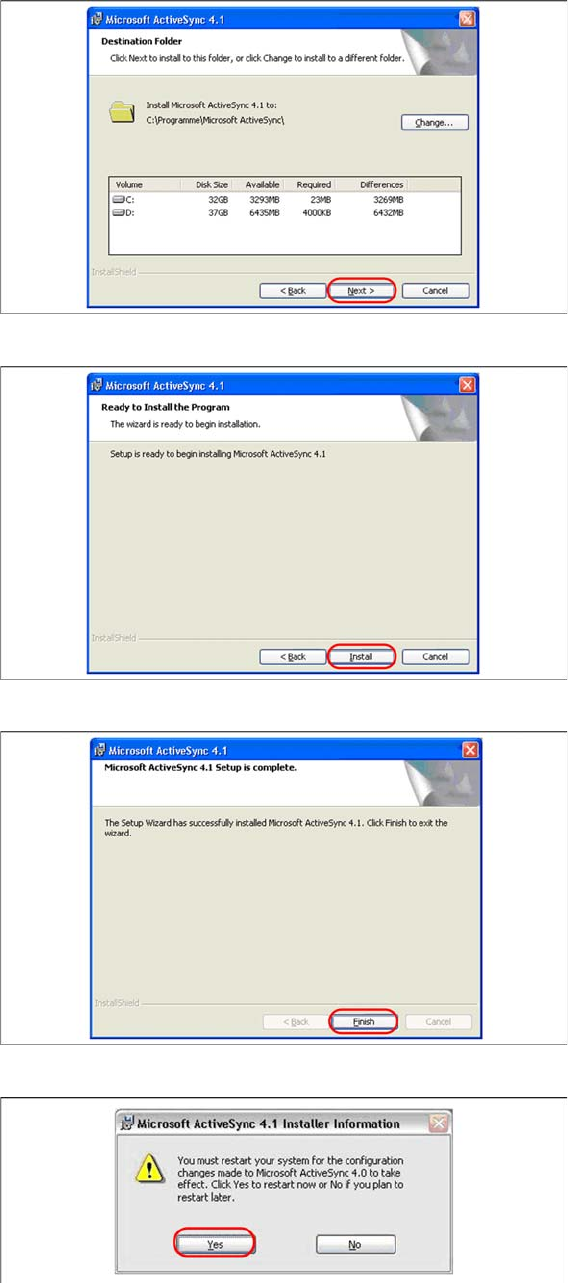

► Select the path for copying the installation files and select "Next".

► Select "Install" to start with the installation of Microsoft ActiveSync.

► Click on "Finish" to terminate the Microsoft ActiveSync Installation.

► In case that a restart is necessary please select "Yes".

► Please start MC70 Prerequisite installation from CD after the restart.
