Installation Hardware Installation 4.2.4 Motorola MC70/MC75 1D/2D barcode sca nner 30 Installation Manual SIPLACE Setup Center 6.0 Windows Vista: Mobile Device Center If Windows Mobile Device Center is not installed on t…
Installation
4.2.4 Motorola MC70/MC75 1D/2D barcode scanner Hardware Installation
Installation Manual SIPLACE Setup Center 6.0 29
► Select the path for copying the installation files and select "Next".
► Select "Install" to start with the installation of Microsoft ActiveSync.
► Click on "Finish" to terminate the Microsoft ActiveSync Installation.
► In case that a restart is necessary please select "Yes".
► Please start MC70 Prerequisite installation from CD after the restart.
See also
4.2.4.3.2 Step 2: AppCenter [ ➙ 30]
Installation
Hardware Installation 4.2.4 Motorola MC70/MC75 1D/2D barcode scanner
30 Installation Manual SIPLACE Setup Center 6.0

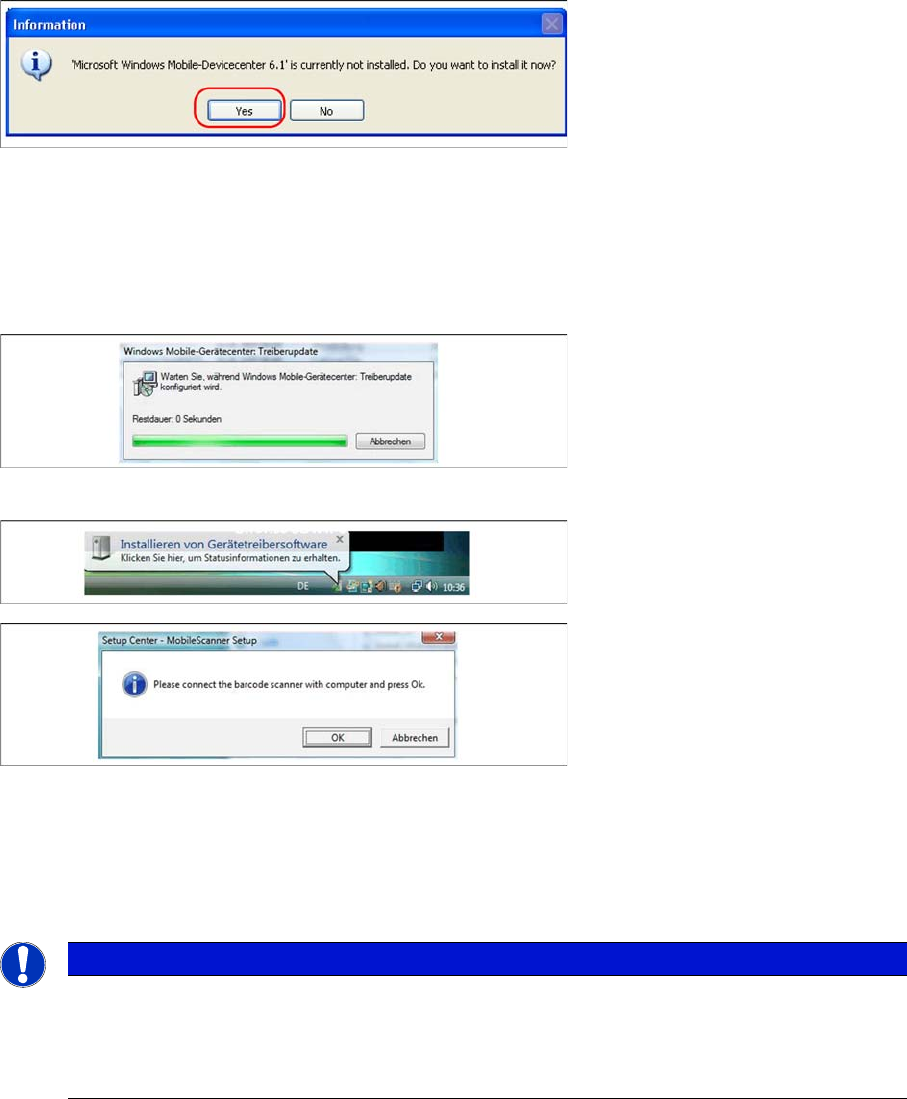

Windows Vista: Mobile Device Center
If Windows Mobile Device Center is not installed on the system, the following message box appears.
► Select “Yes” to start the installation of Mobile Device Center. Make sure that the scanner is not yet
connected to the basic station.
If Windows Mobile Device Center is not installed on the system, the installation of Mobile Device Center
will be executed. Make sure that the scanner is not yet connected to the basic station.
Install Mobile Device Center
► The installation of Mobile Device Center is beginning.
► Confirm with "OK".
See also
4.2.4.3.2 Step 2: AppCenter [ ➙ 30]
Step 2: AppCenter
NOTICE
In case of an upgrade installation exit the Symbol AppCenter before you start with the installa-
tion procedure.
► Exit AppCenter with "Tools → Exit…".
► Enter the defined AppCenter password, to confirm exit (default value is "odyssey").
Installation
4.2.4 Motorola MC70/MC75 1D/2D barcode scanner Hardware Installation
Installation Manual SIPLACE Setup Center 6.0 31
Steps on Setup Center computer
Place the scanner in its cradle if this has not already been done. The installation program automatically
detects the scanner type (Device type) and lists the necessary software packages for the installation.
► Click on Install to start the installation of the software packages.
► Please put the scanner into cradle, and press Continue to start the installation of Symbol AppCenter.
The transfer of the components to the scanner is beginning.
NOTICE
Once the ActiveSync is installed on the Setup Center computer rerun the MC70 / MC75 Pre-
requisites from the support Media DVD. The following dialog appears.
NOTICE
The installation program checks if the firmware version of the scanner complies with the mini-
mum requirement. If this is not the case, update your scanner firmware first.
