6. Setting Method
Set
tings to use this function are as follows.
Table 6.1 Machine Setting
Menu Description
Set [Chip Vacuum Check] to “Use”.
Enter a value in [Parts Fall Vacuum Level] of each nozzle.
The range is 0 to 255.
When “0” is entered, Chip Vacuum Check is not performed.
(Recommended value is 12) ▲1
2nd SMT Engineering Division Software Group
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50395
8/11
Table 6.2 Board data
Menu Description
[Board] – [Board]
Set [Vacuum Check] to “Check”.
[Parts] – [Pick]
Set [Pick&Mount Vacuum Check] to “NORMAL CHECK” or
“SPECIAL CHECK”.
2nd SMT Engineering Division Software Group
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50395
9/11
7. Log Function
7.1 Overview
With this function enabled, a log is output when “Ea13143：PARTS DROP BEFORE
MOUNT” occurs. Destination of the log is specified on the software setting.
7.2 Format
File name of the log is “ChipVacuumCheck_T**_H**_yymmddhhmmss.log”.
（“T**” means table number of the error. “H**” means head number of the error.）
The format is as follows.

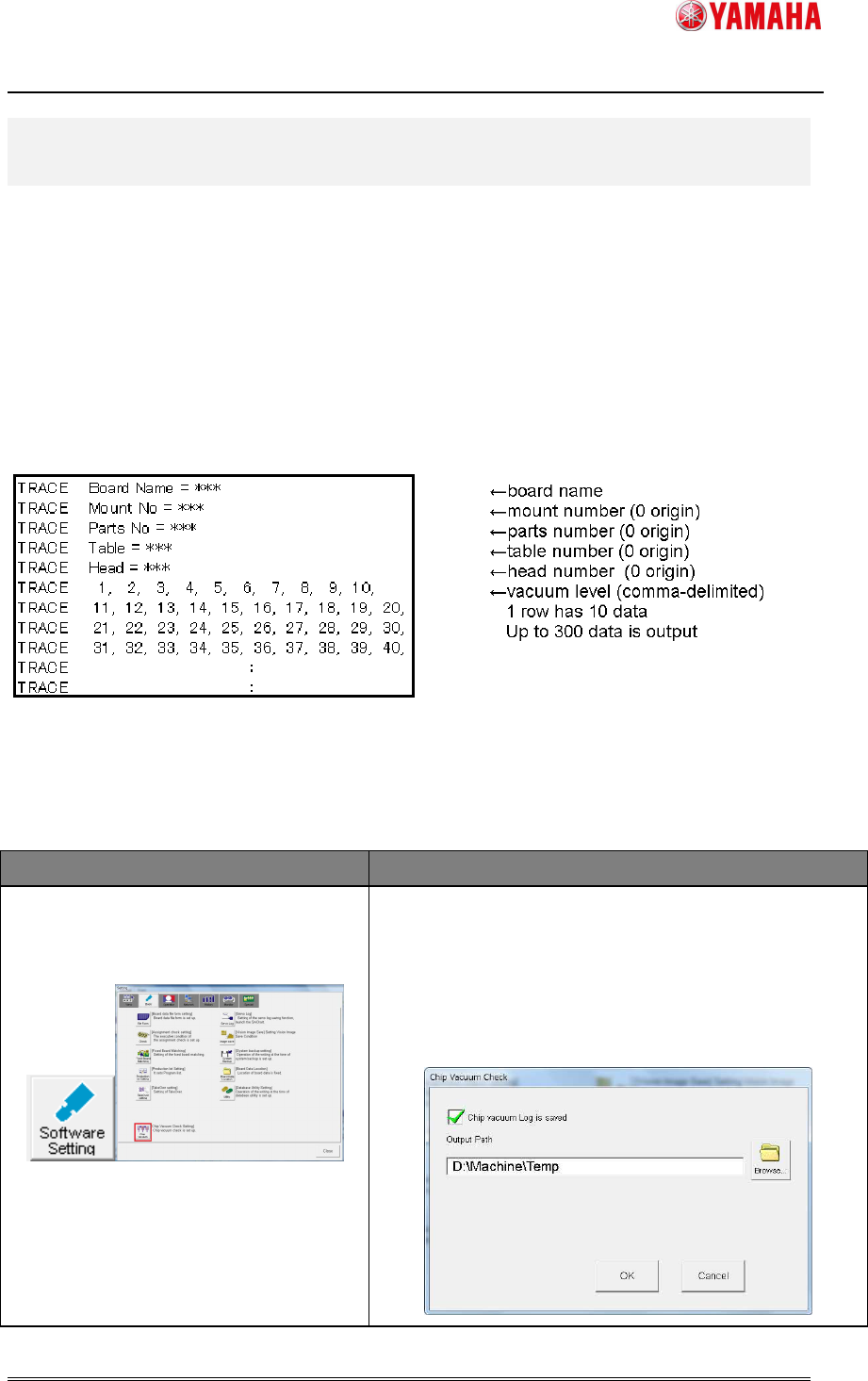

Fig 7.1 Format
7.3 Setting Method
Table 7.1 Setting Item (Software Setting)
Menu Description
[Software Setting]-[Basic]
-[Chip Vacuum]
Check the [Chip Vacuum Log is saved] check box.
Then, enter a destination folder path into [Output Path].
※ The destination folder needs be in a drive with
5MByte or more free space. (If a drive with less
than 5MByte free space, the log is not output.)
