2 Maintenance manual Greasing plungers with tool Greasing plungers
05/2006 Edition
12

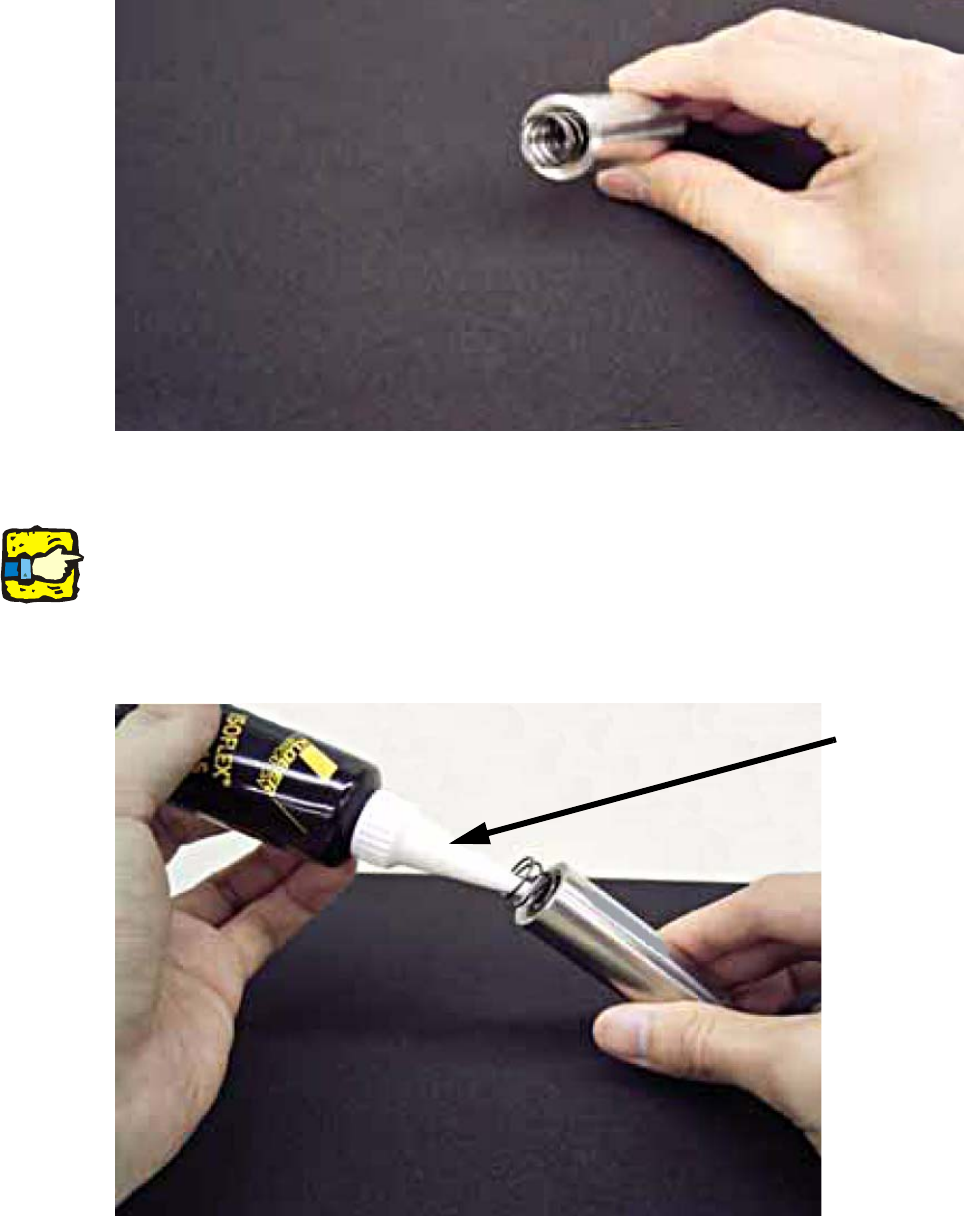

: Insert spring into the cylinder.
2
: Please use adaptor (accompaniment) of ISOFLEX TOPAS NCA 52 and fill TOPAS into the cy-
linder.
2
This tool doesn’t like air in the cylinder. 2
So please be careful to the air catch into the cylinder as much as possible. 2
Because if air is inside the cylinder with ISOFL
EX T
OPAS NCA 52, sometimes the greasing result
of the plunger will be not perfect. 2
Adapter
2
Greasing plungers 2 Maintenance manual Greasing plungers with tool
05/2006 Edition
13

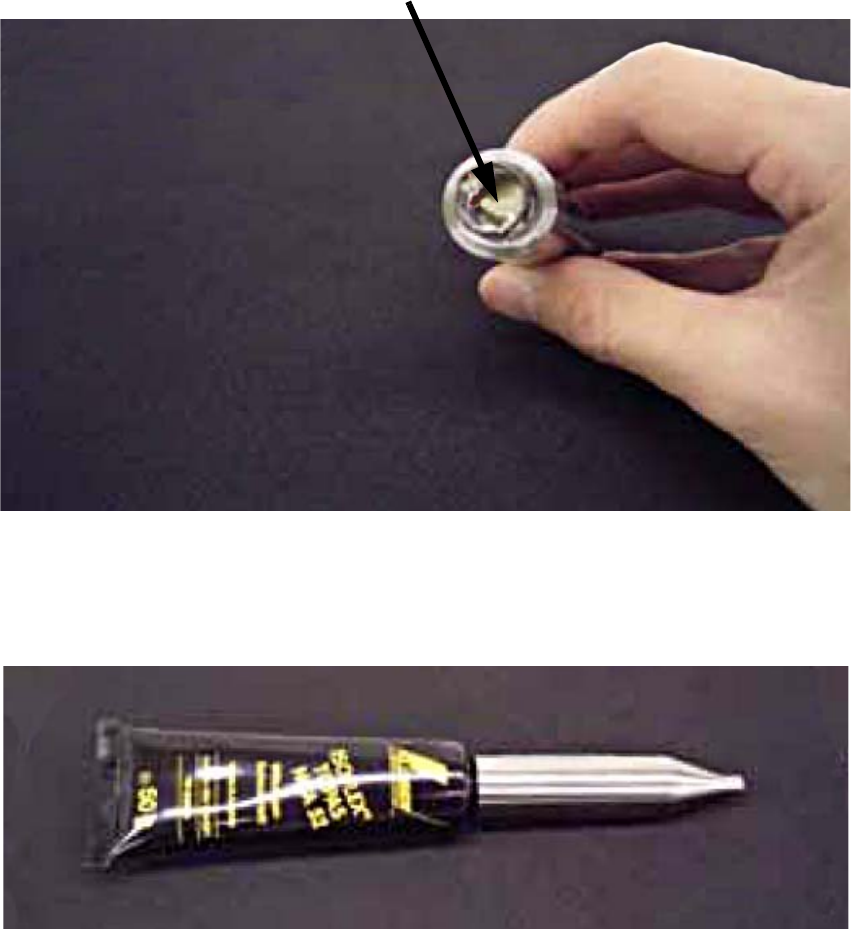

Situation after filling ISOFLEX TOPAS NCA 52 in the cylinder: 2
ISOFLEX TOPAS NCA 52
2
2
: Detach adapter from TOPAS tube, then pull out air from the TOPAS tube and twist set it to the
cylinder.
2
2
2
2
2
2
2 Maintenance manual Greasing plungers with tool Greasing plungers
05/2006 Edition
14
2.3 Use

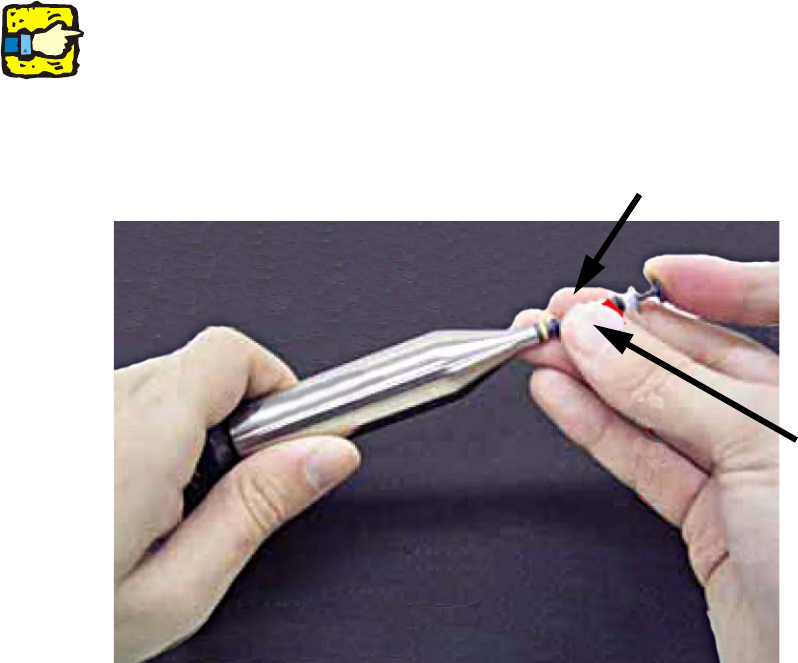

: After cleaning plunger, then cetainly hold it by fingers and straight insert into the cylinder.
2
When insert the plunger, the tool spring will be strong. So please support plunger side by fingers.2
If the support is not certainly, the insertion will
be not smooth and sometimes has possibility to
break the plunger. 2
Support by finger
Support by finger
