00195066-0102-MM-VEN_DE_EN.pdf - 第16页
2 Maintenance manual Greasing plungers w ith tool Greasing plungers 05/2006 Edition 16 2 2 2
Greasing plungers 2 Maintenance manual Greasing plungers with tool
05/2006 Edition
15

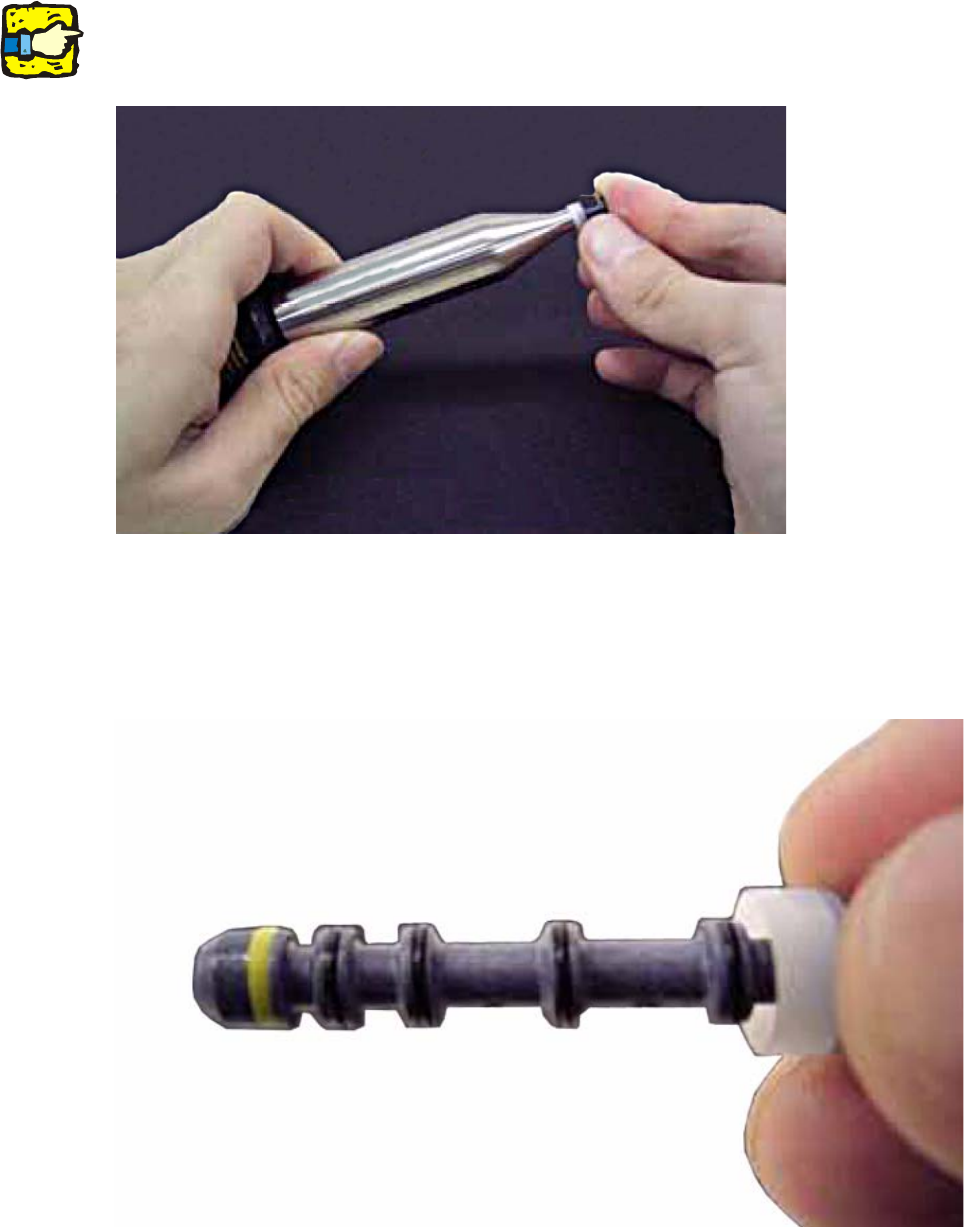

: One time insert until end of stroke, then 4 or 5 times push and pull with 10 to 15 mm stroke.
2
Pay attention to have enough grease in the toolt! 2
2
2
2
: After take out the plunger, then confirm of the greasing situation of out side O ring surface.
Judgment point:
Shine surface of the O ring by TOPAS is OK.
2
2 Maintenance manual Greasing plungers with tool Greasing plungers
05/2006 Edition
16
