Let’s Revise:

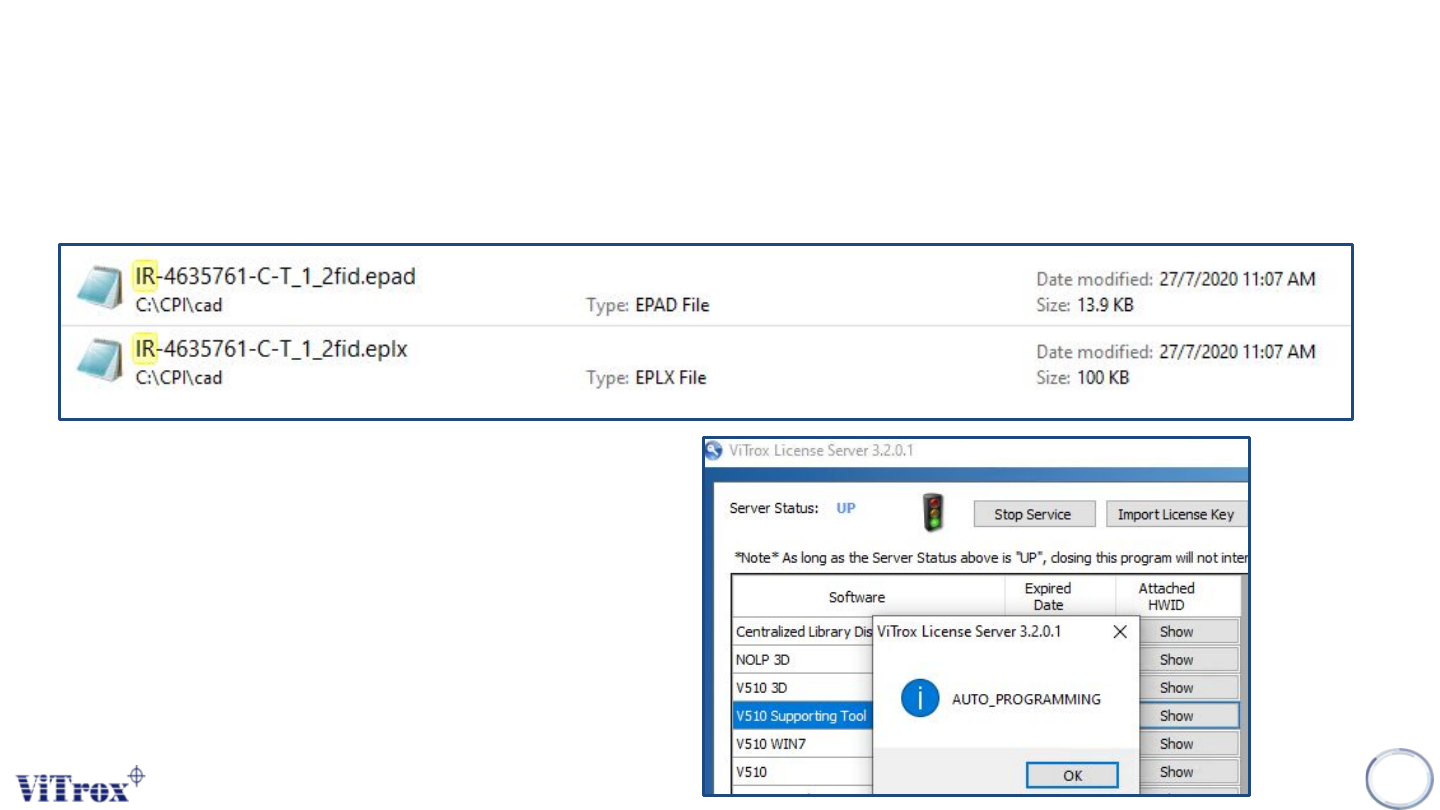

To perform Auto Train/ Auto Programming the machine should have
1. AI License (V510 Supporting Tool.vkey)
2. EPlx
3. EPad
AI programming 2.0
Copyright © ViTrox All Rights Reserved.
42
Packages with AI Smart Programming 2.0
Phase 1 (Released Q3 2020):
✔ Chip Capacitor
✔ Chip Resistor
✔ Transistor SOT
✔ BGA
✔ Resistor/Capacitor Array
✔ QFN
✔ SOIC
★
Covering ~70-80% component packages
Phase 2 (Target release Q4 2021):
✔ SOD
✔ LED
✔ Leaded Crystal
✔ Crystal Oscillator
✔ Tantalum Capacitor
✔ E-cap
✔ Inductor
★
Covering up to ~90% component packages
Tantalum Capacitor
Copyright © ViTrox All Rights Reserved.
Absence
Coplanarity &
Billboard
Solderability Alignment
The Algorithm setup by AI is able to detect all common SMT defects
Body dimension, Body Height
Solder Joint Area
Tombstone
AI Smart Programming 2.0
(Comprehensive Inspection Coverage)
