Page +$1:+$ 79 SM481 PLUS Head Ass’y(2/5) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference
Page
+$1:+$
78
SM481
PLUS
Head Ass’y(2/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
27 FC09-001560A BRACKET-FLY_SIDE_PLATE2 1
28 FC30-000975A PLATE-FID_CAM2_COVER 1
29 AM03-007781A ASSY,HEAD-SM481_FLY_OUTER_ASSY 1
30 FC36-001068A SHEET-FLY_IO_TOP_COVER 5
31 FC09-001516A BRACKET-SM411_PLUS_FLY_OUTER_BRACKET_B 1
32 FC09-002300A BRACKET-FLY_OUTER_BRACKET_A 1
33 AM03-007781A ASSY,HEAD-SM481_FLY_OUTER_ASSY 1
37 AM03-014949A ASSY,BOARD-SM471 HOME SENSOR 1
AM03-015112A CABLE ASSY-HEAD_HOME_SENSOR 1
FC36-001010A SHEET-Z_SENSOR_BOARD_SHEET,0.2 1
39 FC29-900614 HEX SUPPORT [M3*20 (BOLT-NUT)] 2
40 AM03-020609A ASSY,BOARD-FIDUCIAL_OUTER_PCB_ASSY 1
41 FC36-001069A SHEET-FLY_IO_BOTTOM_COVER 1
Page
+$1:+$
79
SM481
PLUS
Head Ass’y(2/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
Page
+$1:+$
80
SM481
PLUS

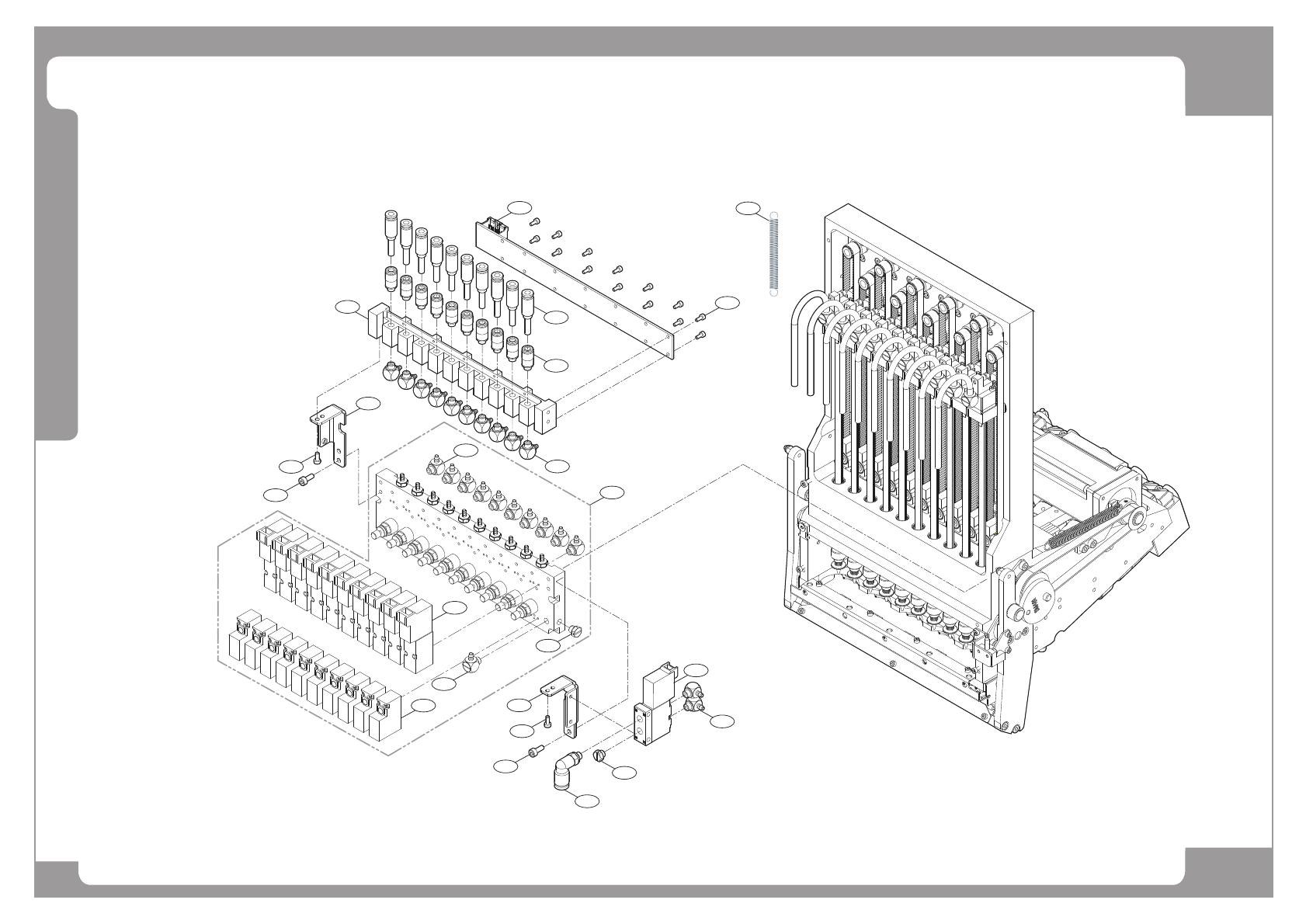

Head Ass’y(3/5)
1
12
2
8
12
13
12
7
6
9
3
10
11
4
5
5
15
14
13
14
16
17
18
