BASE SYSTEM 3-24 AP Excel Series Drawings Guide Ball Screw and Linear Bearing Kit AP25-89 (4 of 4) AP2589_4 6 6 Shaded Areas not Part of Assembly . *See IPB25-07
. . . . .
BASE SYSTEM
AP Excel Series Drawings Guide 3-23
Ball Screw and Linear Bearing Kit AP25-89 (3of 4)
AP2589_3
5
Shaded Areas not Part of Assembly.
*See IPB25-06
BASE SYSTEM
3-24 AP Excel Series Drawings Guide

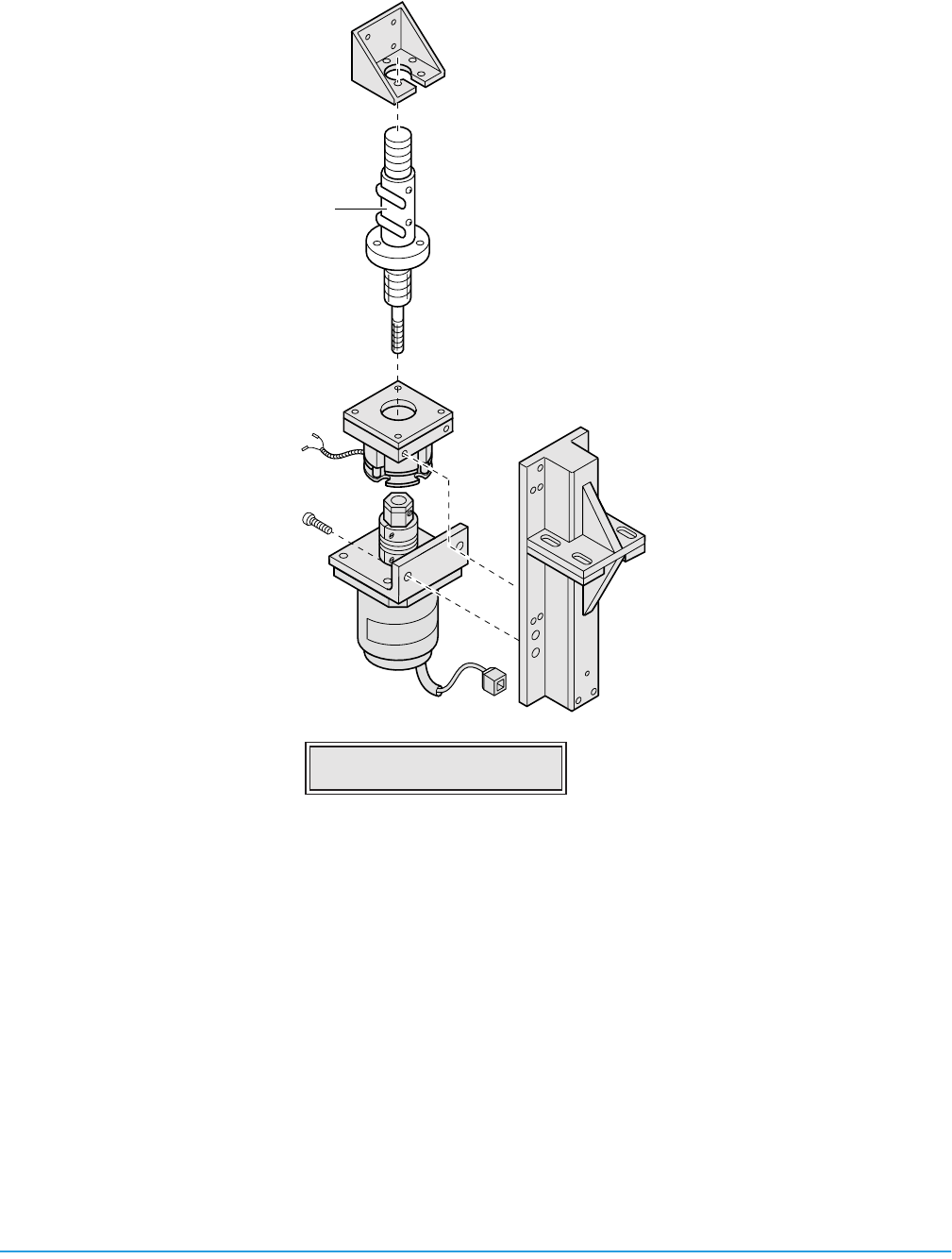

Ball Screw and Linear Bearing Kit AP25-89 (4 of 4)
AP2589_4
6
6
Shaded Areas not Part of Assembly.
*See IPB25-07
. . . . .
BASE SYSTEM
AP Excel Series Drawings Guide 3-25
Ball Screw and Linear Bearing Kit AP25-89 Parts Listing
Key No. Part No. Description Quantity
1 P2158 SCREW, LEAD, “X” AXIS 1
2 P0852 LINEAR BEARING 2
3 P2157 SCREW, LEAD, “Y” AXIS 1
4 P0851 LINEAR BEARING 2
5 A2-1464 SCREW, BALL 1
6 P0934 LINEAR, BEARING 2
