BASE SYSTEM 3-46 AP Excel Series Drawings Guide AP Excel Work Cell #2 (APP-C02) (2 of 2) A2-885 P0136 P1876 P3020 Parts Located Thr oughout Printer P1839-4 1002941 P0336 A2-887 1002684 1003900 1003901 P7061 1003826 10039…
. . . . .
BASE SYSTEM
AP Excel Series Drawings Guide 3-45

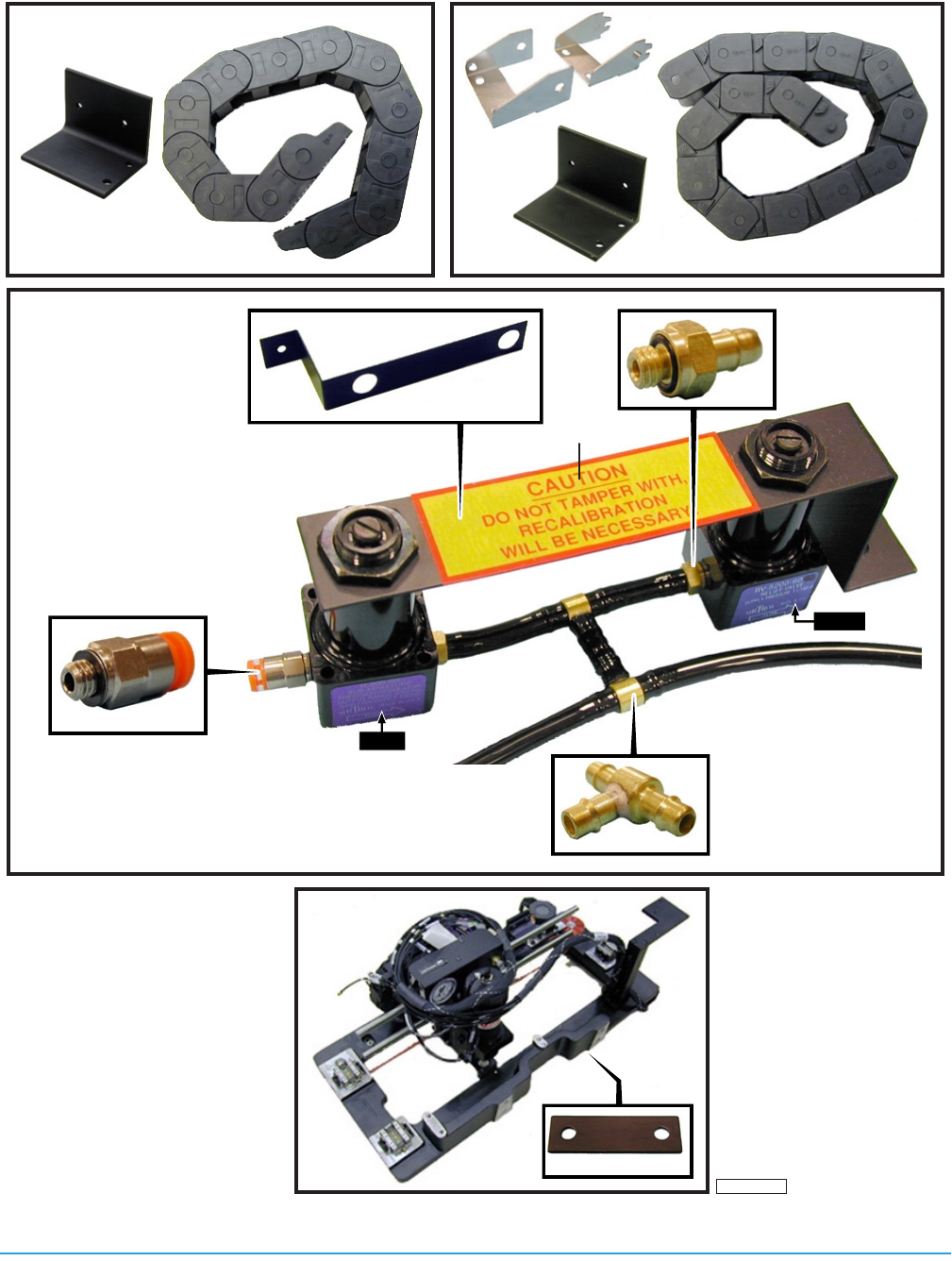

AP Excel Work Cell #2 (APP-C02) (1 of 2)
1003487
1003488
A2-1279
P2132
P1731
A2-1063
P2041
A2-860
P1575
P0129
P1707
P1810
P4394
A2-1481
AP25-C02_1
BASE SYSTEM
3-46 AP Excel Series Drawings Guide
AP Excel Work Cell #2 (APP-C02) (2 of 2)
A2-885
P0136
P1876
P3020
Parts Located Throughout Printer
P1839-4
1002941
P0336
A2-887
1002684
1003900
1003901
P7061
1003826
1003912
1005070
P0848
001687
AP25-C02_2
. . . . .
BASE SYSTEM
AP Excel Series Drawings Guide 3-47
AP Excel Work Cell #2 (APP-C02) Parts Listing
Key # Part No. Description Quantity
001687 COVER,CAMERA 1
1002684 BRACKET,CONNECTOR 1
1002941 BRACKET,ADAPTER 1
1003487 BRACKET,CABLE CARRIER 1
1003488 CABLE CARRIER, 12 LINKS (ASSY) 1
1003826 ASSY, MOUNT, SQ6/Z MOTOR 1
1003900 BRACKET, CONNECTOR 1
1003901 BRACKET, CONNECTOR 1
1008974 BRACKET, CONNECTOR 1
1003912 ASSEMBLY, MOTOR, MODIF, 'Z' AXIS 1
1007483 ASSEMBLY, PROGRAMMABLE SQUEEGE (SEE SEPARATE IPB) 1
1005070 BRAKE,POWER-OFF 24 VDC ASSEMBLY 1
1009006 ASSEMBLY, PNEUMATIC TRAY (SEE ENG. DWG) 1
A2-1063 BRACKET,IGUS TRACK 1
A2-1279 CARRIAGE,SQUEEGEE (CASTING/MACHINING) 1
A2-1481 CLAMP,WIRE 1
A2-860 BRACKET,REGULATORS 1
A2-885 U-BOLT,1/20 1
A2-887 BRACKET,SADDLE 1
AP25-10 AP25 PRINT HEAD ASSEMBLY (SEE SEPARATE IPB) 1
CA-372 CABLE,CAMERA POWER (NOT SHOWN) 1
CA-1057 HARNESS, PNEUMATIC (NOT SHOWN) 1
P0129 FITTING,BARB 3/16 ID TUBE TO 10-32 MALE BRASS 2
P0136 CLAMP,WORM DRIVE 4.500 ID TO 2.625 ID 2
P0336 MOUNT,VIBRATION 1/4 20 STUDS (NOT SHOWN) 4
P0848 COUPLING,THRU BORE, 5/16" SHAFT TO 3/8" SHAFT 1
P0962 TUBING,POLYURE.,1/8X3/16 BLACK (NOT SHOWN) 24.0 IN
P1575 FITTING, TEE .170 ID TUBING 2
P1707 FITTING,STRAIGHT,5/32 OD TUBE X 10-32 MALE 1
P1731 BRACKET,CABLE CARRIER 1
P1810 REGULATOR,PRECISION,AIR, WITHOUT KNOB 1
P1839-4 BLOWER, 115/230 VAC, WITH SWITCH 1
P1876 FITTING,BARB,COUPLING,.170 ID TUBING 2
P2041 LABEL,CAUTION DO NOT TAMPER WITH 1
