2 Brief Description
2.4 Tools and Equipment Required
Assembly Instructions / Montageanleitung SIPLACE X-Series S Service Flap Serviceklappe 07/2019 41
2.3.1 Overview of Parts
Fig.7: Overview of parts
1. Slider SIPLACE SX4a / X‑SeriesS
[03098934‑xx]
2. Safety switch service flap [03090999-xx]
prefitted on support plate
3. Handle assy SIPLACE X‑SeriesS
for locations 1 / 3 [03112951‑xx]
for locations 2 / 4 [03112952‑xx]
4. Actuating bracket [00321649-xx]
5. Hinge bottom part [03098912-xx] for
locations 2/4 or
hinge bottom part [03103525-xx] for
locations 1/ 3
6. Hinge top part [03098942-xx] for loca-
tions 2/4 or
hinge top part [03103529-xx] for loca-
tions 1/ 3
7. Ball holder 2053 for AZ15/16
[00321650-xx]
8. EMC tape b=5mm KR M5 - KR M4
l=110mm" [03103976‑xx]
For (3):
The handles are available in two versions.
Version 2 is shown here.
2.4 Tools and Equipment Required
●
Standard tool
2.5 Required Working Time
The complete installation will take approx. 1 hour per door.
2 Brief Description
2.5 Required Working Time
42 Assembly Instructions / Montageanleitung SIPLACE X-Series S Service Flap Serviceklappe 07/2019
3 Installation
3.1 Preparatory Steps
Assembly Instructions / Montageanleitung SIPLACE X-Series S Service Flap Serviceklappe 07/2019 43
3 Installation
Installation of the service flap consists in principle of the following steps:
●
3.2 "Removing the Side Cover" [}43]
●
3.3 "Converting the Side Cover" [}44]
●
3.4 "Fitting Hinges and Sliders" [}45]
●
3.5 "Fitting the Security Switch" [}46]
●
3.6 "Fitting the Service Flap" [}47]
3.1 Preparatory Steps
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}33]
3.2 Removing the Side Cover

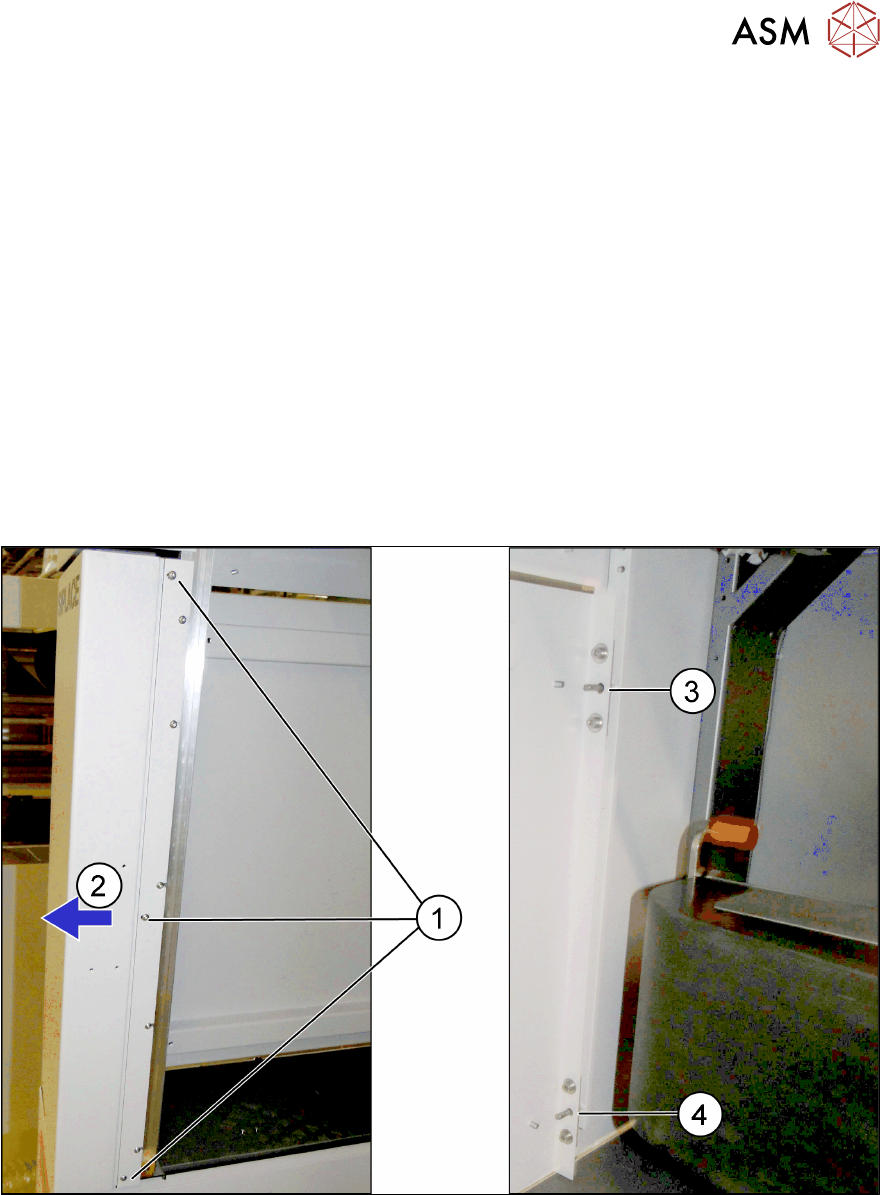

Fig.8: Removing the side cover
► Remove the three captive screws (1).
► Pull the side cover forwards and out (2).
► Remove the bolts at (3) and (4).
