Fig. A1-1 フレーム部 Frame Section 1002-001 36 37 38 30 31 32 25 29 26 29 27 24 33 19 34 35 30 31 32 See Fig.A1-2 Key No.101 See Fig.A1-4 Key No.303 See Fig.A1-4 Key No.306 See Fig.A1-6 Key No.501 See Fig.A1-3 39 2 1 1 3 28 2…
MEMO

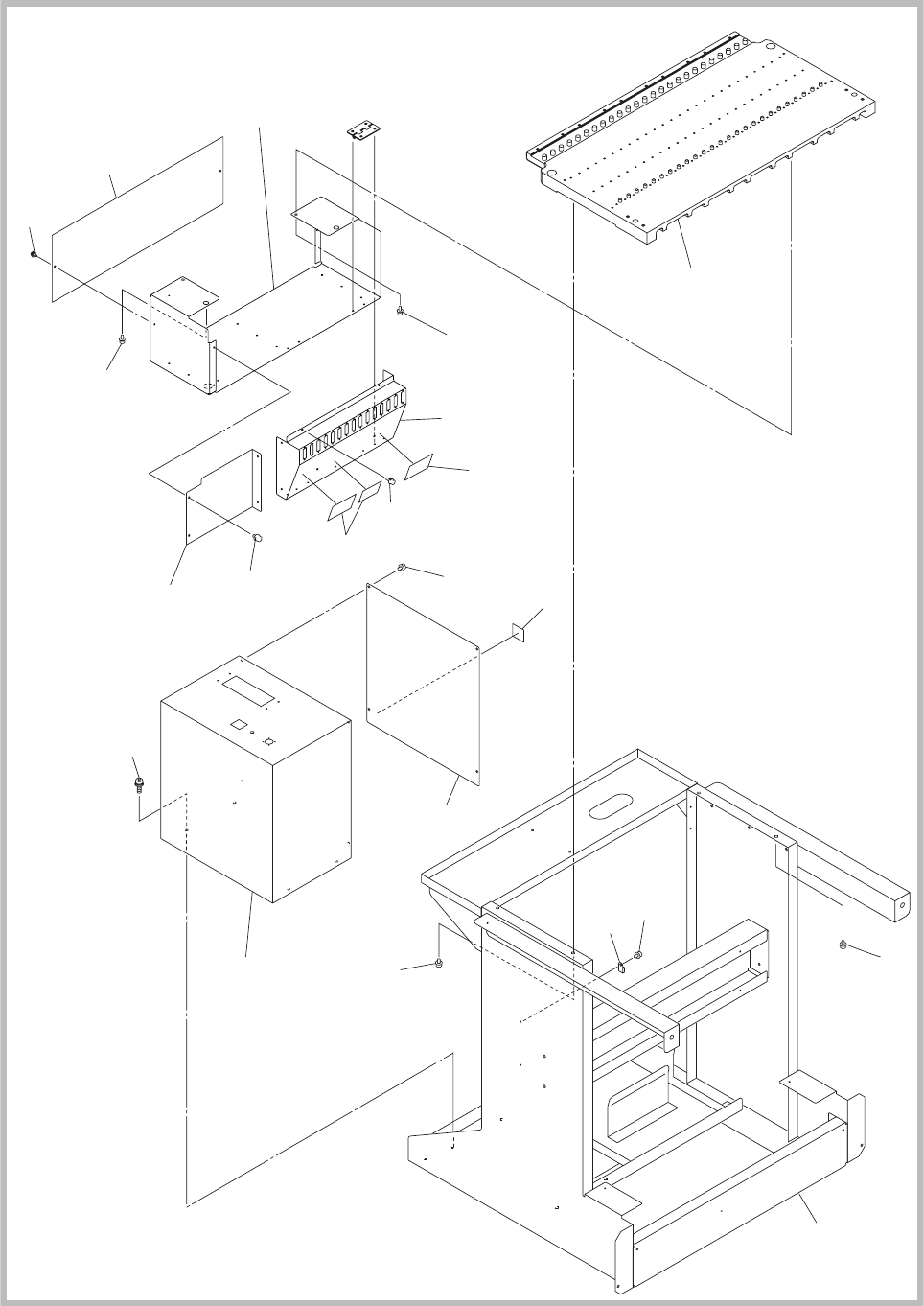

Fig. A1-1
フレーム部
Frame Section
1002-001
36
37
38
30
31
32
25
29
26
29
27
24
33
19
34
35
30
31
32
See Fig.A1-2
Key No.101
See Fig.A1-4
Key No.303
See Fig.A1-4
Key No.306
See Fig.A1-6
Key No.501
See Fig.A1-3
39
2
1
1
3
28
29
Fig. A1
テープフィーダ電源ユニット
(GS-FC300)
TAPE FEEDER POWER UNIT(GS-FC300)
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
2 0920410T NAME_PLATE 1 1098000000-002
3 0914511L NAME_PLATE 1
1098000000-003
11 0914010M ASSY_NAMEPLATE 1
1098000006-001
24 0980A10U COVER 1
1098000001-004
25 0980A10B COVER 1
1098000001-005
26 0980A10C COVER 1
1098000001-006
27 221AA106 ROHS_HEX-SCT 2
1098000001-007
28 4100AM00 ROHS_HEX-SCT 4
1098000001-008
29 221DA207 MACHINE_SCREW 12
1098000001-009
30 221AA031 ROHS_HEX-SCT 4
1098000001-010
31 221HA005 WASHER 4
1098000001-011
32 221HA105 WASHER 4
1098000001-012
33 221AA043 ROHS_HEX-SCT 2
1098000001-013
34 221HA006 WASHER 2
1098000001-014
35 221HA106 WASHER 2
1098000001-015
36 221AB016 ROHS_HEX-SCT 2
1098000001-016
37 221HA008 WASHER 2
1098000001-017
38 221HA108 WASHER 2
1098000001-018
39 23N30632 WIRING 2
1098000001-019
Fig. A1
1002-001
Fig. A1-1
GS-FC300
