Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE Fig. A1 1002-001 Fig. A1-2 101 210A2979 BASE 1 1098000002-001 102 21 1DB81 1 PLA TE 26 1098000002-002 103 221AA007 ROHS_HEX-SCT 78 1098000002-003 104 21 1G5359 BLOCK 5 109…
Fig. A1-2
フィーダベース部
Feeder Base Section
1002-001
101
111
113
106
107
102
104
105
106
107
103
1
18
1
15
1
16
1
17
1
19
1
14
109
1
11
109
1
11
109
1
11
109
1
11
109
108
1
10
1
12
1
12
1
10
1
12
1
10
1
12
1
10
1
12
1
10
1
12
Fig. A1
テープフィーダ電源ユニット
(GS-FC300)
TAPE FEEDER POWER UNIT(GS-FC300)
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. A1
1002-001
Fig. A1-2
101 210A2979 BASE 1 1098000002-001
102 211DB811 PLATE 26
1098000002-002
103 221AA007 ROHS_HEX-SCT 78
1098000002-003
104 211G5359 BLOCK 5
1098000002-004
105 221AA031 ROHS_HEX-SCT 10
1098000002-005
106 221HA005 WASHER 20
1098000002-006
107 221HA105 WASHER 20
1098000002-007
108 213A1024 SHAFT 5
1098000002-008
109 211D9584 PLATE 25
1098000002-009
110 211E1085 SPACER 50
1098000002-010
111 222M1298 SPRING_COMP 25
1098000002-011
112 221K0079 RING_C_15 50
1098000002-012
113 221AA032 ROHS_HEX-SCT 10
1098000002-013
114 214A0061 BUSH_BEARING 3
1098000002-014
115 221AA049 ROHS_HEX-SCT 6
1098000002-015
116 221HA006 WASHER 6
1098000002-016
117 221HA106 WASHER 6
1098000002-017
118 216C0967 ROD 1
1098000002-018
119 221CA044 SET_SCREW 3
1098000002-019
GS-FC300

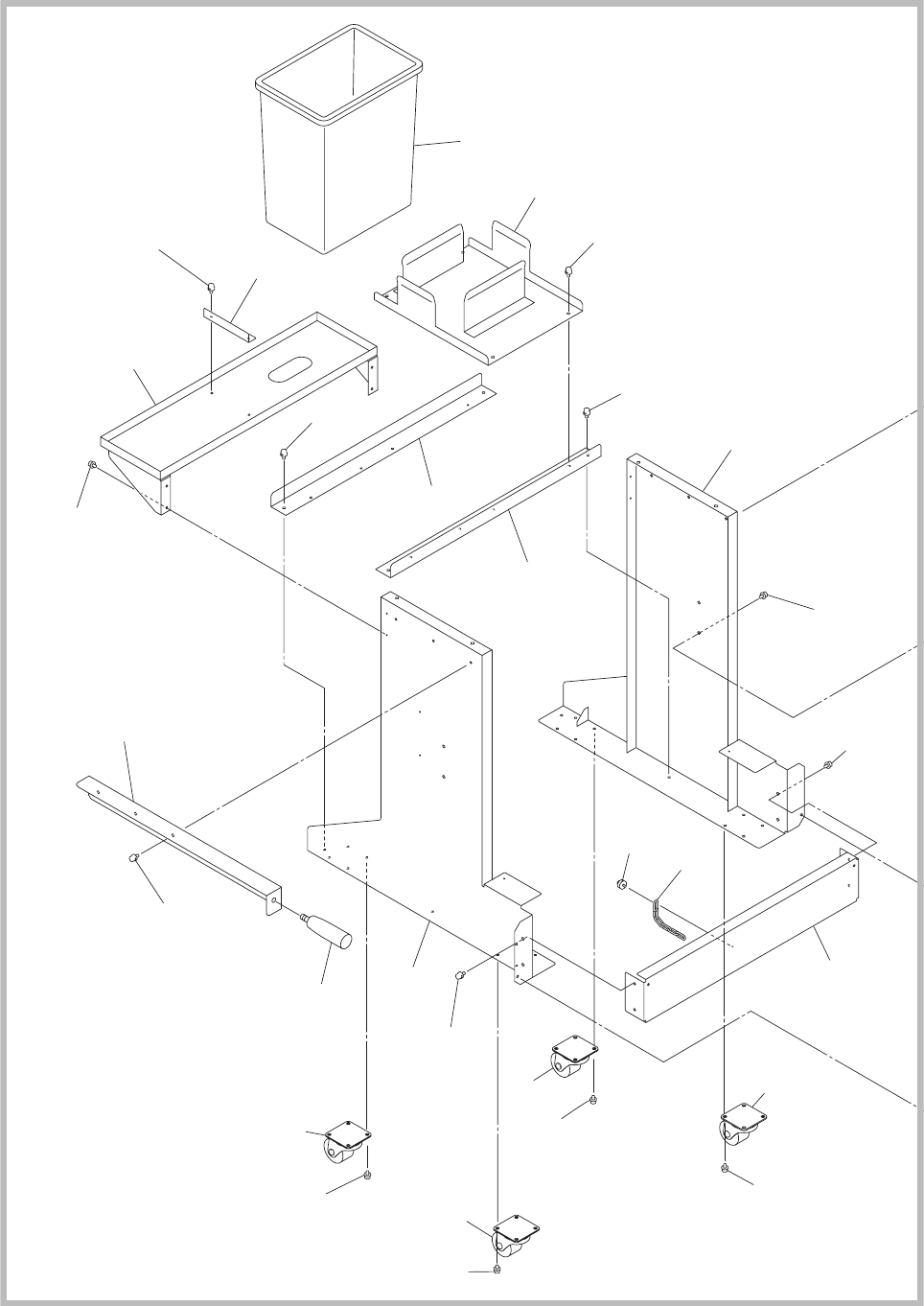

Fig. A1-3
キャスタ、リールホルダ
Caster, Reel Holder
1002-001
214
214
214
214
220
222
220
222
220
222
220
222
216
215
215
223
220
221
224
225
226
224
225
226
231
225
232
218
212
217
209
210
211
208
203
201
202
213
207
219
220
221
206
204
205
218
219
220
221
219
220
221
219
220
221
219
220
221
219
220
221
219
220
221
224
225
226
227
228
229
230
Fig. A1
テープフィーダ電源ユニット
(GS-FC300)
TAPE FEEDER POWER UNIT(GS-FC300)
