Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 201 0980A10L FRAME-R 1 1098000003-001 202 0980A10M FRAME-L 1 1098000003-002 203 0980A102 ST A Y -1 1 1098000003-003 204 0980A103 ST A Y -2 1 1098000003-004 205 0980A107 BO…
1002-001

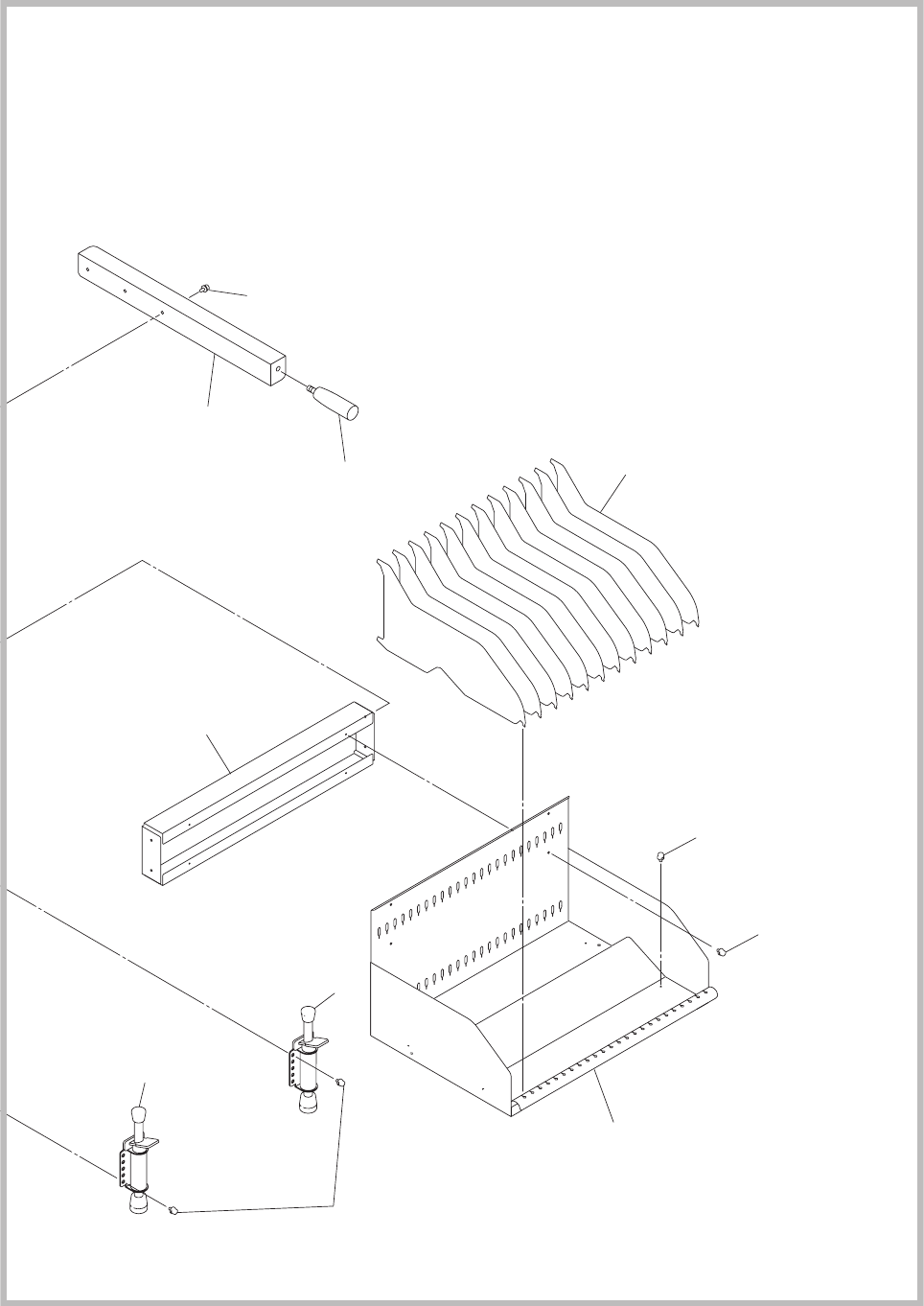

Fig. A1
215
215
223
220
221
224
225
226
224
225
226
218
212
206
204
205
219
220
221
Fig. A1-3
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
201 0980A10L FRAME-R 1 1098000003-001
202 0980A10M FRAME-L 1
1098000003-002
203 0980A102 STAY-1 1
1098000003-003
204 0980A103 STAY-2 1
1098000003-004
205 0980A107 BOX-REEL 1
1098000003-005
206 0980A10R PLATE 12
1098000003-006
207 0980A10N BRACKET-1 1
1098000003-007
208 0980A10P BRACKET-2 1
1098000003-008
209 0980A10Q BRACKET-3 1
1098000003-009
210 0980A10D TRAY 1
1098000003-010
211 0980A10E PLATE 1
1098000003-011
212 0980A10F BRACKET-R 1
1098000003-012
213 0980A10G BRACKET-L 1
1098000003-013
214 226E0069 CASTER 4
1098000003-014
215 226J2295 CASTER 2
1098000003-015
216 223R0111 CHAIN 1
1098000003-016
217 0980A10K DUST_BOX 1
1098000003-017
218 226D0122 GRIP 2
1098000003-018
219 221AA042 ROHS_HEX-SCT 18
1098000003-019
220 221HA006 WASHER 38
1098000003-020
221 221HA106 WASHER 22
1098000003-021
222 221AA140 ROHS_HEX-SCT 16
1098000003-022
223 221AA041 ROHS_HEX-SCT 4
1098000003-023
224 221AA016 ROHS_HEX-SCT 10
1098000003-024
225 221HA004 WASHER 1
1 1098000003-025
226 221HA104 WASHER 10
1098000003-026
227 221AA029 ROHS_HEX-SCT 4
1098000003-027
228 221HA005 WASHER 4
1098000003-028
229 221HA105 WASHER 4
1098000003-029
230 221DA207 MACHINE_SCREW 2
1098000003-030
231 221AA017 ROHS_HEX-SCT 1
1098000003-031
232 221HA302 ROHS_WASHER 1
1098000003-032
GS-FC300
1002-001
Fig. A1
Fig. A1-3
