Station Software 705.04 / Installation Manual Ausgabe 07/2011 Edition The following diagram sh ows the hardware compone nts of the computer sy stem for the SIPLACE SX1/SX2 and DX1/DX2 machines in one-compute r operation:…
Station Software 705.04 / Installation Manual Ausgabe 07/2011 Edition
Figure 4-2: Hardware components of the computer system for the SIPLACE X-series in two-computer operation (block
diagram)
18
Station Software 705.04 / Installation Manual Ausgabe 07/2011 Edition
The following diagram shows the hardware components of the computer system for the SIPLACE
SX1/SX2 and DX1/DX2 machines in one-computer operation:
Figure 4-3: Hardware components of the computer system for SIPLACE SX1/SX2 and DX1/DX2 in one-computer operation
(block diagram)
For the SIPLACE DX4 machine the hardware components of the computer system in one-
computer operation are the same as displayed in Figure 4-3 with the following variations:
– 2GB RAM
– A24 Hotlink cards
19
Station Software 705.04 / Installation Manual Ausgabe 07/2011 Edition

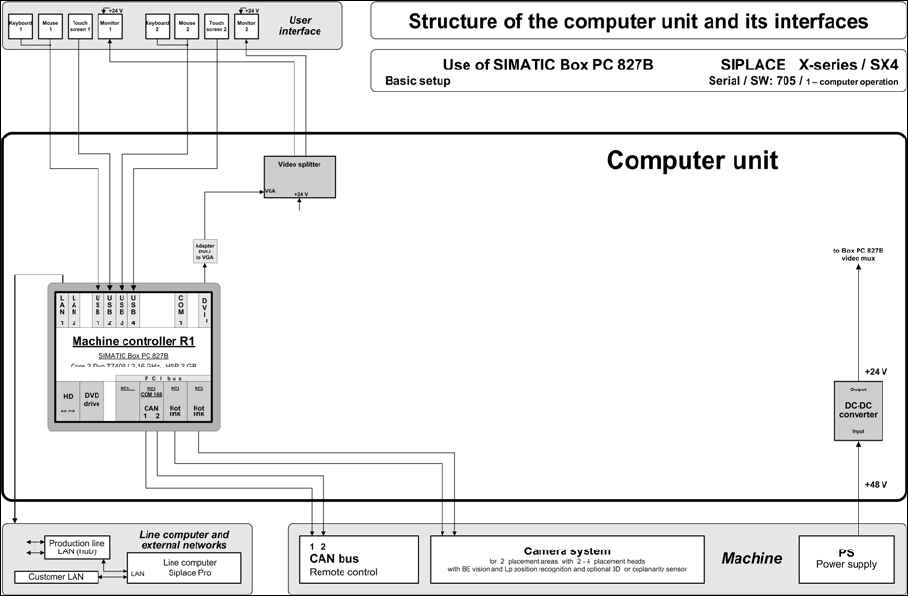

The following diagram shows the hardware components of the computer system for the SIPLACE
X-series and SX4 machines in one-computer operation:
Figure 4-4: Hardware components of the computer system for the SIPLACE X-series and SX4 in one-computer operation
(block diagram)
20
