Station Software 705.04 / Installation Manual Ausgabe 07/2011 Edition
► Click the Next button.
5.4.4 Selecting the machine type

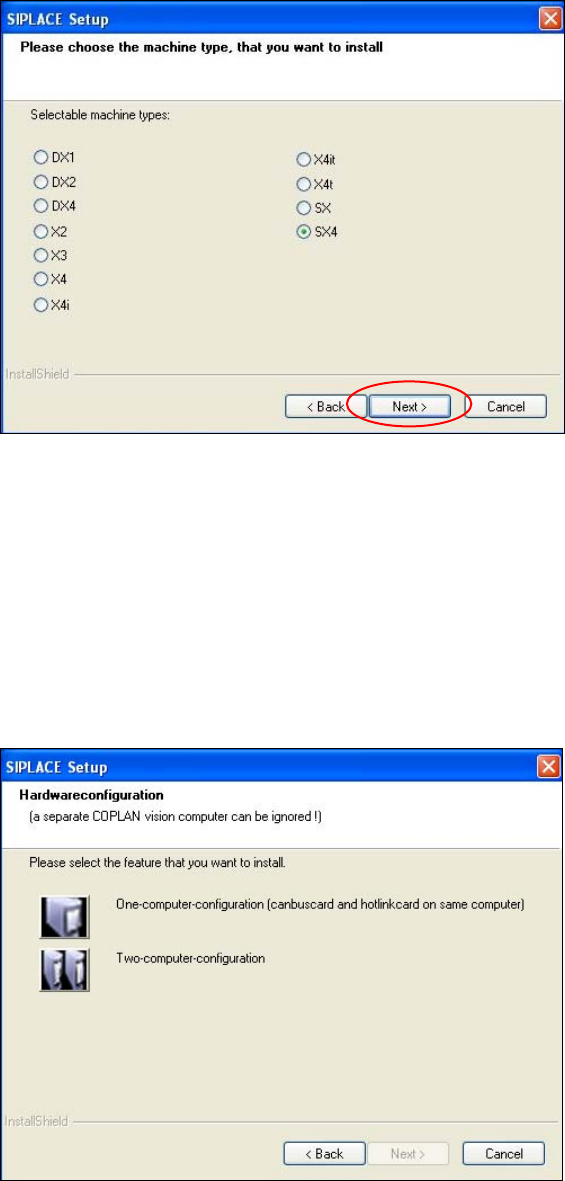

Figure 5-9: Selecting the machine type
► Select the option for the machine type for which the software is to be configured.
► Click the Next button.
5.4.5 Selecting the hardware configuration
The Hardwareconfiguration dialog box is opened, in which you configure the hardware for one-
computer or two-computer operation. One-computer operation is default for the SX and DX
placement machines.
Figure 5-10: "SIPLACE Setup" dialog box
31
Station Software 705.04 / Installation Manual Ausgabe 07/2011 Edition
► Click the
One-computer-configuration button or the Two-computer-
configuration button for X-series placement machines with two computers.
5.4.6 Entering the Machine Identification Number (MID)
Figure 5-11: Entering the Machine Identification Number (MID)
► In the text box, enter the 8-digit machine identification number.
NOTICE
You will find the MID on an adhesive label on the side of the protective covers directly
below the label for the number of the relevant location. The number following the dash
after the MID specifies the location and is not entered here (e.g. 00000001-2 stands for
location 2).
After upgrading (from 60x and 70x) the correct MID is already inserted.
► Click the Next button.
32
Station Software 705.04 / Installation Manual Ausgabe 07/2011 Edition
NOTICE
The following screen only appears if applications are open which use files which must be
updated during installation of SIPLACE.
Figure 5-12: Open applications
► Close the applications or processes listed here by using Windows Task Manager and then click
the Retry button.
The installation program now installs additional programs on the machine computer.
