Station Software 705.04 / Installation Manual Ausgabe 07/2011 Edition 7 First booting after installation When a machine is booted for the first time afte r installation, the station software detects which hardware compon…
Station Software 705.04 / Installation Manual Ausgabe 07/2011 Edition

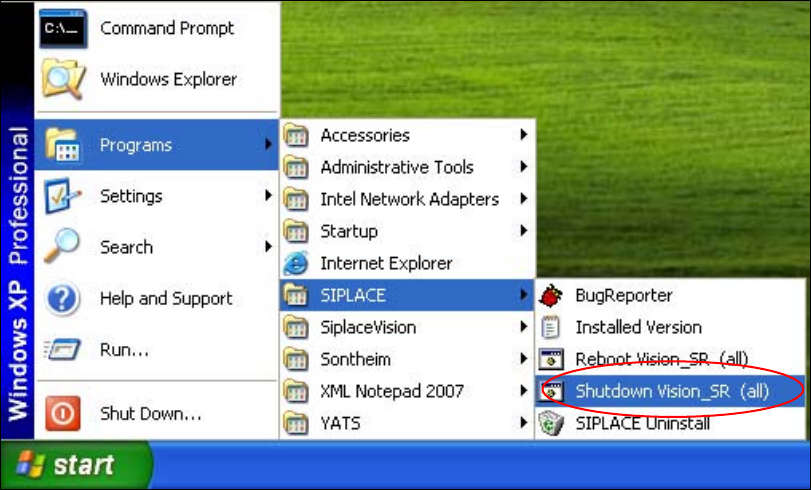

► To do this, open the Start menu and select Programs Æ SIPLACE Æ Shutdown Vision_SR
(all).
Figure 6-4: Shutting down the machine computer and Vision computer
► Switch the machine off when the computer systems have shut down.
► Switch the machine back on again. This then reboots the Vision computer and the machine
computer.
40
Station Software 705.04 / Installation Manual Ausgabe 07/2011 Edition
7 First booting after installation
When a machine is booted for the first time after installation, the station software detects which
hardware components are used via the Auto-configuration feature and configures itself accordingly.
The operator is prompted to confirm or reject the Auto-configuration on the GUI.

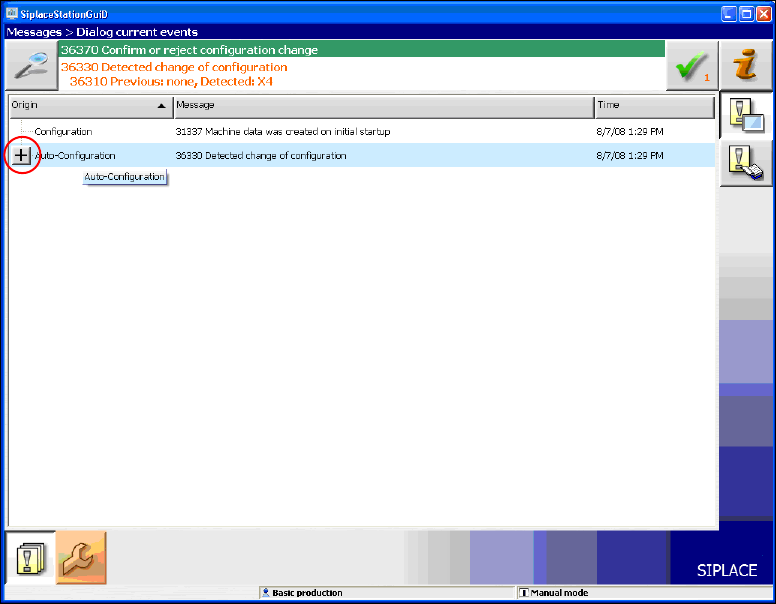

Figure 7-1: Auto-configuration
► Click the + sign in front of Auto-configuration to open the configuration list.
The used hardware components are displayed. hardware components are displayed.
41
Station Software 705.04 / Installation Manual Ausgabe 07/2011 Edition
Figure 7-2: Used hardware components
The Machine service activity level is required to execute the Auto-configuration.
► Click the
icon to call the user settings.
