Docking Station Installation
7.4.4 Connection Examples with CIN-Box Firmware Download for Feeder Control Unit
Installation Manual SIPLACE Setup Center 7.1 99

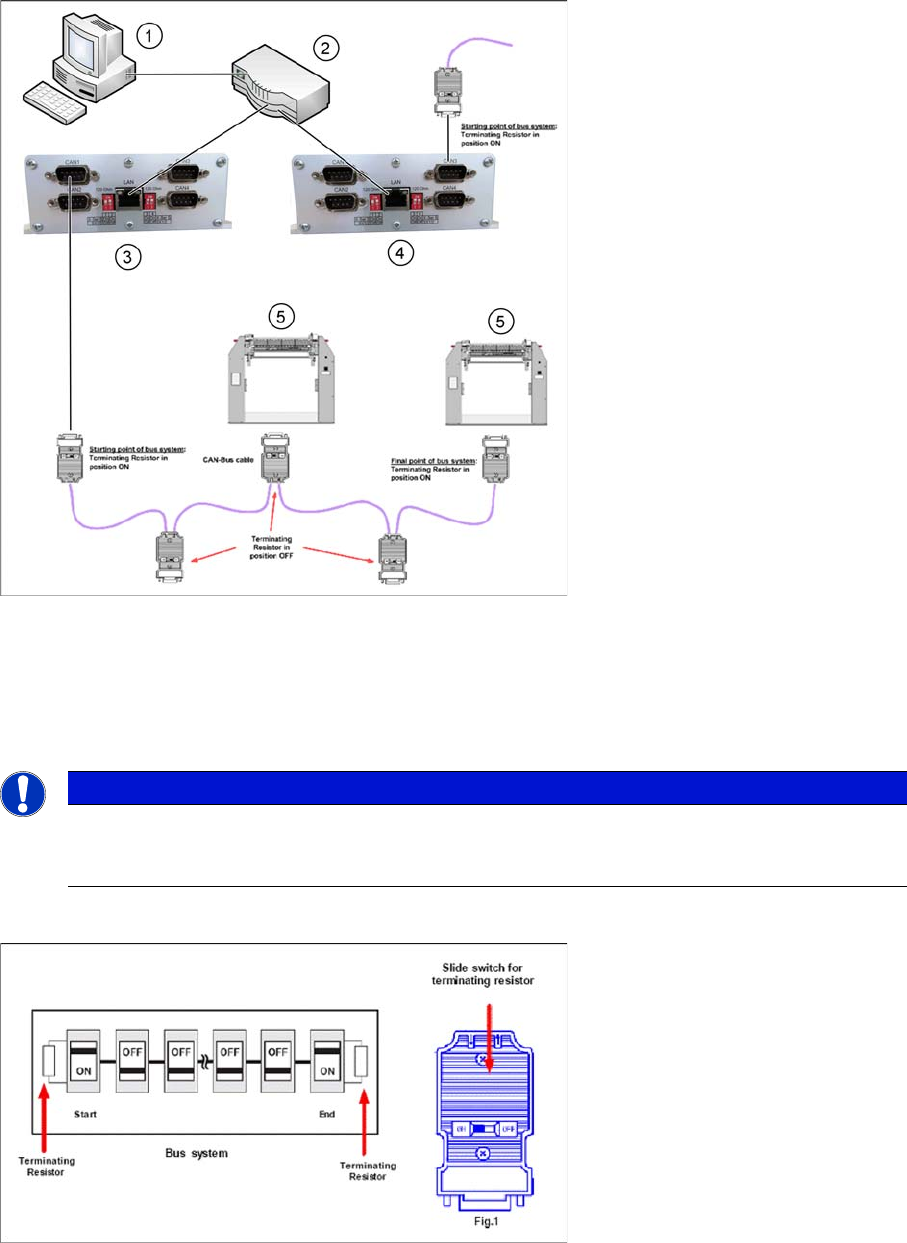

Connection Example 2 (Two CIN-Boxes)
1. Setup Center PC to DHCP-Router connection
2. Router with DHCP-Server
3. CIN-Box 1
4. CIN-Box 2
5. Docking Station X or SX
Termination Resistor
7.5
7.5 Firmware Download for Feeder Control Unit
Firmware Download for Feeder Control Unit
► Setup Center can update the firmware of your feeder control unit (docking station or feeder rack).
To learn how to update the firmware of your docking station, please refer to the chapter "Firmware
Download" in the Online Help Setup Center.
NOTICE
The integrated terminal resistor can be connected and simultaneously connects / disconnects
the outgoing bus cable when deactivating / activating. This allows an easy start up of the bus
system one segment at a time.
Docking Station Installation
Firmware Download for Feeder Control Unit 7.4.4 Connection Examples with CIN-Box
100 Installation Manual SIPLACE Setup Center 7.1
Settings
Installation Manual SIPLACE Setup Center 7.1 101
8
8 Settings
Settings
Settings in the Station Software
In order to use Setup Center you should make settings in the station software. For detailed information,
please refer to SIPLACE Setup Center User Guide.
SIPLACE Setup Center Configuration
Setup Center GUI requires to be configured before it can be used. The configuration can be found via
the main menu Extras → Settings. For detailed information, please refer to SIPLACE Setup Center User
Guide.
Settings on the SIPLACE Pro
In order to use Setup Center you should make settings on the programming system SIPLACE Pro. For
detailed information, please refer to SIPLACE Setup Center User Guide.
Barcode Label Wizard
The Barcode Label Wizard enables you to print out barcodes needed for the operation of the SIPLACE
Setup Center. For detailed information, please refer to SIPLACE Setup Center User Guide.
