Docking Station Installation

7.3.3 Installing the CAN Bus driver and API Data Connection with PC-CAN Card

Installation Manual SIPLACE Setup Center 7.1 93

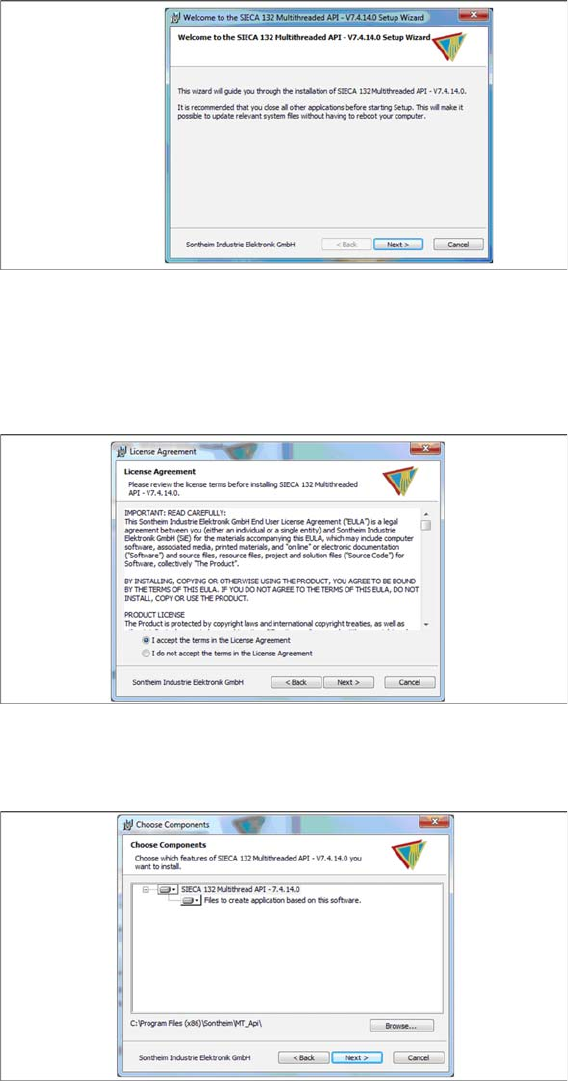

Step 4

► Click Next.

Step 5

► Read the license agreement relating to use of this software and select I accept the terms in the Li-

cense Agreement to accept the license agreement.

► Click Next.

Step 6

► Click Next.

Docking Station Installation

Data Connection with PC-CAN Card 7.3.3 Installing the CAN Bus driver and API

94 Installation Manual SIPLACE Setup Center 7.1

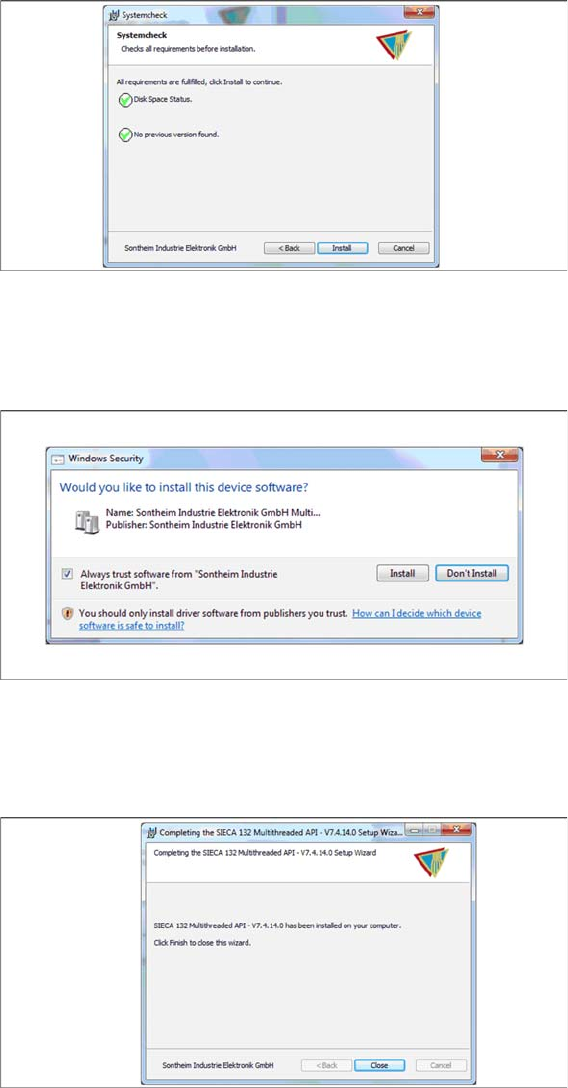

Step 7

► The “Systemcheck” window displays the status of all checks they have carried out.

► Click Install.

Step 8

► Select Always trust software from “Sontheim Industrie Elektronik GmbH”.

► Click Install.

Step 9

The "Installation Complete" window appears if the installation has been completed successfully.

► Click Close.

Docking Station Installation

7.4.1 Overview CIN-Box Data Connection with CIN-Box

Installation Manual SIPLACE Setup Center 7.1 95

Step 10

If a restart of the PC is required, the following window appears.

► Click Yes.

7.4

7.4 Data Connection with CIN-Box

Data Connection with CIN-Box

To obtain more details about using the docking station for E-, X- or SX tables, please refer to the current

version of the operating manual.

7.4.1

7.4.1 Overview CIN-Box

Overview CIN-Box

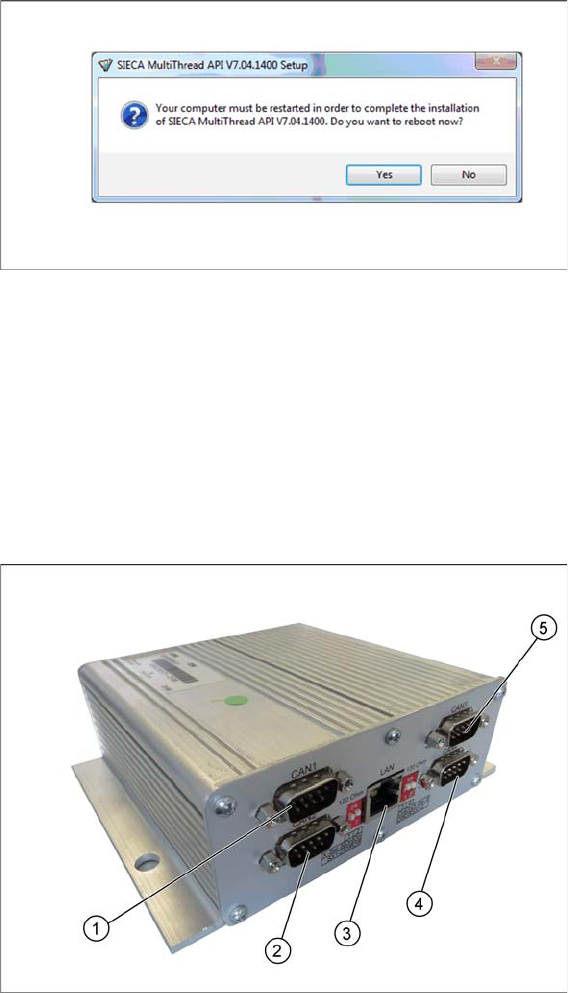

You can use a CIN-Box for the connection of docking stations. You can connect up to 16 docking stations

to one CIN-Box. The CIN-Box can be used alternatively to the Power PC-CAN Card.

1. CAN1

2. CAN2

3. LAN

4. CAN4

5. CAN3

► The drivers for the CIN-Box are contained on the Setup Center software installation CD. These need

to be installed separately.
