6.2.6 12 mm S feeder for capacitors based on powdered metal, model E
6

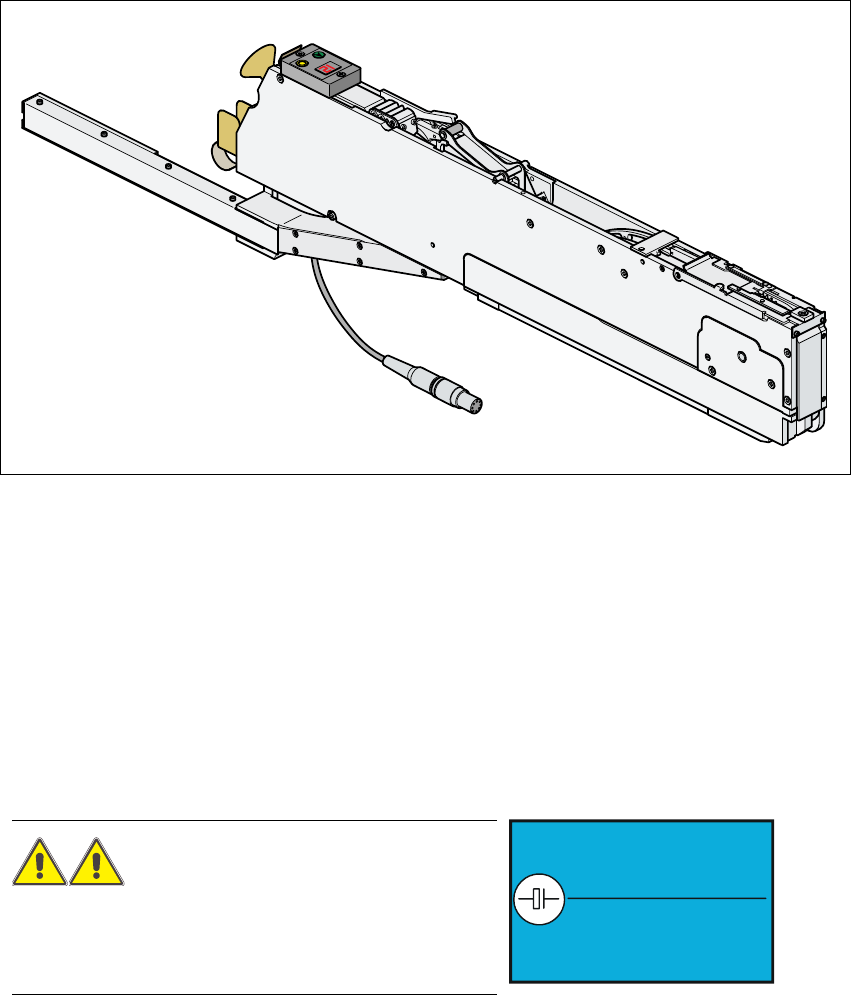

Fig. 6.2 - 6 12 mm S feeder for capacitors based on powdered metal, model E
6
Item no. 00141117-xx 6
Width 30.6 mm 6
Tracks per feeder 1 6
Assigned locations 1 6
Maximum number of feeders 4 x 12 6
Stock of components for 7" reels approx. 4000 6
Maximum tape height 3.6 mm 6
Transport distance (variable) 4mm, 8mm, 12mm, 16mm 6
WARNING 6
Use only feeders, labeled as shown above, when
feeding capacitors based on metal-powder (e.g.
tantalum). 6
Feeder label (enlarged)
Approved for
capacitors based on
metal-powder
Freigegeben für
Kondensatoren auf
Metallpulver-Basis
User Manual SIPLACE HS-60 6 Component handling
Software version SR.503.xx 07/2003 US Edition 6.2 Technical data for the feeders
135
6.2.7 24/32 mm S feeder
6

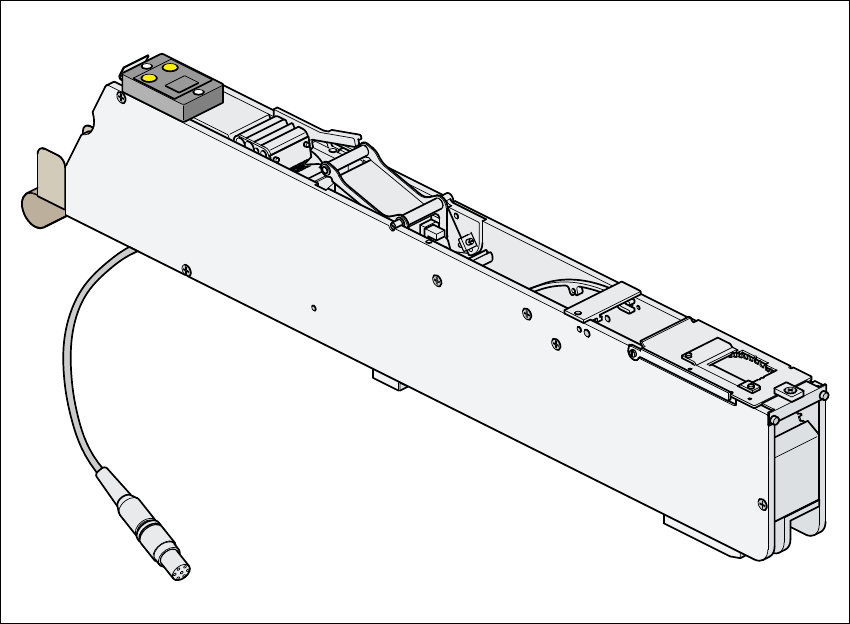

Fig. 6.2 - 7 24/32 mm S feeder
Item no. 00141093-xx 6
Wide 42.4 mm 6
Tracks per feeder 1 6
Assigned locations 1.5 6
Maximum number of feeders 4 x 8 6
Stock of components for 7" reels approx. 2000 6
Transport distance (variable) 4 to 40 mm, (in 4 mm increments) 6
6 Component handling User Manual SIPLACE HS-60
6.2 Technical data for the feeders Software version SR.503.xx 07/2003 US Edition
136
6.2.8 Bulk case feeder
6

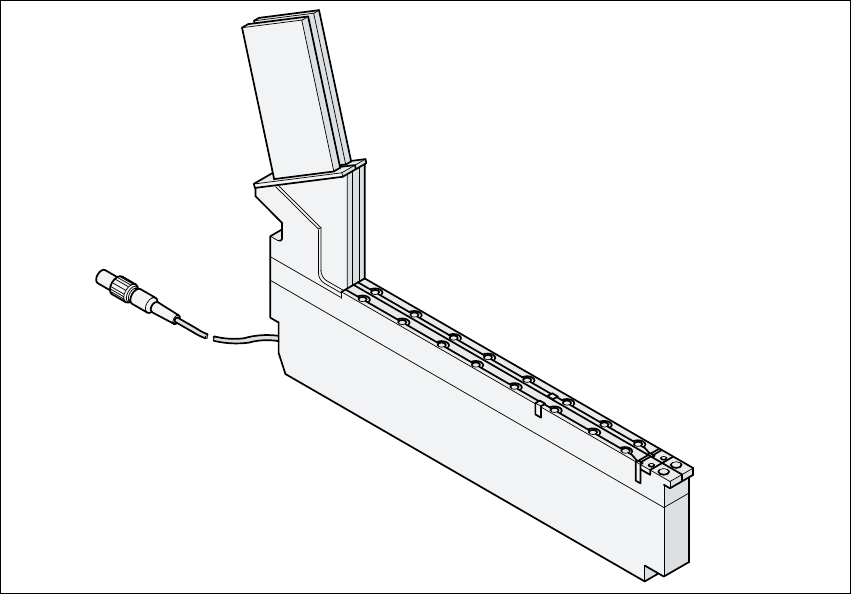

Fig. 6.2 - 8 Bulk case feeder
6
Item no. 00142318-xx 6
Wide 29 mm 6
Tracks per feeder 2 6
Assigned locations 1 6
Maximum number of feeders 4 x 12 6
Stock of components up to 50,000 6
Feeding rails 0402 / 0.35 mm high item no. 00142319-xx 6
0402 / 0.5 mm high item no. 00142320-xx 6
0603 / 0.45 mm high item no. 00142321-xx 6
0603 / 0.80 mm high item no. 00142322-xx 6
0805 / 0.45 mm high item no. 00142323-xx 6
0805 / 0.60 mm high item no. 00142324-xx 6
0805 / 0.85 mm high item no. 00142325-xx 6
0805 / 1.25 mm high item no. 00142326-xx 6
Micro Melf / 1.05 ± 0.05 mm item no. 00142327-xx 6
Mini Melf / 1.40 ± 0.1 mm item no. 00142328-xx 6
Cycle time < 60 ms 6
