双电源转换开关 - PC级
2/24
OTZC43...44
OTZC53...54
OMZC03
OTZC13...34
OTZR_
桥接排
桥接排用来在开关的进线侧或出线侧提供连接。
型号 适用开关 极数 订货代码 重量
kg
备注
OMZC03 OTM32...125F3C
OTM32...125F3C_D
3 1SCA117037R1001 0.5 此桥接排仅适用于3极和
4极开关
OMZC04 OTM32...125F4C
OTM32...125F4C_D
4 1SCA117038R1001 0.65
OTZC13 OT160...250E_C
OTM160...250E_C
OTM32...250E_C_D
3 1SCA022767R6910 0.6 标配
OTZC14 4 1SCA022767R7040 0.8
OTZC23 OT315...400E_C
OTM315...400E_C
OTM315...400E_C_D
3 1SCA022767R7120 0.6
OTZC24 4 1SCA022767R7210 0.8
OTZC33 OT630...800E_C
OTM630...800E_C
OTM630...800E_C_D
3 1SCA022785R7020 1.0
OTZC34 4 1SCA022785R7110 1.3
OTZC43 OT1000...1250E_C
OTM1000...1250E_C
OTM1000...1250E_C_D
3 1SCA022868R0710 4.2 不标配
OTZC44 4 1SCA022868R0800 5.6
OTZC53 OT1600E_C
OTM1600E_C
OTM1600E_C_D
3 1SCA022868R0980 5.6
OTZC54 4 1SCA022868R1010 7.4
OTZC63 OT2000...2500E_C
OTM2000...2500E_C
OTM2000...2500E_C_D
3 1SCA022868R1100 10.8
OTZC64 4 1SCA022868R1360 14.5
逆向排
型号 适用开关 订货代码 重量
kg
OTZR1 OT_160...250E_C
OTM160...250E_C
OTM32...250E_C_D
1SCA100352R1001 0.3
OTZR2 OT_315...400E_C
OTM315...400E_C
OTM315...400E_C_D
1SCA104647R1001 0.3
OTZR3 OT_600...800E_C
OTM600...800E_C
OTM600...800E_C_D
1SCA100355R1001 0.4
2
2/25
双电源转换开关
OTS_T1
S00265A
OTS_T3
S00462A

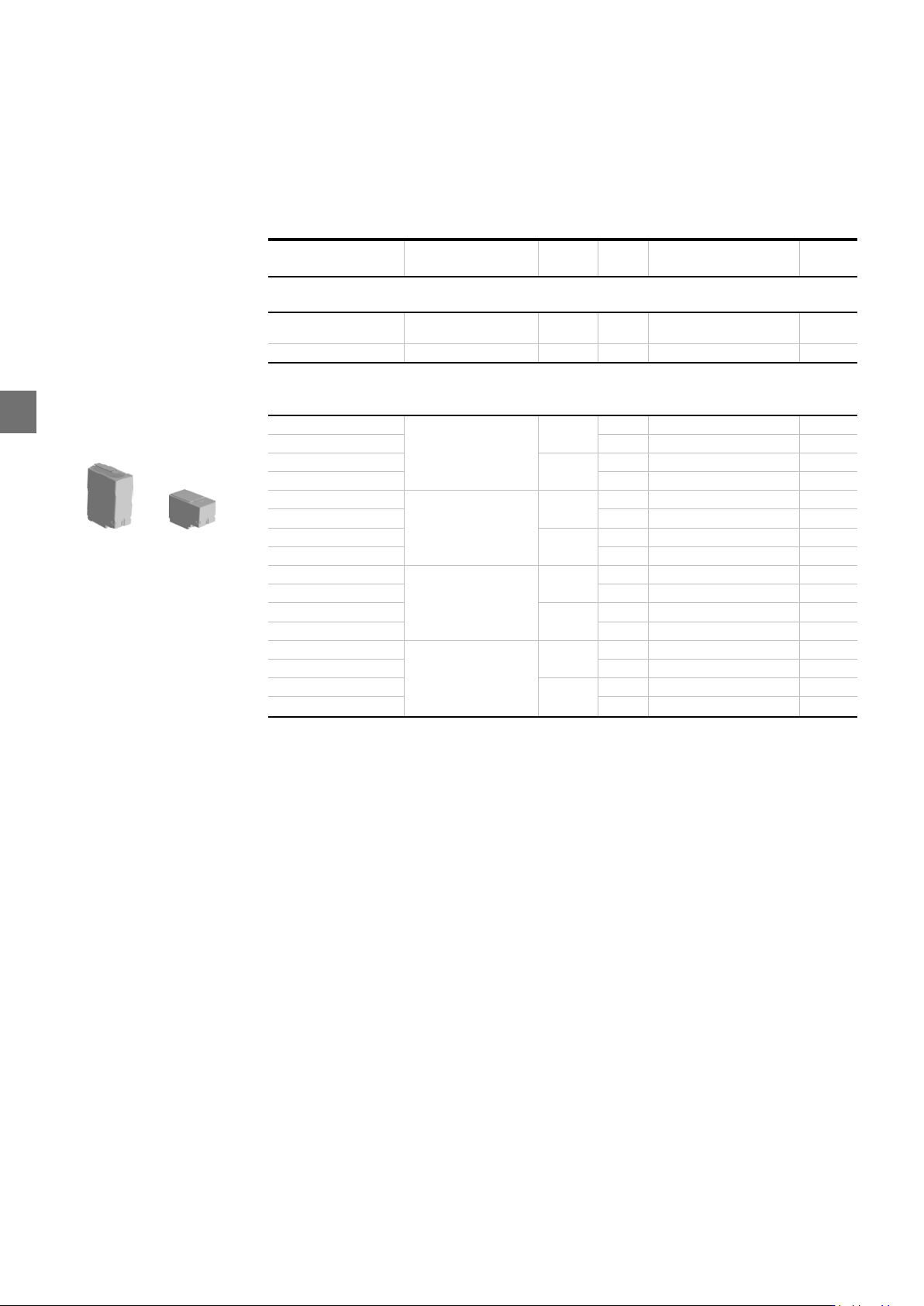

端子罩（IP20）
型号 适用开关/第 4 极 极数 描述 订货代码 重量
kg
卡装在开关上，一个 3 极转换开关需 4 个 3 极的端子罩实现完全防护。
OTS125T3 OTM32...125F_C
OTM32...125F_C_D
第3极 1SCA022379R9680 0.01
OTS125T1 OTPS125FP 第4极 1SCA022379R9760 0.01
卡式安装，灰色塑料件，可按要求提供透明罩给于 OT160...800，用字母 T 更换 G，适用于开关上部套件包括 3/4 极开关
端子罩（使用在开关的侧边）
OTS250G1L/3 OT160...250E_C
OTM160...250E_C
OTM32...250E_C_D
3 长型 1SCA022731R8150 0.09
OTS250G1S/3 短型 1SCA022731R8310 0.06
OTS250G1L/4 4 长型 1SCA022731R8230 0.12
OTS250G1S/4 短型 1SCA022731R8400 0.08
OTS400G1L/3 OT315...400E_C
OTM315...400E_C
OTM315...400E_C_D
3 长型 1SCA022736R8840 0.15
OTS400G1S/3 短型 1SCA022736R9060 0.09
OTS400G1L/4 4 长型 1SCA022736R9490 0.20
OTS400G1S/4 短型 1SCA022736R9650 0.12
OTS800G1L/3 OT630...800E_C
OTM630...800E_C
OTM630...800E_C_D
3 长型 1SCA022776R7890 0.32
OTS800G1S/3 短型 1SCA022776R8190 0.17
OTS800G1L/4 4 长型 1SCA022776R7970 0.42
OTS800G1S/4 短型 1SCA022776R8270 0.26
OTS1600G1L/3 OT1000...1600E_C
OTM1000...1600E_C
OTM1000...1600E_C_D
3 长型 1SCA022871R9510 0.64
OTS1600G1S/3 短型 1SCA022871R9600 0.37
OTS1600G1L/4 4 长型 1SCA022871R9780 0.85
OTS1600G1S/4 短型 1SCA022871R9860 0.49
S01638A
OTS_L
S01637A
OTS_S
—
双电源转换开关-可选附件
订货资料
2
双电源转换开关 - PC级
2/26
S00177A
OZXB 1L
S00179A
OZXB 2
S00186A
OZXB 3
S00188A
OZXB 4
S00182A
OZXB 2L，7L
S01806A
OZXB 8，9

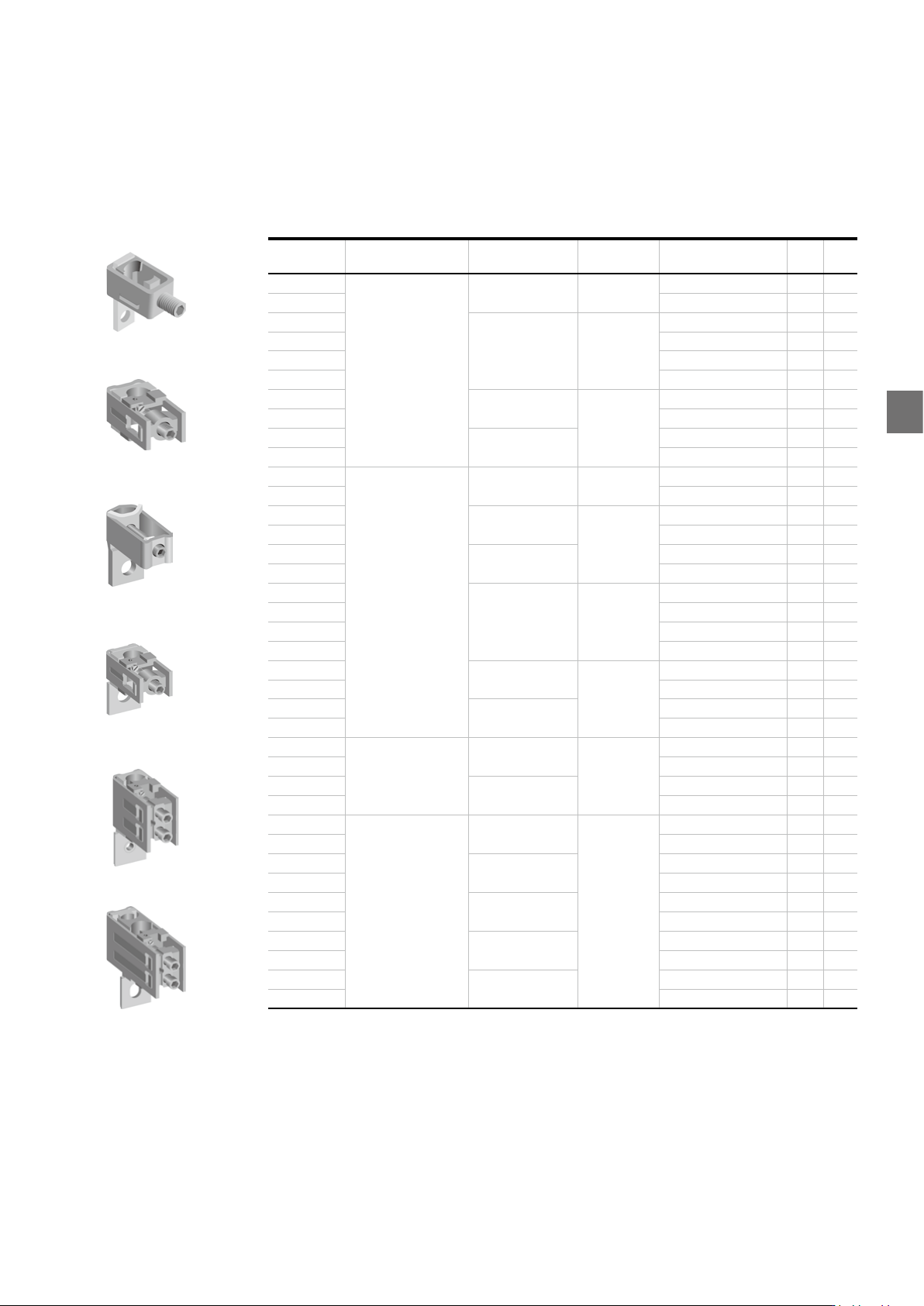

铜铝电缆端子线夹
型号 适用开关 电缆横截面积
mm
2
适用端子罩 订货代码 包装
件
重量
kg
OZXB1L
OT160...250E_C
OTM160...250E_C
OTM32...250E_C_D
10...70 OTS250_L
1SCA022169R2030 3 0.15
OZXB1L/1 1SCA022194R0030 1 0.05
OZXB2
25...120 OZXB2K
1SCA022119R7610 3 0.34
OZXB2/1 1SCA022194R0200 1 0.12
OZXB2L 1SCA022158R7750 3 0.43
OZXB2L/1 1SCA022194R0460 1 0.15
OZXB8
95...185 OTS250_L
1SCA022744R1510 3 0.50
OZXB8/1 1SCA022744R1600 1 0.15
OZXB9
95...240
1SCA022750R3210 3 0.50
OZXB9/1 1SCA022750R3300 1 0.15
OZXB2L
OT315...400E_C
OTM315...400E_C
OTM315...400E_C_D
25...120 OZXB2K
1SCA022158R7750 3 0.43
OZXB2L/1 1SCA022194R0460 1 0.15
OZXB3
95...185 OZXB3K
1SCA022136R8100 3 1.28
OZXB3/1 1SCA022194R0620 1 0.43
OZXB4
2 x（95...185）
1SCA022137R4760 3 1.71
OZXB4/1 1SCA022194R0890 1 0.57
OZXB7
120...240 OZXB5K
1SCA022185R0040 3 1.00
OZXB7/1 1SCA022194R1430 1 0.34
OZXB7L 1SCA022185R7130 3 1.17
OZXB7L/1 1SCA022194R1600 1 0.40
OZXB8
95...185 OTS400_L
1SCA022744R1510 3 0.50
OZXB8/1 1SCA022744R1600 1 0.15
OXZB9
95...240
1SCA022750R3210 3 0.50
OZXB9/1 1SCA022750R3300 1 0.15
OZXB5
OT630...800E_C
OTM630...800E_C
OTM630...800E_C_D
120...300 OZXB4K
1SCA022137R2470 3 2.28
OZXB5/1 1SCA022194R1010 1 0.76
OZXB6
2 x（120...300）
1SCA022137R4920 3 3.12
OZXB6/1 1SCA022194R1270 1 1.04
OZXB3
OT1000...1600E_C
OTM
1000...1600E_C
OTM1000...2500E_C_D
95...185 OTS1600_L
1SCA022136R8100 3 1.28
OZXB3/1 1SCA022194R0620 1 0.43
OZXB4
2 x（95...185）
1SCA022137R4760 3 1.71
OZXB4/1 1SCA022194R0890 1 0.60
OZXB5
120...300
1SCA022137R2470 3 2.22
OZXB5/1 1SCA022194R1010 1 0.80
OZXB6
2 x（120...300）
1SCA022137R4920 3 3.03
OZXB6/1 1SCA022194R1270 1 1.00
OZXB7L
120...240
1SCA022185R7130 3 1.20
OZXB7L/1 1SCA022194R1600 1 0.39
