0105-001 大リールホルダ RL-0810L LARGE REEL HOLDER RL-0810L Fig. BL-1 8mm 幅テープフィーダ用 FOR 8mm T APE FEEDER 1 2 5 8 7 16 19 9 4 15 6 18 3 17 A B A B
1002-003
Key No. PART No. PART NAME Q’ty REMARKS OLD PARTS No.
NOTE
BS-1
1 210B 2 709 FRAME 1 753BS-010-001 630 095 6757
2 216E 1 595 PIN,LOCATE 1 753BS-010-002 630 138 4214
3 222P 0 066 SPRING,TORSION 1 753BS-010-003 630 062 5202
4 216E 1 594 PIN,LOCATE 1 753BS-010-004 630 138 4207
5 221E 0 186 BOLT 3 753BS-010-005 630 095 6825
6 216S 2 159 LEVER 1 753BS-010-006 630 096 5162
7 221K 0 098 RING E 5 1 753BS-010-007 411 001 0201
8 221E 0 045 BOLT(FLT HEX-SCT) 2 753BS-010-008 630 036 0974
9 221F 0 108 NUT HEX 6 3 753BS-010-009 411 004 6903
10 216A 1 250 COLLAR 10 753BS-010-010 630 135 4835
RL-0810S
0105-001

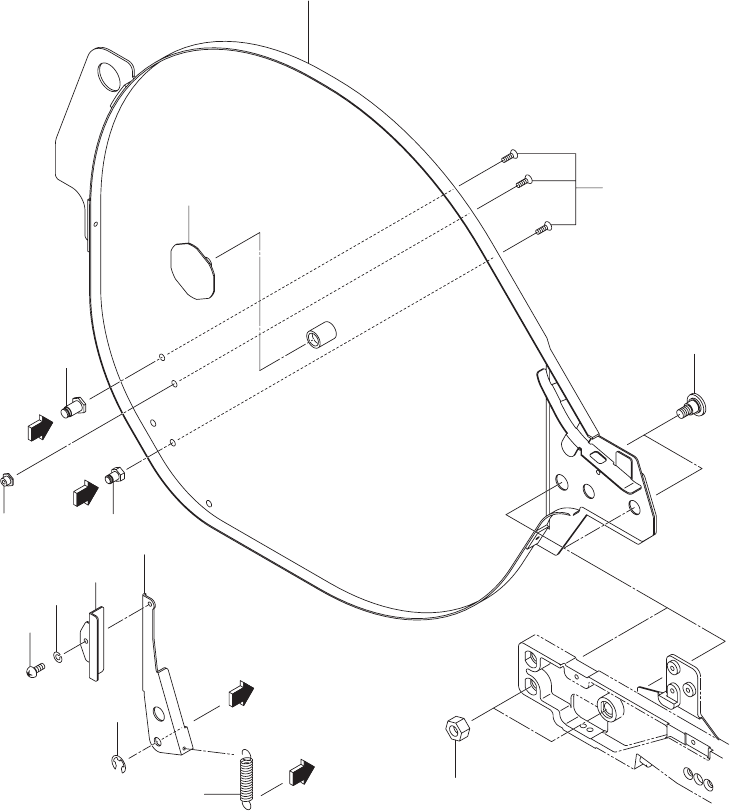

大リールホルダ
RL-0810L LARGE REEL
HOLDER RL-0810L
Fig. BL-1 8mm
幅テープフィーダ用
FOR 8mm TAPE FEEDER
1
2
5
8
7
16
19
9
4
15
6
18
3
17
A
B
A
B
1002-002
Key No. PART No. PART NAME Q’ty REMARKS OLD PARTS No.
NOTE
BL-1
1 010B 0 009 ASSY,FRAME 1 753BL-010-001 630 096 5537
2 216F 0 235 PIN,GUIDE(REEL BINDER) 1 753BL-010-002 630 044 8313
3 221A 0 267 BOLT,HEX-SCT 2 753BL-010-003 630 095 6849
4 216S 2 141 LEVER 1 753BL-010-004 630 095 6856
5 216E 0 238 PIN,LOCATE 1 753BL-010-005 630 040 4623
6 222N 1 014 SPRING,TENSION 1 753BL-010-006 630 045 5861
7 216J 0 206 HOOK 1 753BL-010-007 630 040 4630
8 216F 0 199 PIN,GUIDE 1 753BL-010-008 630 040 4647
9 016S 0 435 ASSY,LEVER 1 753BL-010-009 630 096 5544
15 221K 0 098 RING E 5 1 753BL-010-015 411 001 0201
16 221E 0 596 SCR TRS 3X6 1 753BL-010-016 411 152 8101
17 221E 0 044 BOLT(FLT HEX-SCT) 3 753BL-010-017 630 036 0967
18 221F 0 108 NUT HEX 6 2 753BL-010-018 411 004 6903
19 221H 0 280 WASHER SPR 3 1 753BL-010-019 411 086 4408
RL-0810L
