0105-001



大リールホルダ

RL-0810L LARGE REEL

HOLDER RL-0810L

Fig. BL-1 8mm

幅テープフィーダ用

FOR 8mm TAPE FEEDER

1002-002



Key No. PART No. PART NAME Q’ty REMARKS OLD PARTS No.

NOTE

BL-1

1 010B 0 009 ASSY,FRAME 1 753BL-010-001 630 096 5537

2 216F 0 235 PIN,GUIDE(REEL BINDER) 1 753BL-010-002 630 044 8313

3 221A 0 267 BOLT,HEX-SCT 2 753BL-010-003 630 095 6849

4 216S 2 141 LEVER 1 753BL-010-004 630 095 6856

5 216E 0 238 PIN,LOCATE 1 753BL-010-005 630 040 4623

6 222N 1 014 SPRING,TENSION 1 753BL-010-006 630 045 5861

7 216J 0 206 HOOK 1 753BL-010-007 630 040 4630

8 216F 0 199 PIN,GUIDE 1 753BL-010-008 630 040 4647

9 016S 0 435 ASSY,LEVER 1 753BL-010-009 630 096 5544

15 221K 0 098 RING E 5 1 753BL-010-015 411 001 0201

16 221E 0 596 SCR TRS 3X6 1 753BL-010-016 411 152 8101

17 221E 0 044 BOLT(FLT HEX-SCT) 3 753BL-010-017 630 036 0967

18 221F 0 108 NUT HEX 6 2 753BL-010-018 411 004 6903

19 221H 0 280 WASHER SPR 3 1 753BL-010-019 411 086 4408

RL-0810L

1002-002



TAG ASSY TAG ASSY

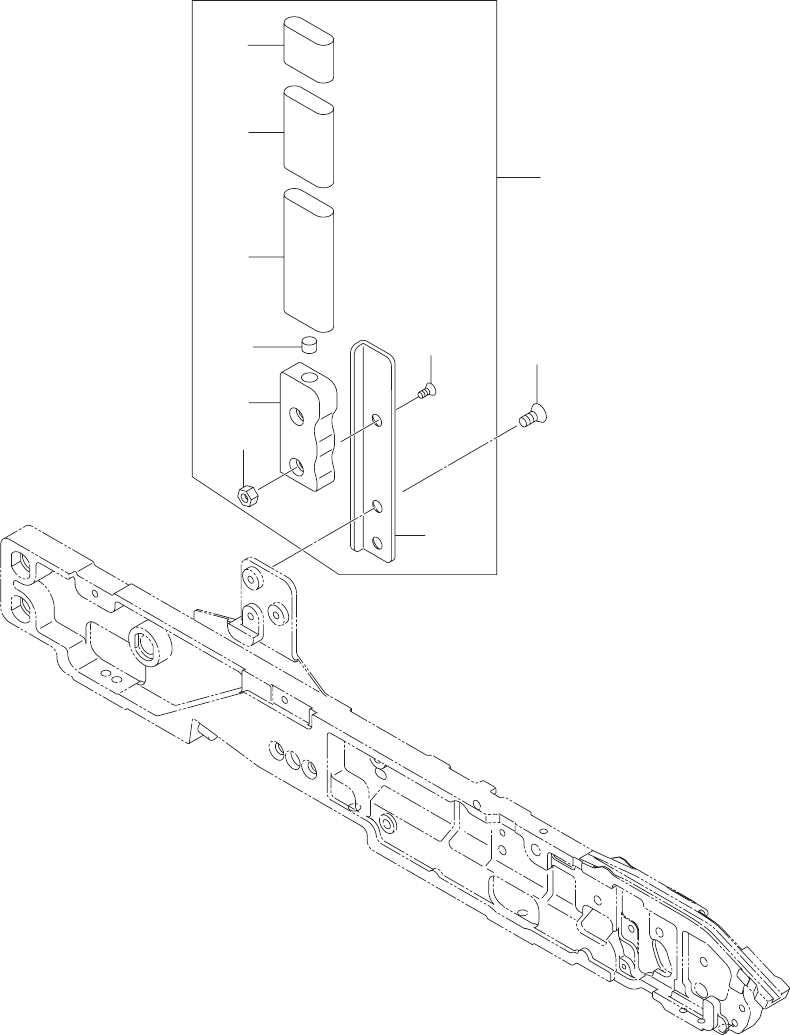

Fig. TB-1 TX-0809, 0810, 0811, TX-0809, 0810, 0811,

0812, 0813 0812, 0813

1-01

1-03

1-08

1-05

1-06

1-07

1-04

1-02
