Design

Warning

1. Warning concerning abnormal outlet pressure

• If there is a likelihood of causing an outlet pressure drop

due to unforeseen circumstances such as equipment

malfunction, thus leading to a major problem, take safety

measures on the system side.

• Because the outlet pressure could exceed its set range if

there is a large fluctuation in the inlet pressure, leading to

unexpected accidents, take safety measures against abnor-

mal pressures.

• Operate the equipment within its maximum operating

pressure and set pressure range.

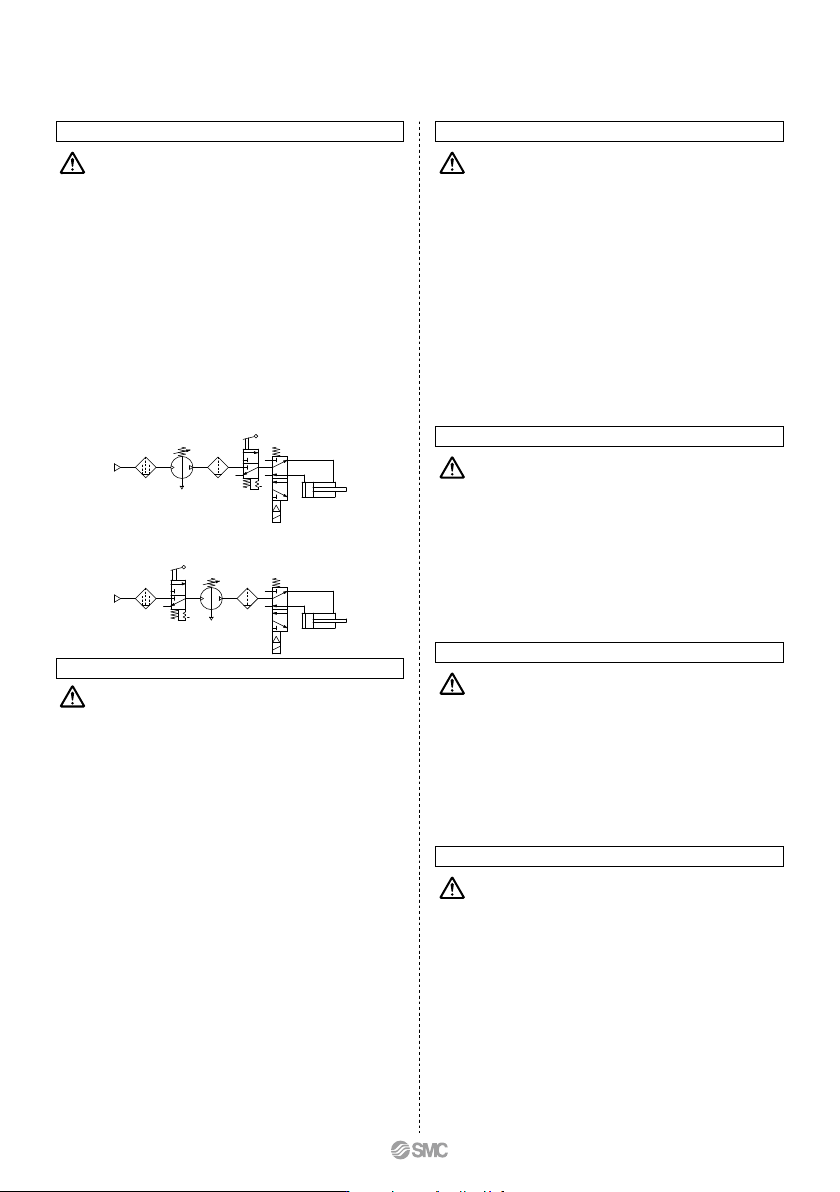

2. Residual pressure measures

• Connect a 3-port valve to the OUT side of the booster

regulator if the residual pressure must be released quickly

from the outlet pressure side for maintenance, etc. (Refer to

the diagram below.) The residual outlet pressure side

cannot be released even if the 3-port valve is connected to

the IN side because the check valve in the booster regulator

will activate.

• After operation is finished, release the supply pressure at

the inlet. This stops the booster regulator from moving

needlessly and prevents operating malfunctions.

Selection

Caution

1. Check the specifications.

• Consider the operating conditions and operate this product

within the specification range that is described in this

catalog.

2. Selection

• Based on the conditions (such as pressure, flow rate, takt

time) required for the outlet side of the booster regulator,

select the size of the booster regulator in accordance with

the selection procedures described in this catalog or model

selection program.

• Use the VBA11A (pressure increase ratio 4) with pressure

increase ratio 2 to 4. Usage of pressure increase ratio

below 2 is preferred for the VBA10A (pressure increase

ratio 2). A stable operation and increased life expectancy

will result.

• Inlet supply pressure volume is {approximately twice

(pressure increase ratio 2), approx. 4 times (pressure

increase ratio 4)} the volume of the outlet side. Booster

regulator requires the inlet side volume which is the sum of

the flow volume running into the outlet side and the volume

exhausted from E port (for driving), because air is the power

source.

• When running continuously for longer periods of time,

confirm the life expectancy. The life expectancy of a booster

regulator is dependent upon the operational cycle. Thus,

when used for driving cylinders, etc. in the outlet side, life

expectancy will be reduced.

• Make sure the outlet pressure is set 0.1 MPa or higher than

the inlet pressure. A pressure difference below 0.1 MPa

makes the operation unstable and may result in a malfunc-

tion.

Mounting

Caution

1. Transporting

• When transporting this product, hold it lengthwise with both

hands. Never hold it by the black handle that protrudes from

the center because the handle could become detached

from the body, causing the body to fall and leading to injury.

2. Installation

• Install this product so that the silver-colored tie-rods and

cover are placed horizontally. If mounted vertically, it may

result in a malfunction.

• Because the piston cycle vibration is transferred, use the

following mounting bolts (VBA1: M5; VBA2, 4: M10) and

tighten them with the specified torque (VBA1: 3 N·m; VBA2,

4: 24 N·m).

• If the transmission of vibration is not preferred, insert an

isolating rubber material before installation.

• Mount the pressure gauge with a torque of 7 to 9 N·m.

Piping

Caution

1. Flushing

• Use an air blower to flush the piping to thoroughly remove

any cutting chips, cutting oil, or debris from the piping

inside, before connecting them. If they enter the inside of

the booster regulator, they could cause the booster regula-

tor to malfunction or its durability could be affected.

2. Piping size

• To bring the booster regulator’s ability into full play, make

sure to match the piping size to the port size.

Air Supply

Caution

1. Quality of air source

• Connect a mist separator to the inlet side near the booster

regulator. If the quality of the compressed air is not

thoroughly controlled, the booster regulator could malfunc-

tion (without being able to boost) or its durability could be

affected.

• If dry air (atmospheric pressure dew point: –23°C or less) is

used, the life expectancy may be shortened because dry air

will accelerate evaporation of grease inside.

Operating Environment

Caution

1. Installation location

• Do not install this product in an area that is exposed to

rainwater or direct sunlight.

• Do not install in locations influenced by vibrations. If it must

be used in such an area due to unavoidable circumstances,

please contact SMC beforehand.

Series VBA

930

Handling

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

Pilot pressure MPa

0.1

Outlet pressure MPa (Q = 0)

SMC

HighLow

1. Setting the pressure on the handle-operated type

• If air is supplied to the product in the shipped state, the air

will be released.

Set the pressure by quickly pulling up on the governor

handle, releasing the lock, and rotating the handle in the

direction of the arrow (+).

• There is an upper and lower limit for the handle rotation. If

over-rotating the handle even after reaching to the limit, the

internal parts may be damaged. If the handle suddenly feels

heavy while being turned, stop turning the handle.

• Once the setting is completed, push the handle down and

lock it.

• To decrease the outlet pressure, after the pressure has

been set, rotate the handle in the direction of the arrow (–).

The residual air will be released from the area of the

handle, due to the relief construction of the governor.

• To reset the pressure, first reduce the pressure so that it is

lower than the desired pressure; then, set it to the desired

pressure.

Caution

2. Setting the pressure on the air-operated type

(VBA22A, 42A)

• Connect the outlet pipe of the pilot regulator for the remote

control to the pilot port (P). (Refer to the diagram below.)

• Refer to the graph below for the relationship between the

pilot pressure and outlet pressure.

• The AR20 and AW20 are recommended for the pilot regula-

tor.

Pilot regulator

• The outlet pressure is twice the pilot pressure.

• When the inlet pressure is 0.4 MPa:

Pilot pressure

0.2 MPa to 0.4 MPa

Outlet pressure

0.4 MPa to 0.8 MPa

3. Draining

• If this product is used with a large amount of drainage

accumulated in the filter, mist separator or tank, the

drainage could flow out, leading to equipment malfunction.

Therefore, drain the system once a day. If it is equipped

with an auto drain, check its operation once a day.

4. Exhaust

• Exhausting time from E port may be longer for a booster

regulator which is set to switch in longer hour intervals. This

is not an abnormal phenomenon.

5. Maintenance

• Life expectancy varies depending on the quality of air and

the operating conditions. Signs that the unit is reaching the

end of its service life include the following:

•

Constant bleed from under the handle.

•

Air exhaust noise can be heard from the booster regulator

at 10 to 20 second intervals even when there is no air

consumption on the outlet side.

Conduct maintenance earlier than scheduled in such cases.

• When maintenance is required, confirm the model and serial

number of the booster regulator, and please contact SMC

for maintenance kit.

• Conduct maintenance according to the specified mainte-

nance procedure by individuals possessing enough knowl-

edge and experiences in maintaining pneumatic equipment.

• The list of replacement parts and kit number are shown on

page 932, and the figure shows the position of the parts.
