Parts_Manual.pdf - 第103页
3162 201 Assy Handcrank Parts List Index

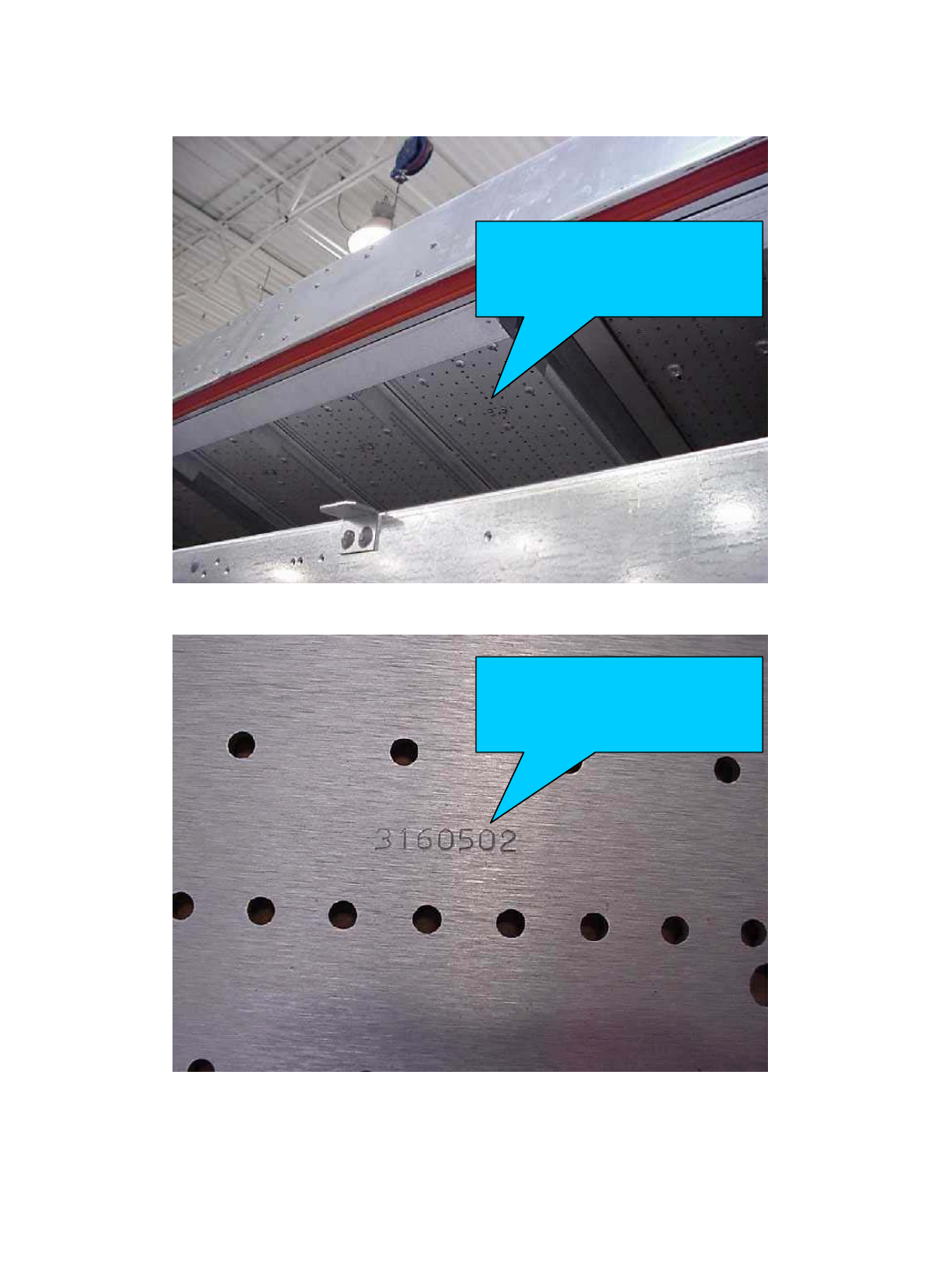

Part Number
Stamped Here
Part Number
Example
Index

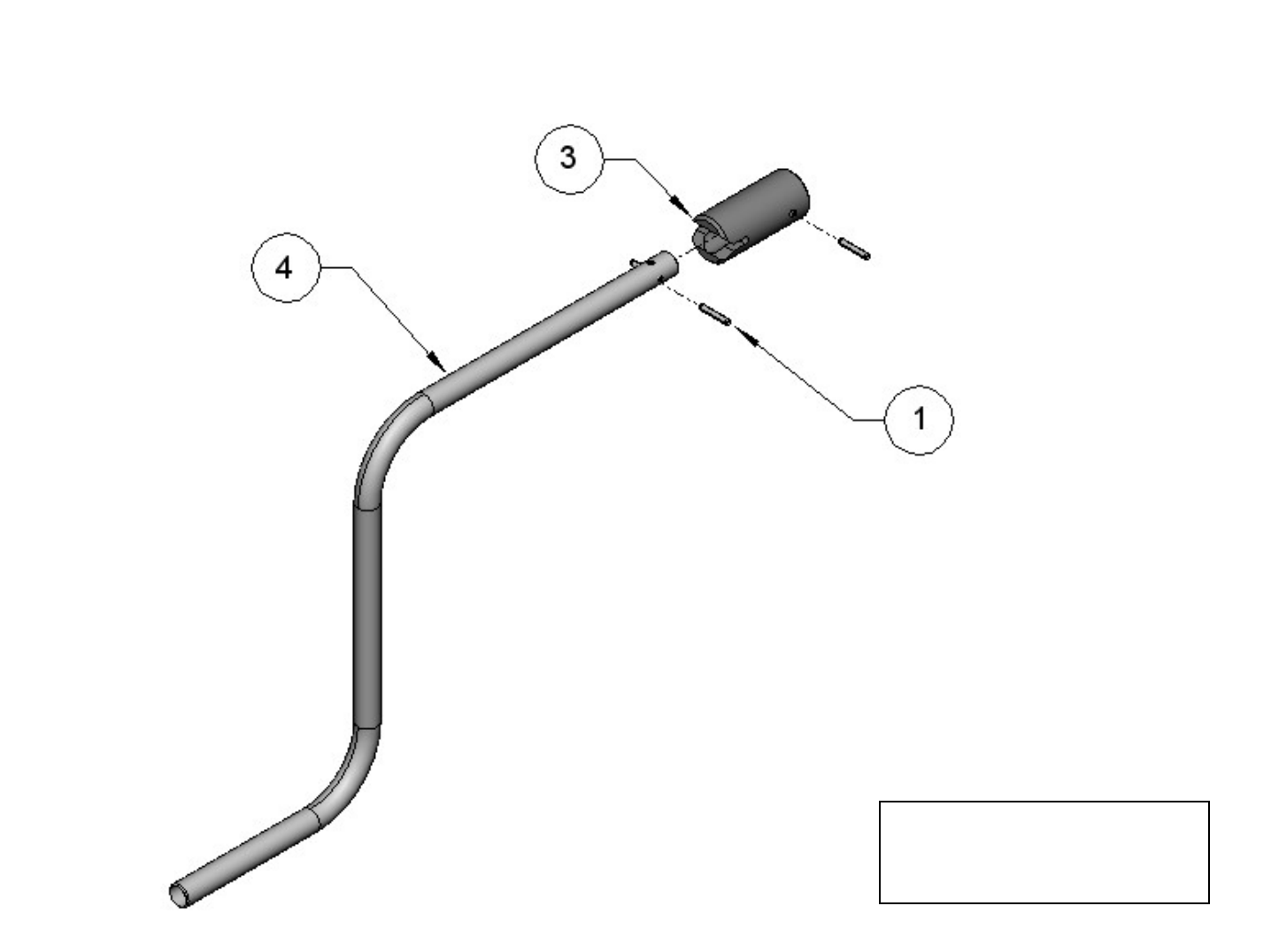

3162201
Assy Handcrank
Parts List
Index
G1
G2
A20
A1
4120301
Assy Oven Interface PCB
A5
Actuator Control Box Linak 2P 1454701
Actuator Control Box Linak 3P 1454702
T5
T6
V5
Inverter Varispeed
3HP - 1451401
5HP - 1451402
7.5HP - 1383003
V5X
Inverter Varispeed
3HP - 1451401
V2
F41-44
K17
A200
K37-38
K24 K8
V1
F54&58
F55
F67-69
K35-36
F33-39
P1
T6X
F33/36 1466216
Fuse 5 x 20mm 6A
1434903
Filter Electrical 3ph 24A
1358201
Meter Hour LCD 120V
AI -3142001
Assy VCS AI Board w/IOV Output
A200
K37-38
K24 K8
1311609
Relay 24VDC 2NO 2NC
1317201
Contactor Mini 120V 3NO&1NO Aux
1311608
Relay 24VDC 3NO 1NC
1435102
Filter Electrical Reactor 25A
1435104
Filter Electrical Reactor 2A
1487901
Power Supply 24V@2.5A
1487801
Power Supply 5V@4A +/-15V
1426002
IAS 32IN NW32HL 120V K 300 650
K35 1451803 Relay 2P2D 6A 120V
K36 1451801 Relay 2P2D 6A 24VDC
1311603
Relay 120V 2NO 2NC
1384110
CB 1P 277V LG Delay 10A
1384103
CB 1P 277V LG DELAY 3A
1117601
Control 1/20-1/8 90VDC Brush Mtr w/Isolation
1384315
CB 3P 480V LG Delay 15A
1117601
Control 1/20-1/8 90VDC Brush Mtr w/Isolation
1467802
Controller PLC GE Versamax
DI -3143001
Assy VCS DI 512K EProm
F39 1466207
Fuse 5 x 20mm 0.5A
Electrical Subpanel (Left Half)
Replaceable Components
A1 Board Relays
1449801
Relay 10A SPDT, 24VDC
1449901
Relay 10A DPDT, 24VDC
1450001
RELAY 1.25A, DPDT, 24VDC COIL
K4
1451801
Relay 2P2D 6A 24VDC
K4
Release Date: April 22, 2004
Index
