Illustrated Parts Manual XPM 2 Blank Page for Future Use
Balloon Quantity Part Number REV DESCRIPTION UM
1.00 0956601 SHFT .50 DIA X 29.56 SST EA
2.00 1103000 WASHER #10 18-8 SPLIT LOCK SST EA
2.00 1103200 WSHR 10 FL SST EA
2.00 1171503 SCR 10-32 X .375 BTNH SKT SST EA
2.00 6102401 BRKT XCS GANTRY SHAFT XPM2 EA
1.00 6104401 PLATE WEAR XCS GANTRY XPM2 EA
BOM NUMBER
3182701
A
SSY GANTRY XCS XPM2
DESCRIPTION
DATE
SHEET
1
REV
A
/ 1
24-Feb-2004
Sort Column = POS
RETURN TO INDEX
3182701
A
4182701
DRAWING NUMBER
REV
A
BCR TYPE
CUR
Illustrated Parts Manual XPM
2
Blank Page for Future Use

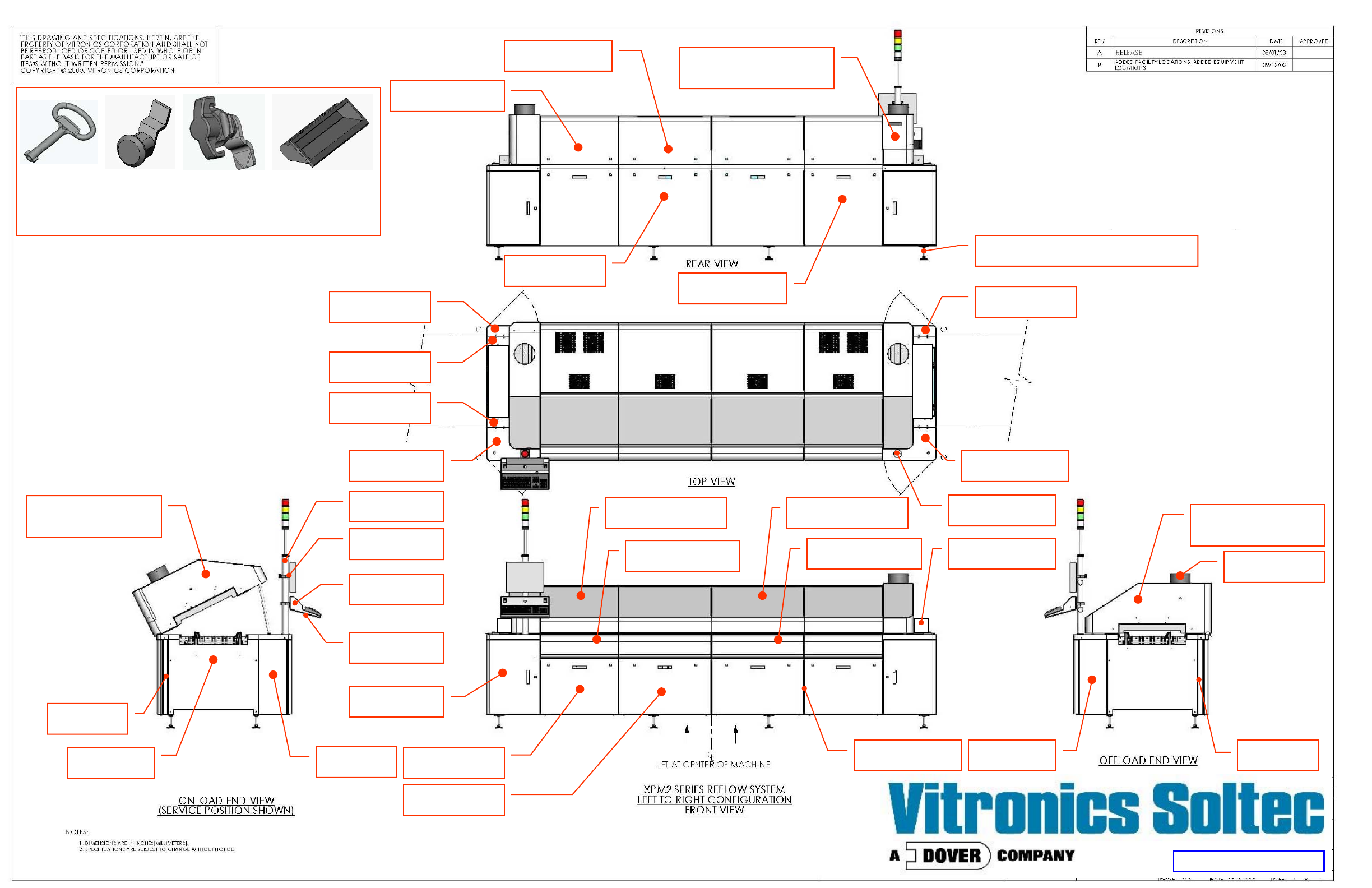

Cvr Lwr Front
6077001 (L)
PC Arm Tray
6096001
Door Lwr End
6077201
Bonnet End Left
6079201 (no filter door)
6091601 (w/stack filter)
Pole PC Arm
6079301
Door Enclsr End
6021401
Cvr Lower End
6078301
Door Enclsr Mid
6021501
Cover PC Tray
6096101
Plt Mont-K/B Mtg
6090801
Bonnet End Right
6079202 (no filter door)
6091602 (w/stack filter)
Cvr Lwr Rear
6078201 (L)
Mid Skin Front 36.0
6077803
Mid Skin Front 30.5
6077801
Door Exh Stack Filter
6091801 Left
6091802 Right (not shown)
Cvr Mid Skin End
6077401 (L)
Bonnet Upr Rear End
6100401
Bonnet Upr Rear Mid
6100301
Chimney Bonnet
0756001
Cvr Mid Skin Rear
6078101 (L)
Stanchion Enclosure
6024301
Fender Deckplate
6078401 (L)
Cover PC Arm Hole
6090401
Cvr Lwr Rear
6078202 (R)
Cvr Lwr Front
6077002 (R)
Bonnet Upr Front End
6020001
Door Lwr Rear Mid
6078802
3158101 Assy Leveling Foot (3/4” Dia Thread)
3158102 Assy Leveling Foot (1” Dia Thread)
Cvr Mid Skin Rear
6078102 (R)
Cvr Mid Skin End
6077402 (R)
Door Lwr Rear End
6078801
Lock 1/4 turn
Wingknob
1484301
Bonnet Upr Front Mid
6020101
Lock 1/4 turn
Ekma Short
1453201
Handle LG
Flush Mount
1452704
Cover On/Offload CE
6083601
Fender Deckplate
6078402 (R)
Key 1/4 turn
Ekma
1453201
Release Date: April 12, 2004
