2-5 AJQEPED-ID 0606-005 Layout of Sensors and Loads Component Recognition Camera Symbol Name Symbol Name -B61 Component Recognition Camera Layout of Sensors and Loads Component Recognition Camera

100%1 / 169
2-4
AJQEPED-ID
0606-005

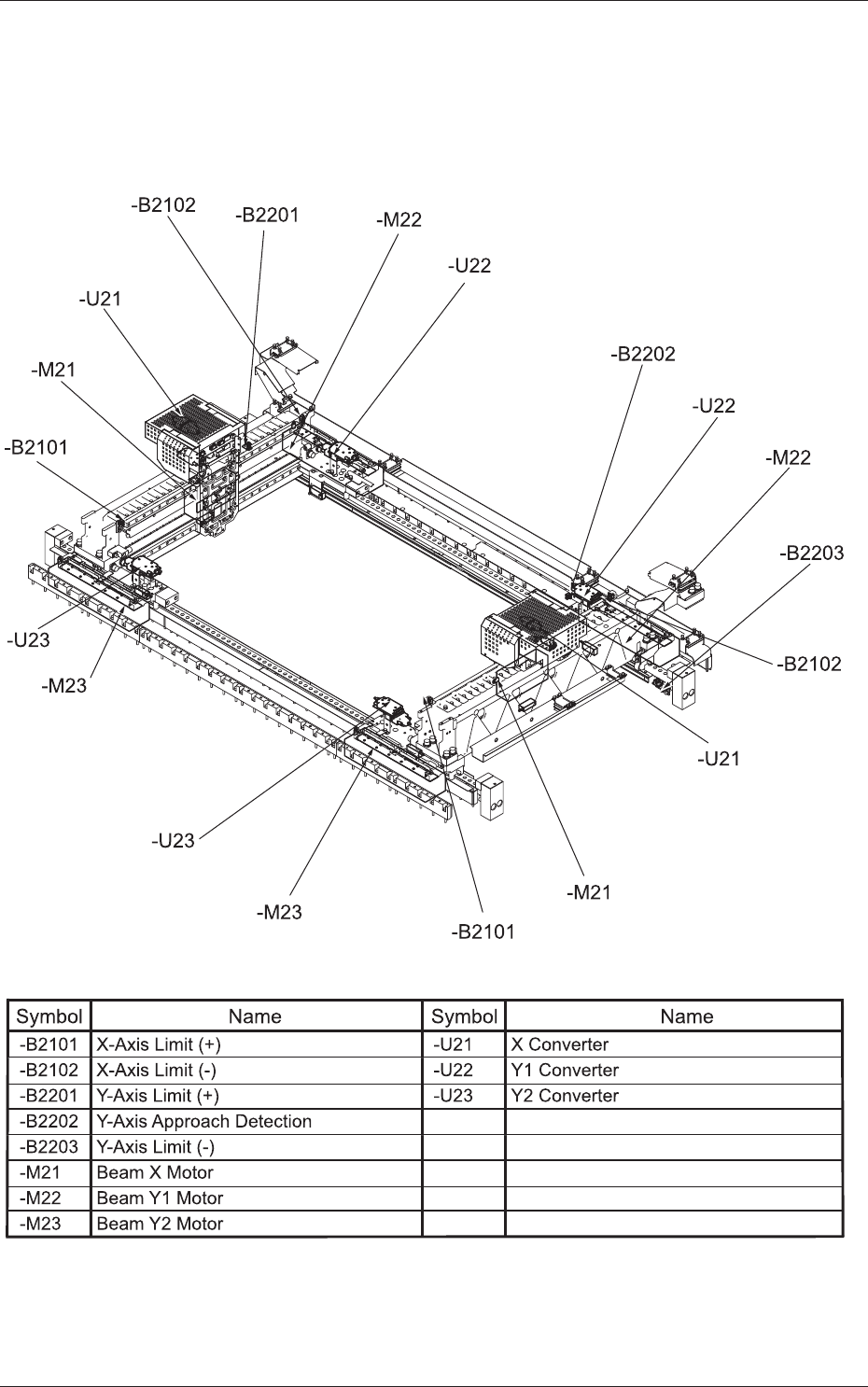

Layout of Sensors and Loads Beams
Layout of Sensors and Loads Beams
2-5
AJQEPED-ID
0606-005
Layout of Sensors and Loads
Component Recognition Camera
Symbol Name Symbol Name
-B61 Component Recognition Camera
Layout of Sensors and Loads Component Recognition Camera
2-6
AJQEPED-ID
0606-005
Layout of Sensors and Loads Cutter
-B6301
-M63
-B6302
-B6301
-M63
-B6302
Symbol Name Symbol Name
-B6301 Cutter Origin (+)
-B6302 Cutter Origin (-)
-M63 Cutter Motor
Layout of Sensors and Loads Cutter
