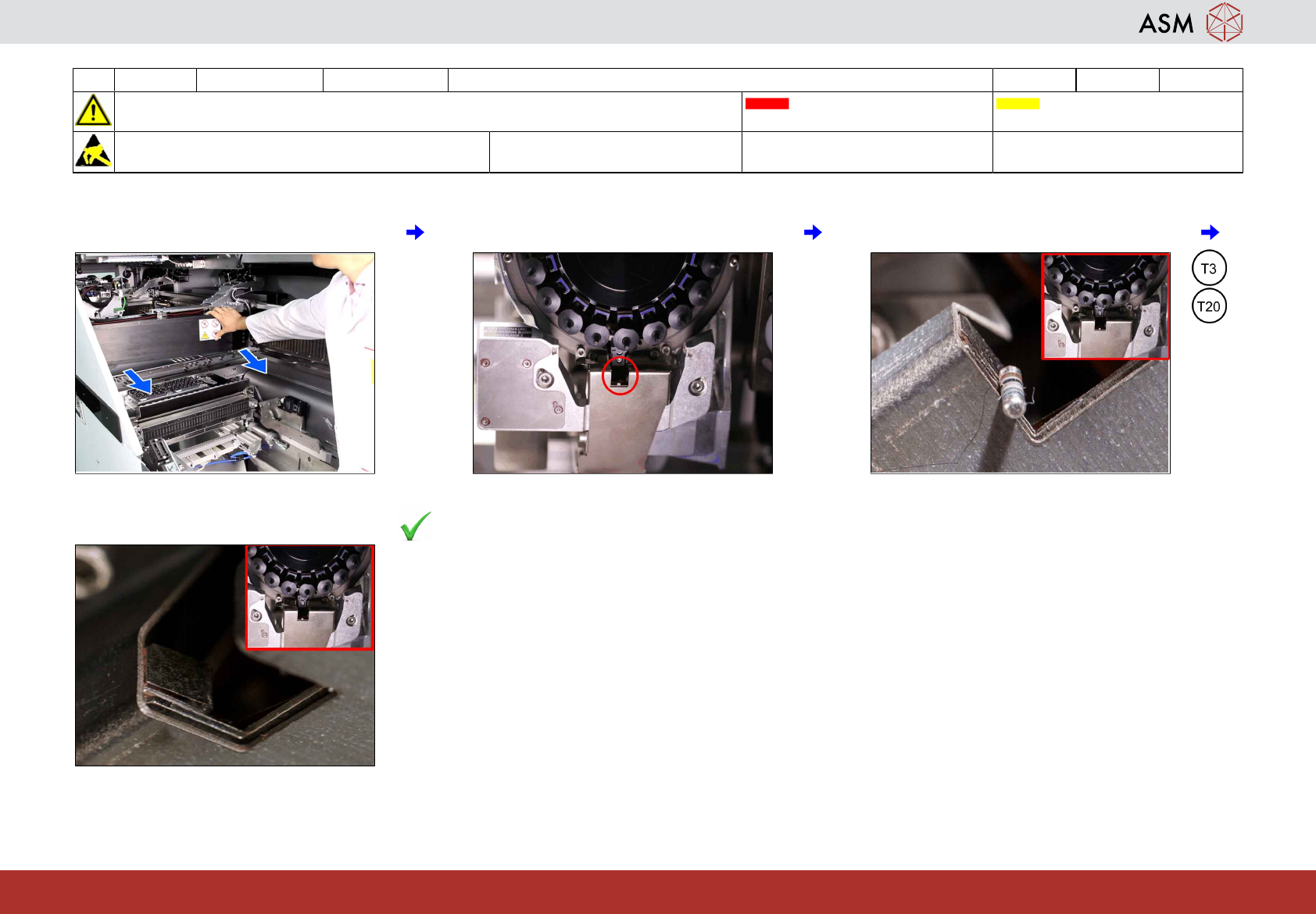

7 WF 4 TX-Series Maintenance Cleaning the Z-Axis C&P20 P 2 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T3, T20
Wear Part: Consumables:
www.asm-smt.com
1 Move the gantries to the outside end limit. 2 Area of the head to be cleaned. 3 Remove any components from Z-Axis.
4 If OK → next job.
www.asm-smt.com
8 WF 4 TX-Series Maintenance Grease the guide bearing, clean the linear guide and scale of the Y-Axis 5 min 1 / 4
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status OFF Conveyor Empty
NOTICE! ESD guidelines are to be followed Tool:
T89
Wear Part: Consumables:
C3, C5, C49
www.asm-smt.com
1 Pull back the plunger to the lock. 2 Unscrew the top section. 3 Prepare the grease cartridge (if required).
4 Insert the grease cartridge into the grease
gun (if required).
5 Close the grease gun. 6 Mount the hose with hydraulic mouthpiece
Y-Axis.
