Service Ma nual W PC5 / WPC6 3.4.2 Replace the Feed Axis Drive Motor Spare Part: When replacing the dr ive motors of the W PC5 and W PC 6, it is, wit h immediate ef fect, necessary to take note of t he version / item num…
Service Manual WPC5 / WPC6
3.4 Drive Unit – Feed Axis
3.4.1 Preparations
Tools Required
• Water pump pliers
• Standard tool with set of Allen wrenches
• Setting gauge, large, for crash light barrier [03051814-01]
• Setting gauge, small [03052363-02]
• Belt tension measuring device [00326015-01] with instruction guide
Prerequisite
• Move the tower into the refill position.
• Remove all waffle pack tray carriers (WPTCs) from the tower.
• Move the tower downwards.
• Switch the WPC off at the main switch.
• Unplug from the power supply and secure the WPC to prevent unauthorized reactivation.
• Undock the WPC from the SIPLACE machine and move it to a suitable position for service
work.
• Remove the jumper cover.
• Remove the feed axis cover.

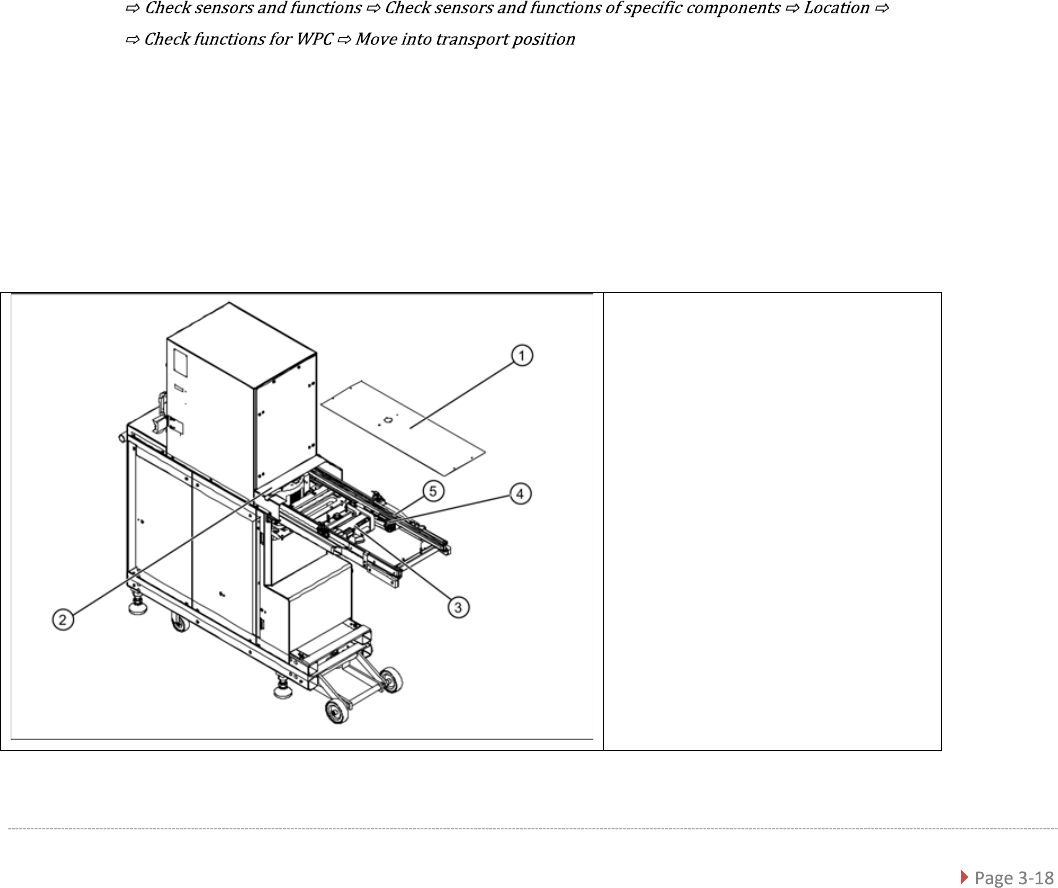

Overview
(1) Feed axis cover
(2) Bridge cover (hand guard on
tower)
(3) Feed axis drive motor
(4) Toothed belt for the drive
(5)
Feed axis toothed belt
Service Manual WPC5 / WPC6
3.4.2 Replace the Feed Axis Drive Motor
Spare Part:
When replacing the drive motors of the WPC5 and WPC 6, it is, with immediate effect,
necessary to take note of the version / item number of the motor, as the successors are not
100% compatible.
Because it is not permitted to install a mixture of new motors in a WPC, the old drives continue
to be available as replacements!
As a result of this incompatibility, the version of the entire WPC was changed when the new
drives were introduced.
Overview
(1) Feed axis motor, compl.
(2) Tensioning screw
(3) 2 x motor support fastening
screws
(4) Toothed belt for the drive
(5) Deflection pulley
(6) 4 x drive motor fastening screws
(7)
Electrical connections
WPC – Type / Version Spare Part – Name Part No.
„WPC5 900-950mm / Standard“
[03067619-03]
"Servo motor 1FK7022-5AK71-
1AH3-Z S52"
[03159574-xx]
„WPC6 900-950mm“
[03067618-03]
„WPC5 900-950mm / Standard“
[03067619-04]
“ Servo motor 1FK7022-5AK74-
1AH3-Z + S52”
[03161141-xx]
„WPC6 900-950mm“
[03067618-04]
Service Manual WPC5 / WPC6
NOTE
At the rear of the control module on WPCs with new motors, a jumper must be fitted to
connector X29ag (changed motors) in addition to jumper X28ag (detection of 45 mm
component height).
Additional Information
The incompatibilities relate to the temperature sensors on the motors.
Minimum Firmware version 40A (WPCHNG_0051040A.BHX) is required to operate the new
motors in the WPC5 / WPC6.
Firmware Version 40A is available as of station software SIRIO 710.0.
If a "WPC5 900-950mm / Standard" [03067619-04], or a "WPC6 900-950mm" [03067618-04]
with new motors is to be fitted to a SIPLACE placement machine with a version of the SIRIO
software < 710.0, you should note the following:
- Any prompt by the station software to download the WPC firmware must be ignored.
- The station software must be upgraded to a version ≥ 710.0.
- If an earlier version of the WPC firmware is (inadvertently) downloaded, the WPC stops and
a temperature error message is issued.
Removal / Installation
➢ Unscrew the electrical connections (7).
⇨
X1 orange cable = power cable
⇨
X2 green cable = control cable
NOTICE
Screw joints difficult to loosen
Each screw joint has an O-ring seal. This can make opening the screw joint difficult.
Use a pair of water pump pliers to help you unscrew the connection.
Make sure that the O-rings do not fall out of the screw joint and that they are not damaged.
When refitting, grease the thread and the O-rings with a little Vaseline.
