E s p a ñ o l 10 Desoldering Ir on Ref. DR560-A English 2 Page INSTRUCTION MANUAL w w w . jbct ools. com
Español 10
Desoldering Iron
Ref. DR560-A
English 2
Page
INSTRUCTION MANUAL
www.jbctools.com

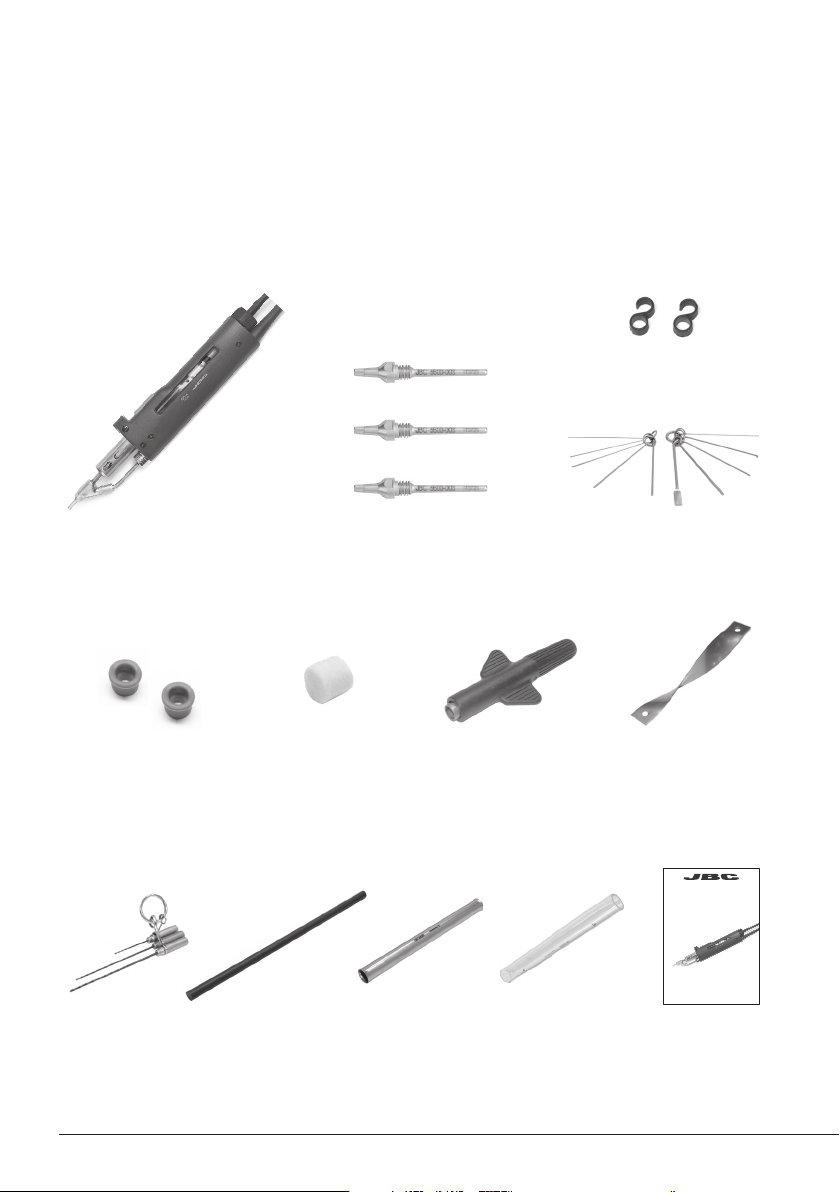

Packing List
Ref. DR560
Desoldering Iron
Tips ................................. 3 units
Ref. C560005* (x1)
Ref. C560013* (x1)
Ref. C560004* (x1)
Desoldering Iron .......... 1 unit
Ref. DR560-A
C560003 already inserted
The following items should be included:
Union flanges .......... 1 unidad
Ref. 0 0113 5 6
Tip cleaning set ............ 1 unit
Ref. 0965970*
Internal gasket .... 1 u.
Ref. 0019208*
It contains 2 gaskets
Filter box .............. 1 u.
Ref. 0780840
It contains 10 filters
Spanner ............. 1 unit
Ref. 0780550*
Spiral Filter .......... 1 u.
Ref. 0812330*
Long tip cleaning
set .................. 1 u.
Ref. 0965760*
Cleaning
stick .............. 1 u.
Ref. 0786640
Metal Solder
Collector .... 1 u.
Ref. 0812630*
Glass Solder
Collector ..... 1 u.
Ref. 0812620*
Manual ......... 1 u.
Ref. 0008867
*DR560-A Desoldering Iron accessories included in the Ref. 0010261
2
www.jbctools.com

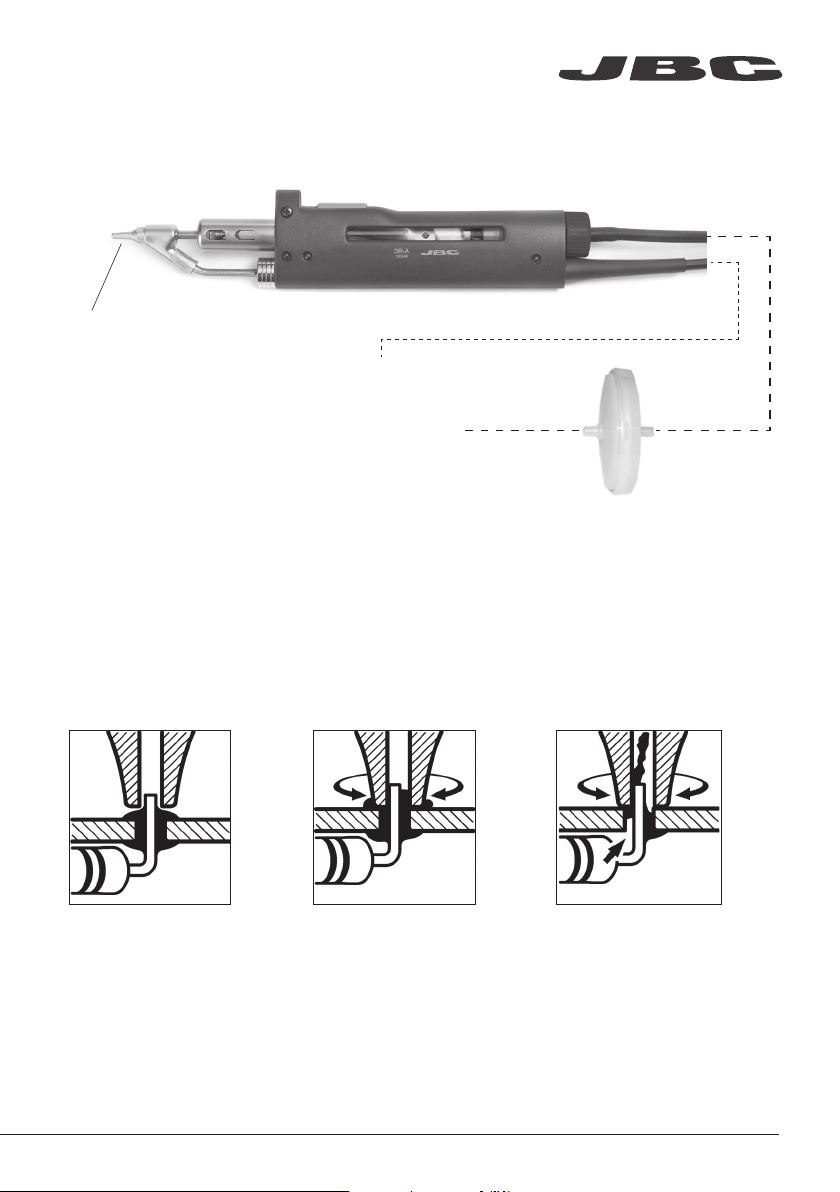

Connection
Desoldering Iron
Ref. DR560-A
Tip
Ref. C560003
to desoldering module
to stand
Suction Filter
Ref. 0821830
Supplied with desoldering module
Desoldering process
Use a tip with a larger diameter than the pad to achieve maximum aspiration and thermal efficiency.
Place the tip with the
component terminal in
the hole.
After pressing the desoldering key there is a slight delay until the self-contained vacuum pump
stops. This makes sure that the vacuum circuit is completely empty. If any solder remains are left
on a terminal after desoldering it, resolder it with fresh solder and repeat the desoldering operation.
When the solder liquefies,
gently rotate the tip so
that the compo nent
terminal can be lifted off.
Press the vacuum pump
button long enough to
remove the solder.
3. Aspirating1. Placing 2. Rotating
www.jbctools.com
3
