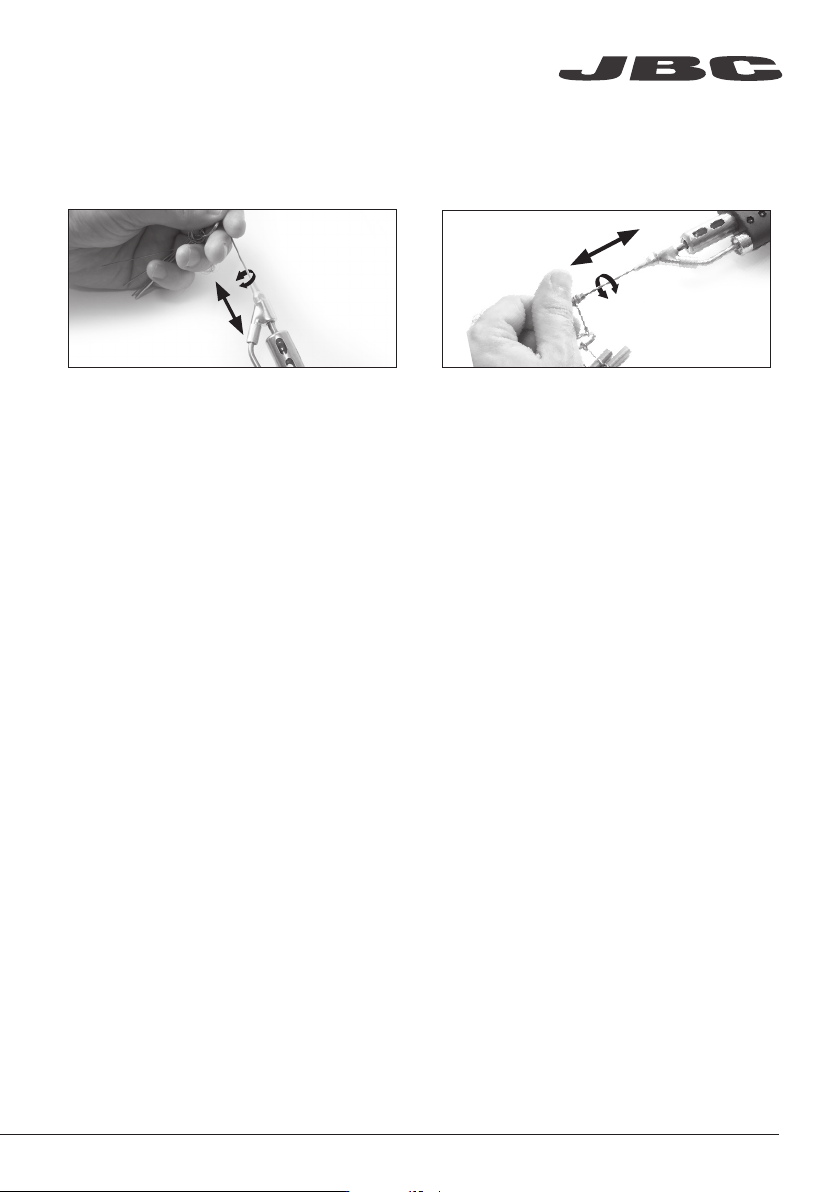

Glass Solder Collector Cleaning
1. Removing the lid
3. Inserting the glass solder collector
Check filter
Lid
Check
internal joint
2. Cleaning
Check the filter and replace it if it is dirty or
damaged.
Remove the coil and clean the inside of the glass
solder collector with the cleaning stick.
The lid must be unscrewed with the DR560 in a
vertical position.
The glass solder collector must be inserted
with coil filter in place, positioned between the
2 lines marked.
Then the whole unit must be closed by
screwing the lid.
Marks
6
Maintenance
Before carrying out maintenance or storage, always unplug the tool.
- Check periodically that the metal parts are clean to ensure it is detected when on the stand.
Always use a damp cloth or alcohol.
- Periodically check all cables and tubes connections.
- Replace any defective or damaged pieces. Use original JBC spare parts only.
- Repairs should only be performed by a JBC authorized technical service.
The intake tube should be periodically cleaned by the largest rod.
Tip Care
Important
DO NOT press the vacuum pump button while tinning the desoldering tip, as the fumes given off
by the flux would quickly block the ducts and the air filter.
www.jbctools.com
7
It is imperative to follow safety guidelines to protect health and prevent electric
shock, injury, fire or explosions.
Safety
- Do not use the tool for any purpose other than soldering or rework. Incorrect use may cause fire.
- The mains cable must be plugged into approved bases. Make sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.
- The temperature of accessible surfaces may remain high after the unit is turned off.
Handle with care.
- Do not leave the appliance unattended when it is on.
- It is necessary to turn the station off before changing tips.
- Heat can cause inflamable products to ignite even when out of sight.
- Be careful with the remains of liquid tin. In contact with skin, it can cause burns.
- Avoid flux coming into contact with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when
working to avoid personal harm.
- This appliance can be used by children over the age of eight as well as persons with reduced
physical, sensory or mental capabilities or lacking of experience provided that they have been
given adequate supervision or instruction concerning use of the appliance and understand the
hazards involved. Children must not play with the appliance.
- Maintenance must not be carried out by children unless supervised.
8
