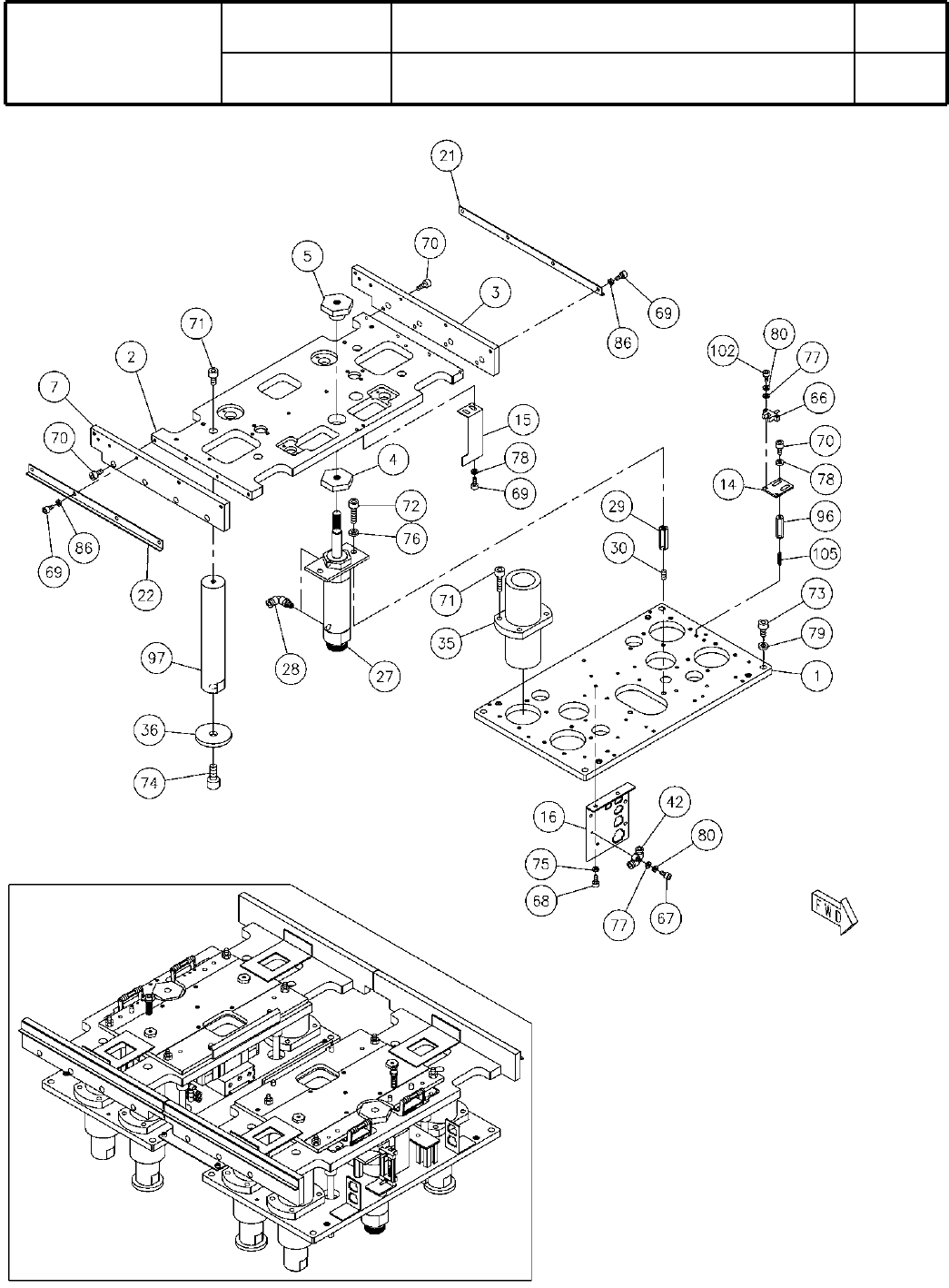

17-A 基 板 ホルダデュア ル対応:NPM Bo ard H old er For D ual :NP M パーツレイアウト Ki t N o . キット 品番 Kit N am e キット名称 N6 1009 341 2AA ｾｸｼｮﾝNo. PARTS LAYOUT Section No. - - O119 ( KN610093412AA-04-1 )
Ref
No.
Remarks
R
1
Q'ty
16-Q
デュアルコンベア:NPM
Dual Conveyor:NPM
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610093918AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
BRACKET
2
37 N210121480AA
DUCT
1
52 N210116156AC
CAM-FOLLOWER
9
78 N510043608AA U-AS4-79
NUT
1
88 N510048038AA NSMT-04-4
SPACER
4
91 N510019918AA CF-406E
FIBER
2
103 N510039140AB CFT0208
FIBER
1
104 N510040164AB CFT0209
SENSOR
1
109 N610098146AA
BOLT
11
114 N510017337AA
Hexagon socket head cap screw M3X6-10.9 A2J (Trivalent)
BOLT
8
115 N510017341AA
Hexagon socket head cap screw M3X8-10.9 A2J (Trivalent)
BOLT
4
122 N510017351AA
Hexagon socket head cap screw M4X16-10.9 A2J (Trivalent)
WASHER
3
129 N510018494AA
Round finish plain washer 3 10H A2J (Trivalent)
WASHER
4
130 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
7
133 N510018478AA
Small round-plain washer 3 10H A2J (Trivalent)
WASHER
8
141 N510018327AA Spring lock washer No.2 3 S A2J (Trivalent)
T-BELT
1
156 N510050718AA SE-G30-SBUK 4.5WX1980LX0.65T
O118
--
( KN610093918AA-05-17 )
17-A
基
板
ホルダデュアル対応:NPM
Board Holder For Dual:NPM
パーツレイアウト
Ki
t
N
o
.
キット
品番
Kit Name
キット名称
N610093412AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
O119
( KN610093412AA-04-1 )
Ref
No.
Remarks
R
1
Q'ty
17-A
基
板
ホルダデュアル対応:NPM
Board Holder For Dual:NPM
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610093412AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
PLATE
1
1 N210124259AB
PLATE
1
2 N210124261AB
PLATE
1
3 N210122002AC
CYL-NUT
1
4 N210113758AA
CYL-NUT
1
5 N210122004AA
PLATE
1
7 N210122003AC
PLATE
1
14 N210125619AA
DOG
1
15 N210125543AA
BRACKET
1
16 N210116006AB
GUIDE
1
21 N210122015AA
GUIDE
1
22 N210122016AA
CYLINDER
1
27 N510048152AA CM2F32-50
JOINT
2
28 KXF0DYW0A00 KQ2L06-01S
SPACER
2
29 N510038214AA ASF-630E
SCREW
2
30 XXE6D20FT
Hexagon socket set screw Cup point M6X20-45H SOB
LINEAR-BUSH
4
35 N510048236AA LMHC30LUU
WASHER
2
36 N510051843AA 87FWSSB-D46-V10.0-T5.0
JOINT
1
42 KXF0E1J6A00 KJL06-00
SENSOR
1
66 N510049698AA EE-SX910-C2J-R 0.2M
BOLT
1
67 N510017313AA
Hexagon socket head cap screw M3X16-10.9 A2J (Trivalent)
BOLT
2
68 N510017381AA
Hexagon socket head cap screw M4X8-10.9 A2J (Trivalent)
BOLT
10
69 N510017344AA
Hexagon socket head cap screw M4X10-10.9 A2J (Trivalent)
BOLT
10
70 N510017346AA
Hexagon socket head cap screw M4X12-10.9 A2J (Trivalent)
BOLT
20
71 N510017428AA
Hexagon socket head cap screw M6X12-10.9 A2J (Trivalent)
BOLT
2
72 N510017433AA
Hexagon socket head cap screw M6X16-10.9 A2J (Trivalent)
BOLT
4
73 N510017435AA
Hexagon socket head cap screw M6X20-10.9 A2J (Trivalent)
BOLT
2
74 N510017166AA
Hexagon socket head cap screw M10X25-10.9 A2J (Trivalent)
WASHER
2
75 N510018497AA
Round finish plain washer 4 10H A2J (Trivalent)
WASHER
2
76 N510018501AA
Round finish plain washer 6 10H A2J (Trivalent)
WASHER
3
77 N510018478AA
Small round-plain washer 3 10H A2J (Trivalent)
WASHER
4
78 N510020099AA Thick washer M4
WASHER
4
79 N510020101AA Thick washer M6
WASHER
3
80 N510018327AA Spring lock washer No.2 3 S A2J (Trivalent)
WASHER
8
86 N510018479AA
Small round-plain washer 4 10H A2J (Trivalent)
SPACER
2
96 N510020913AA ASF-455E
SHAFT
4
97 N510051414AA SF30163M10B
BOLT
2
102 N510017305AA
Hexagon socket head cap screw M3X10-10.9 A2J (Trivalent)
SCREW
2
105 XXE4D16FT
Hexagon socket set screw Cup point M3X25-45H SOB
